1×2 1310/1550nm Polarization Maintaining Opto-Mechanical Bidi Optical Switch

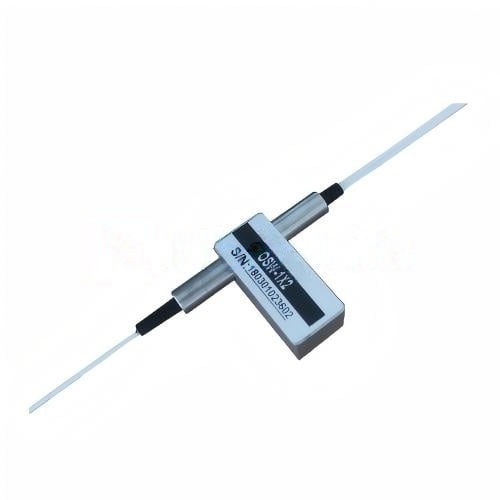

FiberLife 1×2 1310/1550nm Polarization Maintaining Opto-Mechanical Bidi Optical Switch is a high-performance optical switch designed for high-precision optical communications and fiber test systems. It adopts an optomechanical switching structure and combines it with a polarization-maintaining fiber design to achieve bidirectional switching of 1310nm or 1550nm wavelength optical signals while maintaining a stable polarization state. This product has low insertion loss, high isolation, fast switching, and excellent reliability. It is widely used in fiber optic sensing, quantum communication, automated test platforms, and other application scenarios that have strict requirements on polarization states.
$395.00
1×2 1310/1550nm Polarization Maintaining Opto-Mechanical Bidi Optical Switch
FiberLife 1×2 1310/1550nm Polarization Maintaining Opto-Mechanical Bidi Optical Switch is a high-performance optical switch designed for high-precision optical communications and fiber test systems. It adopts an optomechanical switching structure and combines it with a polarization-maintaining fiber design to achieve bidirectional switching of 1310nm or 1550nm wavelength optical signals while maintaining a stable polarization state. This product has low insertion loss, high isolation, fast switching, and excellent reliability. It is widely used in fiber optic sensing, quantum communication, automated test platforms, and other application scenarios that have strict requirements on polarization states.
Specifications
| Parameter | Value | |
|---|---|---|
| Wavelength Range | 650nm ~ 1310nm | 1260nm ~ 1670nm |
| Test Wavelength | 650/780/850/980/1064/1310nm | 1310/1490/1550/1625/1650nm |
| Insertion Loss | Typ: 0.8dB, Max: 1.2dB | Typ: 0.8dB, Max: 1.0dB |
| Return Loss | ≥30dB | ≥50dB |
| Crosstalk | ≥35dB | ≥50dB |
| Extinction Ratio | >18dB | |
| Polarization Dependent Loss | ≤0.05dB | |
| Wavelength Dependent Loss | ≤0.25dB | |
| Temperature Dependent Loss | ≤0.25dB | |
| Repeatability | ≤0.02dB | |
| Power Supply | 3V or 5V | |
| Lifetime | ≥10⁷ Times | |
| Switch Time | ≤8ms | |
| Transmission Power | ≤500mW | |
| Operating Temperature | -40°C ~ +85°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Weight | 16g | |
| Dimension (L×W×H) | 27.0mm × 12.0mm × 8.2mm | |
Electric
| Specifications | Voltage | Current | Resistance |
| 5V Latching | 4.5 ~ 5.5 | 36 ~ 44mA | 125Ω |
| 5V Non-Latching | 4.5 ~ 5.5 | 26 ~ 32mA | 175Ω |
| 3V Latching | 2.7 ~ 3.3 | 54 ~ 66mA | 50Ω |
| 3V Non-Latching | 2.7 ~ 3.3 | 39 ~ 47mA | 70Ω |
Pins
| Type | Pin | Electric Drive | Status Sensor | ||||||
| 1×2 | Pin1 | Pin5 | Pin6 | Pin10 | Pin3-4 | Pin7-8 | Pin2-3 | Pin8-9 | |
| Latching | P1-/-P2 | — | — | GND | +5V | Open | Open | Close | Close |
| P1—P2 | +5V | GND | — | — | Close | Close | Open | Open | |
| Non-latching | P1-/-P2 | — | — | — | — | Open | Open | Close | Close |
| P1—P2 | +5V | — | — | GND | Close | Close | Open | Open | |

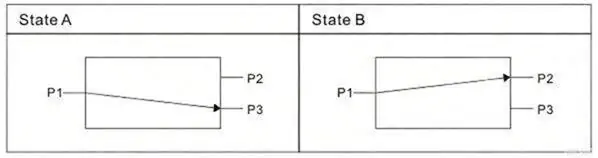

Optical Route

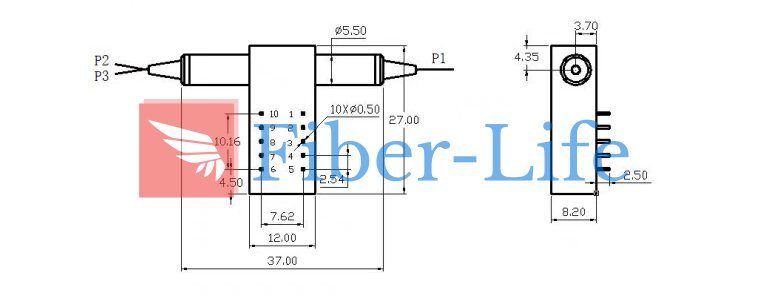

Dimension Drawing (Unit: mm)
Related Products
The 1×1 780nm Polarization Maintaining (PM) Opto-Mechanical Bi-Directional Optical Switch is a high-precision fiber optic switch designed for applications requiring stable polarization state transmission at a 780nm wavelength. It utilizes an opto-mechanical switching mechanism to control bidirectional optical signal transmission between a single input and output port, ensuring low insertion loss and high reliability. The PM feature preserves the polarization state during switching, making it ideal for applications such as quantum optics, atomic physics experiments, fiber optic sensing, and precision optical testing.
The 1×1 1310/1550nm Polarization-Maintaining (PM) Opto-Mechanical Bi-Directional Optical Switch is a high-performance fiber optic switch designed for applications requiring polarization state preservation. It utilizes an opto-mechanical switching mechanism to enable bidirectional transmission of optical signals at a 1310nm or 1550nm wavelength between a single input and output port, offering low insertion loss and high reliability. The PM feature ensures that the polarization state remains unchanged during switching, making it ideal for high-precision polarization-sensitive applications such as fiber optic gyroscopes (FOG), fiber optic sensing, optical communication system protection, and laboratory optical testing.
The D1x2 Opto-Mechanical Bi-Directional Fiber Optic Switch connects optical channels by redirecting two incoming optical signals into four output fibers. This is achieved through an opto-mechanical configuration, activated via an electrical control signal. The switch features integrated electrical position sensors for precise operation.
FiberLife’s 1×32 1550nm Polarization Maintaining Optical Switch Module is designed for high-performance optical routing applications where preserving the polarization state of light is critical. This module allows one input optical signal to be switched to any of the 32 output channels while maintaining the input polarization, thanks to its use of PM Panda fiber. Operating at the 1550nm wavelength, it features ultra-low insertion loss, high channel isolation, and excellent reliability. Controlled electrically (TTL, RS232, or RS485), the switch is ideal for integration into automated optical test systems, quantum communication setups, fiber sensing networks, and optical circuit protection systems. Compact, cost-effective, and highly stable, it is a perfect fit for both lab and field environments where precise polarization control is required.
