1×2 Opto-Mechanical Bidi Optical Switch
High-performance 1×2 Opto-Mechanical Fiber Optical Switch with low insertion loss, fast switching, and high reliability. Available in 850/1310/1550nm/1650nm, our switches support customizable length, diameter, and connector types for single-mode and multimode fibers.
$80.00

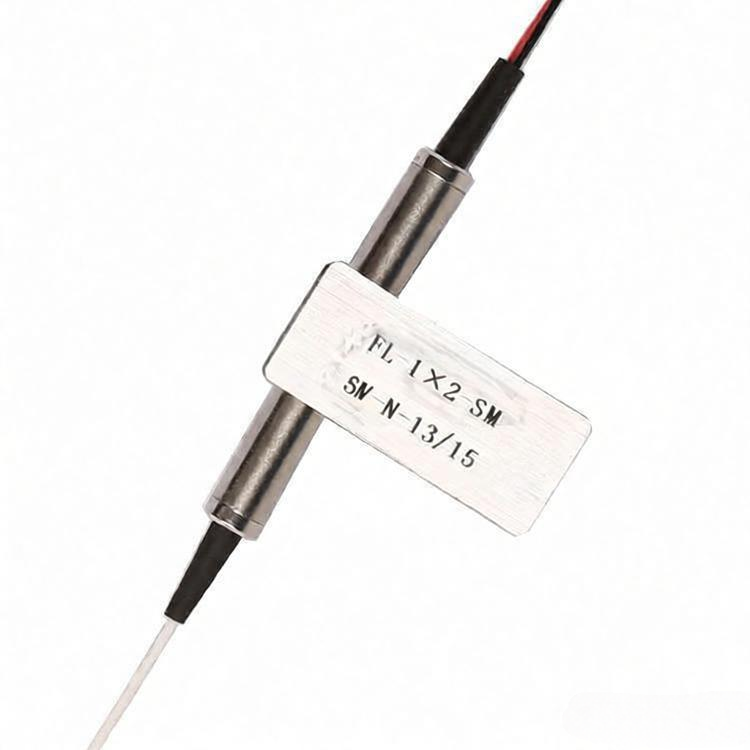

1×2 Mini Opto-Mechanical Bidi Optical Switch
The 1×2 Opto-Mechanical Bi-Directional Fiber Optical Switch is designed to connect optical channels by redirecting one incoming optical signal into two output fibers. It operates using an opto-mechanical configuration and is activated through an electrical control signal. To ensure precise operation, the switch is equipped with integrated electrical position sensors, allowing for accurate control and reliable performance. Built on thin-film filter technology, this switch provides a robust and efficient method for altering the light path. Its simplified platform configuration enhances stability while significantly reducing production costs. The innovative design minimizes the sensitivity of moving parts, ensuring exceptional reliability and long-term stability. With its low insertion loss, fast switching time, and compact structure, this switch is ideal for a wide range of fiber optic applications.
FiberLife offers high-performance and cost-effective Opto-Mechanical 1×2 Fiber Optical Switches. Each unit undergoes rigorous in-house testing before shipment to guarantee optimal physical and working condition upon delivery. In addition to the 1×2 configuration, we provide a variety of options, including 1×1, 1×4, 1×8, 2×2, 2x2A, 2x2B, and 2x2BA, as well as Dual 2×2 and Dual 2×2 Bypass configurations. These switches are available for both single-mode and multimode fiber applications, catering to diverse networking needs.
For more details about our Opto-Mechanical Fiber Optic Switches, feel free to contact us at sales@FiberLife.net.
Specifications
| Parameter | MMF | SMF |
|---|---|---|
| Wavelength Range | 850±40nm | 1260 ~ 1650nm |
| Test Wavelength | 850nm | 1310/1490/1550/1625/1650nm |
| Insertion Loss | Typ: 0.8dB, Max: 1.2dB | Typ: 0.5dB, Max: 0.8dB |
| Return Loss | ≥30dB | ≥50dB |
| Crosstalk | ≥35dB | ≥55dB |
| Polarization Dependent Loss | ≤0.05dB | |
| Wavelength Dependent Loss | ≤0.25dB | |
| Temperature Dependent Loss | ≤0.25dB | |
| Repeatability | ≤0.02dB | |
| Power Supply | 3V or 5V | |
| Lifetime | ≥10⁷ Times | |
| Switch Time | ≤8ms | |
| Transmission Power | ≤500mW | |
| Operating Temperature | -10 ~ +70°C | |
| Storage Temperature | -40 ~ +85°C | |
| Weight | 16g | |
| Dimension (L×W×H) | 27.0 × 12.0 × 8.2mm | |
Note: Above specifications are for device without connector.
Electric
| Specifications | Voltage | Current | Resistance |
| 5V Latching | 4.5 ~ 5.5 | 36 ~ 44mA | 125Ω |
| 5V Non-Latching | 4.5 ~ 5.5 | 26 ~ 32mA | 175Ω |
| 3V Latching | 2.7 ~ 3.3 | 54 ~ 66mA | 50Ω |
| 3V Non-Latching | 2.7 ~ 3.3 | 39 ~ 47mA | 70Ω |
Pins
| Type | Pin | Electric Drive | Status Sensor | ||||||
| 1×2 | Light Pin | Pin1 | Pin5 | Pin6 | Pin10 | Pin2-3 | Pin3-4 | Pin7-8 | Pin8-9 |
| Latching | P1-P2 | V+ | GND | — | — | Open | Close | Close | Open |
| P1-P3 | — | — | GND | V+ | Close | Open | Open | Close | |
| Non-latching | P1-P2 | V+ | — | — | GND | Open | Close | Close | Open |
| P1-P3 | — | — | — | — | Close | Open | Open | Close | |
Optical Route
Mechanical Dimensions (Unit: mm)
Related Products
FiberLife's Bi-directional, Fully Non-blocking 1×32 Opto-Mechanical Optical Switch Module is an ideal solution where compact size and superior optical performance are essential. Designed to serve as the switching core of high-capacity packet-switching backbone routers, this module enables optical signal routing by directing one incoming optical signal to any of the 32 output fibers. It is perfectly suited for integration into 2RU rackmount chassis and desktop optical switch equipment.
The 1xN MEMS Optical Switch is a high-performance optical switching device based on Micro-Electro-Mechanical System (MEMS) technology. It is available in various channel configurations, including 1×4, 1×8, 1×16, 1×32, and other custom channel counts, enabling flexible optical signal routing from a single input port to multiple output ports.
The Dual 2x2B Opto-Mechanical Fiber Optic Switch efficiently redirects four incoming optical signals into four output fibers using an opto-mechanical configuration, activated via an electrical control signal. The switch integrates electrical position sensors for precise operation. Utilizing thin-film filter technology, this switch offers a robust method for altering light paths. Its simplified platform design enhances reliability while significantly reducing production costs. The novel design also minimizes sensitivity to moving part positions, ensuring unmatched stability and cost efficiency.
The D1x2 Opto-Mechanical Bi-Directional Fiber Optic Switch connects optical channels by redirecting two incoming optical signals into four output fibers. This is achieved through an opto-mechanical configuration, activated via an electrical control signal. The switch features integrated electrical position sensors for precise operation.
FiberLife 1×1 Opto-Mechanical Bidi Optical Switch offer high stability and reliability with thin-film filter technology. Available in 850/1310/1550nm/1650nm, our switches support customizable length, diameter, and connector types for single-mode and multimode fibers.
FiberLife's high-performance 2×2 opto-mechanical fiber optic switch is designed for precise optical signal redirection with high reliability, low cost, and exceptional stability. Available in 850/1310/1550nm/1650nm, our switches support customizable length, diameter, and connector types for single-mode and multimode fibers.
The 2×2B Opto-Mechanical Bypass Fiber Optic Switch connects optical channels by redirecting two incoming optical signals into two output fibers. This is achieved through an opto-mechanical configuration, activated via an electrical control signal. The switch features integrated electrical position sensors for precise operation. Utilizing thin-film filter technology, this series of switches provides a robust method for altering the light path. The innovative design simplifies platform configuration, ensuring high reliability and low production costs. Additionally, the optimized mechanical structure significantly reduces sensitivity to moving part positions, resulting in exceptional stability and unmatched cost-effectiveness.
