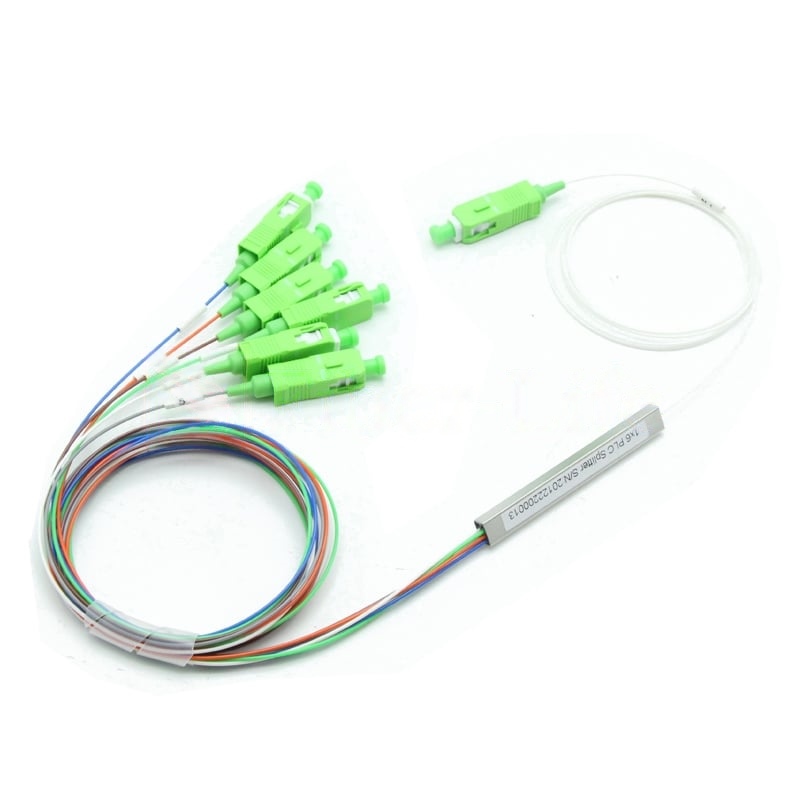

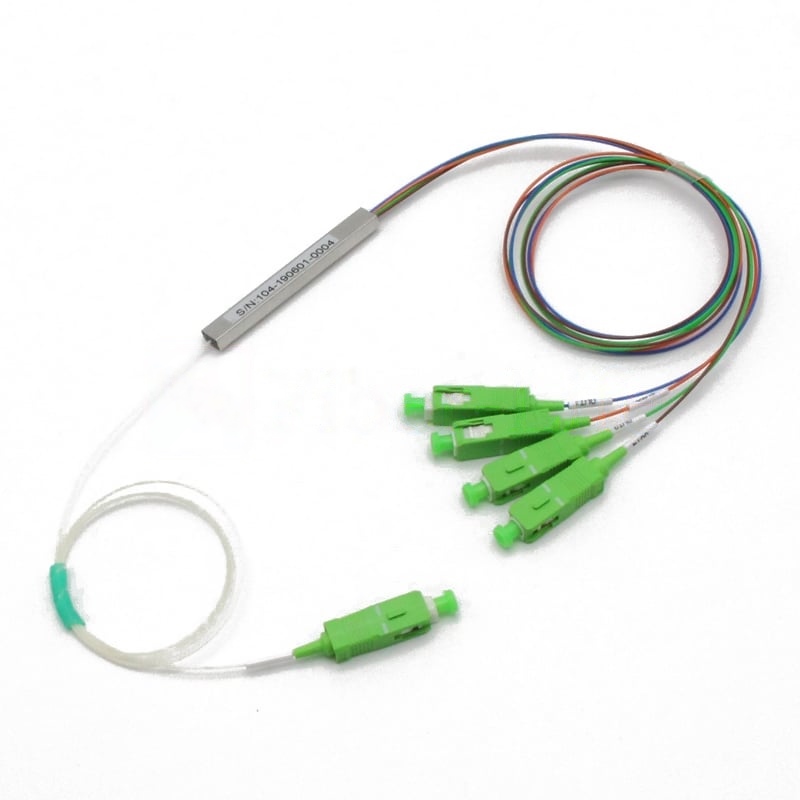

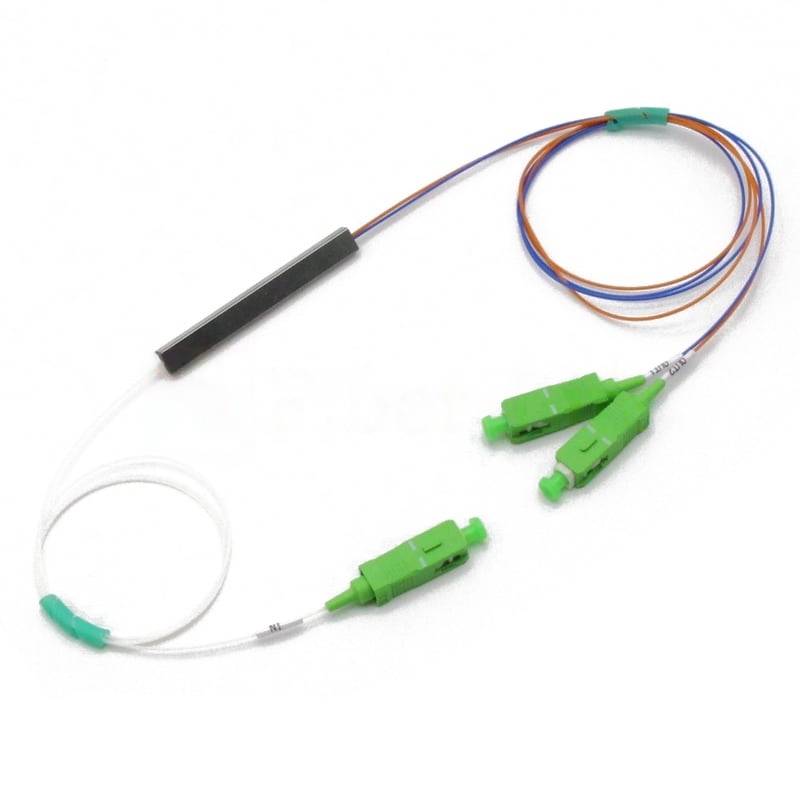

1xN, 2xN Polarization Maintaining Blockless PLC Splitter Slow Axis Working
1xN, 2xN Polarization Maintaining Blockless PLC Splitter Slow Axis Working is a high-performance splitter designed for polarization-sensitive optical communication and sensing systems. It features a compact blockless structure and utilizes polarization maintaining fiber (PMF), ensuring stable polarization state and low excess loss with slow axis alignment. Widely used in applications such as interferometric sensing, coherent communication, and fiber optic gyroscopes, this splitter supports various configurations (e.g., 1×2, 1×3, 1×4, 1×6, 1×8, 1×12, 1×16, 1×24, 1×32, 1×64). FiberLife also offers customization of fiber type, length, diameter, and connector options. For other requirements, please contact sales@FiberLife.com.
$217.00
1xN, 2xN Polarization Maintaining Blockless PLC Splitter Slow Axis Working
1xN, 2xN Polarization Maintaining Blockless PLC Splitter Slow Axis Working is a high-performance splitter designed for polarization-sensitive optical communication and sensing systems. It features a compact blockless structure and utilizes polarization maintaining fiber (PMF), ensuring stable polarization state and low excess loss with slow axis alignment. Widely used in applications such as interferometric sensing, coherent communication, and fiber optic gyroscopes, this splitter supports various configurations (e.g., 1×2, 1×3, 1×4, 1×6, 1×8, 1×12, 1×16, 1×24, 1×32, 1×64). FiberLife also offers customization of fiber type, length, diameter, and connector options. For other requirements, please contact sales@FiberLife.net.
Specifications
| Parameters | 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1310nm or 1550nm or Custom | |||||||||
| Insertion Loss (@23℃) | ≤3.8dB | ≤6.2dB | ≤7.2dB | ≤9.4dB | ≤10.3dB | ≤12.6dB | ≤13.5dB | ≤15.8dB | ≤16.5dB | ≤21dB |
| Consistency | ≤0.4dB | ≤0.5dB | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.0dB | ≤1.1dB | ≤1.5dB | ≤2.0dB |
| Extinction Ratio (@23℃) | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥16dB |
| Return Loss | ≥50dB | |||||||||
| Power Handling | 500mW or Custom | |||||||||
| Fiber Type | PM1310 or PM1550 or Specify | |||||||||
| Connector | LC, FC, SC, ST | |||||||||
| Operating Temperature | -5℃ ~ 70℃ | |||||||||
| Storage Temperature | -45℃ ~ 85℃ | |||||||||
Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTH System |
| Good Coherent | PON Access Network |
| High Extinction Ratio | CATV Network |
| High Isolation and Low PDL | Light Path Test System |
