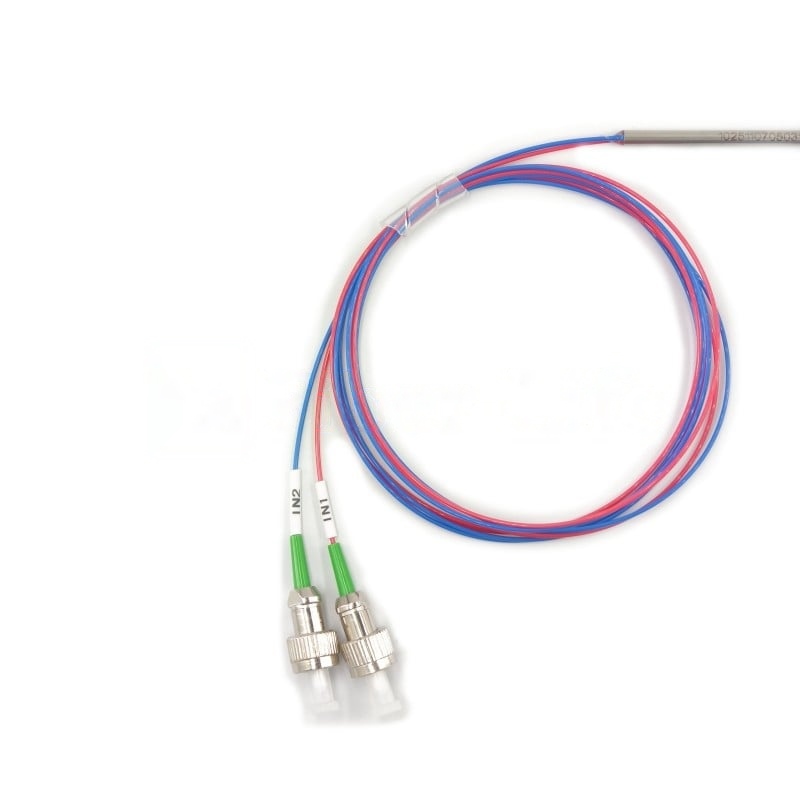

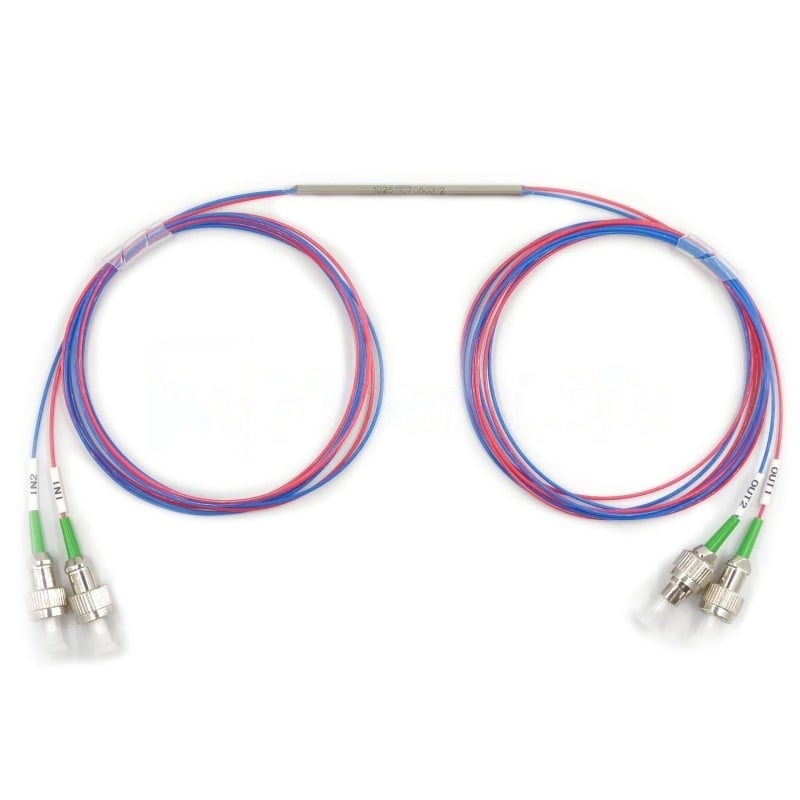

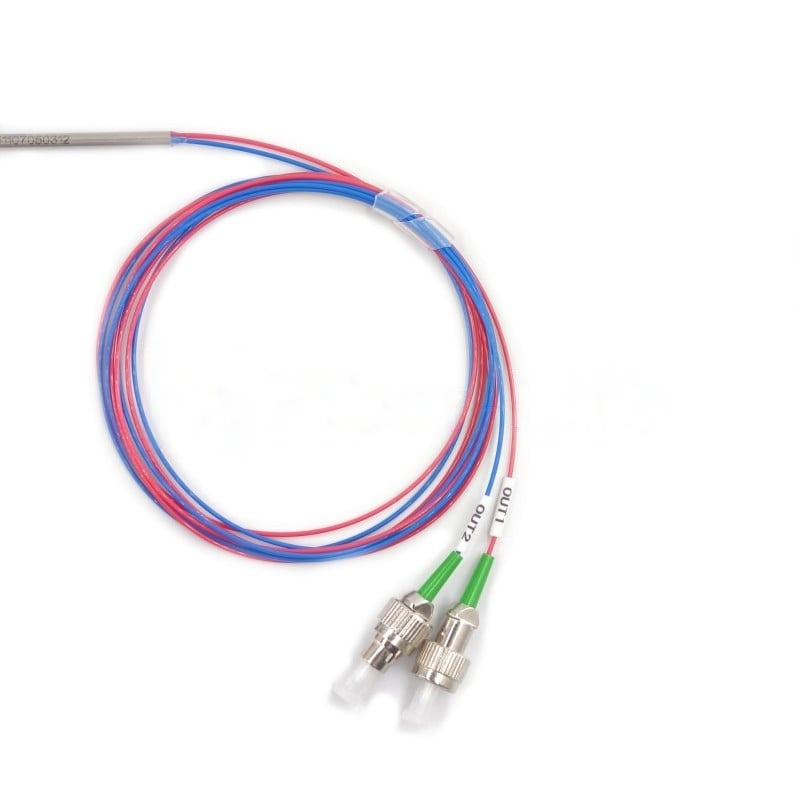

2×2 1490 & 1550nm Dual Window Singlemode FBT Coupler Splitter With Steel Tube
The 2×2 1490 & 1550nm Dual Window Singlemode FBT Coupler Splitter With Steel Tube is a high-performance optical splitting and combining device engineered for reliable operation across the 1490 nm (E-band) and 1550 nm (C-band) wavelength windows. Utilizing advanced Fused Biconical Taper (FBT) technology, this coupler splitter delivers low insertion loss, accurate coupling ratios, excellent wavelength stability, and consistent bidirectional optical performance in dual-wavelength singlemode fiber systems.
$17.38
2×2 1490 & 1550nm Dual Window Singlemode FBT Coupler Splitter With Steel Tube
The 2×2 1490 & 1550nm Dual Window Singlemode FBT Coupler Splitter With Steel Tube is a high-performance optical splitting and combining device engineered for reliable operation across the 1490 nm (E-band) and 1550 nm (C-band) wavelength windows. Utilizing advanced Fused Biconical Taper (FBT) technology, this coupler splitter delivers low insertion loss, accurate coupling ratios, excellent wavelength stability, and consistent bidirectional optical performance in dual-wavelength singlemode fiber systems.

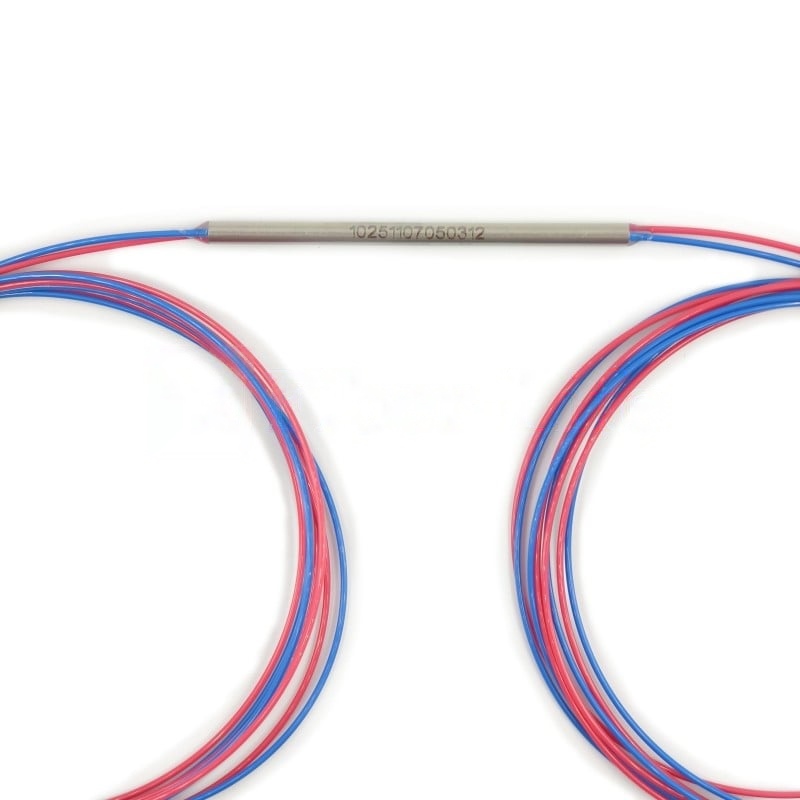

Encapsulated in a robust stainless-steel protective tube, the device provides superior mechanical strength, environmental durability, and long-term operational reliability. Its precision fused-taper manufacturing process ensures low polarization-dependent loss (PDL) and stable optical characteristics, even in demanding network environments.
The 2×2 configuration supports both splitting and combining functions, enabling flexible signal management for multi-wavelength optical systems. Available in a variety of split/coupling ratios—including 50/50, 60/40, 70/30, 80/20, and 90/10—this splitter is widely used in FTTH/FTTx networks, EPON/GPON PON systems, CATV distribution, CWDM/DWDM monitoring, optical sensing, and fiber-optic testing applications.
Specifications
| Parameter | Value | ||||
|---|---|---|---|---|---|
| Configuration | 1 x 2 or 2 x 2 | ||||
| Type | Single Window | Dual Window | Three Window | All Band | |
| Center Wavelength | 1310/1550nm | 1310 & 1550nm/1310 & 1490nm/1490 & 1550nm | 1310 & 1490 & 1550nm | 1260 ~ 1620nm | |
| Operating Wavelength Range | ±40nm | ±40nm | ±40nm | – | |
| Insertion Loss | 50/50 | ≤3.4dB | ≤3.6dB | ≤3.6dB | ≤3.8dB |
| 10/90 | ≤10.65/0.65dB | ≤11.2/0.75dB | ≤11.2/0.75dB | ≤11.4/1.15dB | |
| 5/95 | ≤13.8/0.4dB | ≤14.15/0.4dB | ≤14.15/0.4dB | ≤14.3/0.8dB | |
| 1/99 | ≤21.15/0.2dB | ≤21.6/0.25dB | ≤21.6/0.25dB | ≤21.95/0.65dB | |
| PDL | ≤0.15dB | ||||
| Directivity | ≥55dB | ||||
| Return Loss | ≥50dB | ||||
| Operating Temperature | -10 ~ +70°C | ||||
| Storage Temperature | -40 ~ +85°C | ||||
| Dimension | Φ3 x 54mm | ||||
Note:
- Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
- Only the popular coupling ratios are listed. For more parameters, please contact sales@FiberLife.net.
