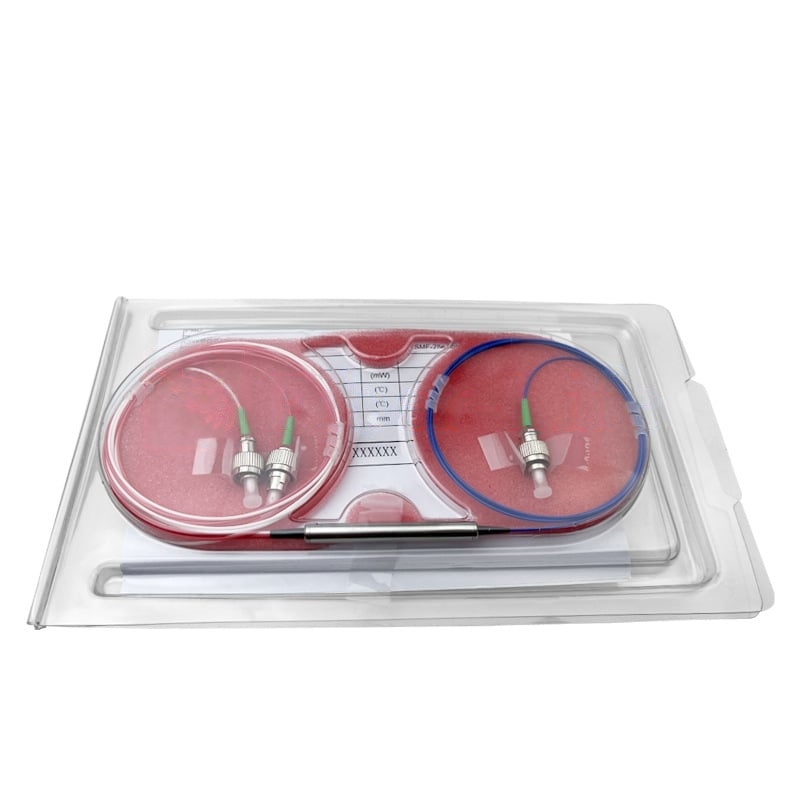

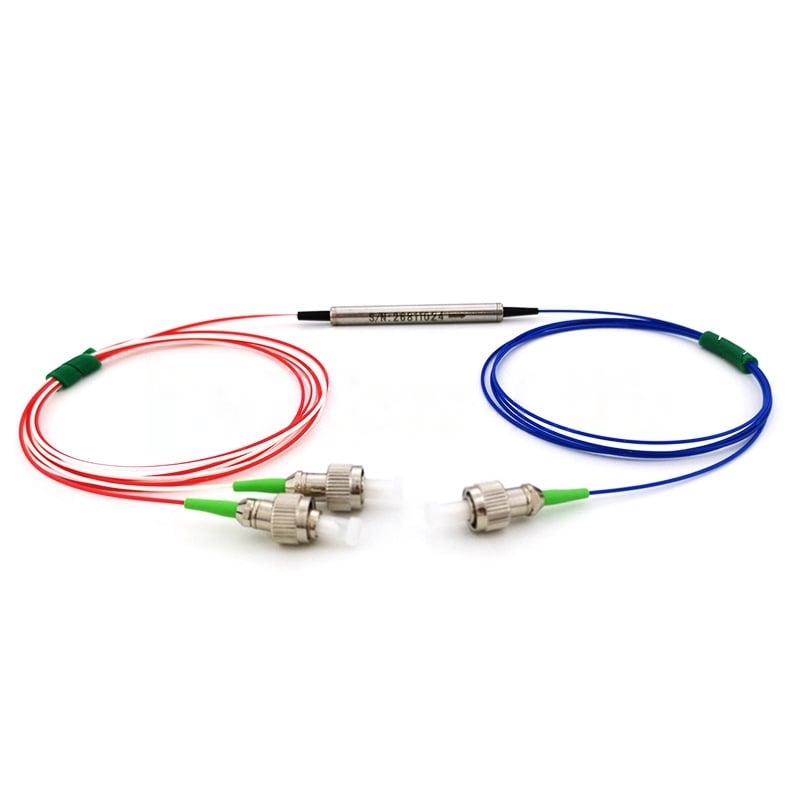

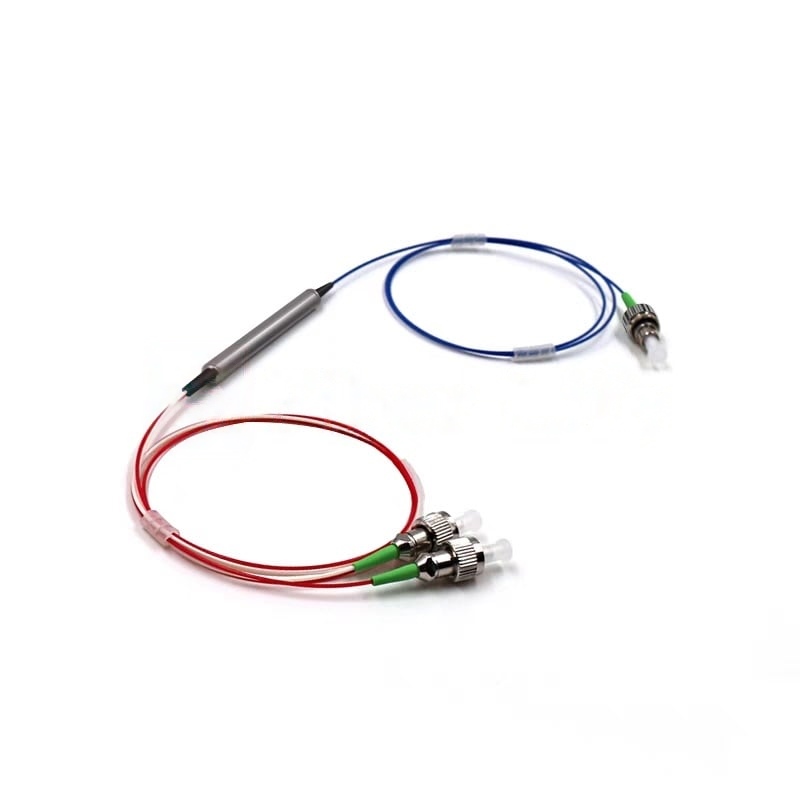

3 Ports C+L 1528~1610nm Singlemode Polarization Insensitive Optical Circulator
The 3 Ports C+L 1528~1610nm Singlemode Polarization Insensitive Optical Circulator is a passive optical device designed for C-band and L-band optical communication systems. It efficiently transmits optical signals in a fixed direction (Port 1 → Port 2 → Port 3) while maintaining low insertion loss and high isolation. Its polarization-insensitive design ensures stable signal transmission, and the compact package enhances system reliability. Widely used in DWDM optical networks, optical amplification (EDFA/Raman), fiber optic sensing, and bidirectional optical communication, this circulator helps optimize signal quality, reduce power loss, and improve optical path control, making it an ideal choice for high-performance optical networks.
$126.47
3 Ports C+L 1528~1610nm Singlemode Polarization Insensitive Optical Circulator
The 3 Ports C+L 1528~1610nm Singlemode Polarization Insensitive Optical Circulator is a passive optical device designed for C-band and L-band optical communication systems. It efficiently transmits optical signals in a fixed direction (Port 1 → Port 2 → Port 3) while maintaining low insertion loss and high isolation. Its polarization-insensitive design ensures stable signal transmission, and the compact package enhances system reliability. Widely used in DWDM optical networks, optical amplification (EDFA/Raman), fiber optic sensing, and bidirectional optical communication, this circulator helps optimize signal quality, reduce power loss, and improve optical path control, making it an ideal choice for high-performance optical networks.
Specifications
| Parameter | Value | ||||
|---|---|---|---|---|---|
| Center Wavelength | 1064nm | 1310/1480/1550nm | C + L Band | 1950/2000/2050nm | |
| Operating Wavelength Range | ±5nm | ±30nm | 1528 – 1610nm | ±30nm | |
| Isolation | Typ | ≥28dB | ≥50dB | ≥50dB | ≥25dB |
| Min | ≥22dB | ≥40dB | ≥40dB | ≥20dB | |
| Insertion Loss | ≤2.2dB | ≤0.8dB | ≤0.9dB | ≤1.5dB | |
| Polarization Dependent Loss | ≤0.15dB | ||||
| Max CW Power | 300mW | 300/1000/2000mW | 500mW | ||
| Max Peak Power (Pulse) | <10KW@ns pulse | ||||
| Cross Talk | ≥45dB | ||||
| Return Loss | ≥50dB | ||||
| Fiber Type | SM Fiber | ||||
| Dimension | 34 x 8.4 x 8.4mm | Φ5.5 x L50mm | Φ5.5 x L50mm | Φ5.5 x L50mm | |
| Operating Temperature | -5 ~ +70°C | ||||
| Storage Temperature | -40 ~ +85°C | ||||
Note: Test environment: 25°C. Data shown exclude connectors. Adding connectors will increase insertion loss by 0.3dB and reduce return loss by 5dB.
Related Products
The 3 Ports 1310nm High Power Polarization Insensitive Optical Circulator is a high-performance, non-reciprocal passive optical device designed to direct light sequentially from Port 1 → Port 2 and Port 2 → Port 3, ensuring precise and stable unidirectional signal transmission. Operating at 1310 nm, this circulator provides low insertion loss, high isolation, high return loss, and excellent thermal stability, making it ideal for high-power optical communication, testing, and sensing systems.

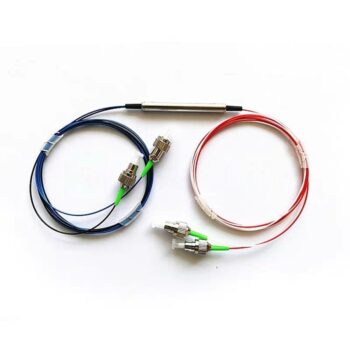

The 4 Ports 1310nm Singlemode Polarization Insensitive Optical Circulator is a high-performance non-reciprocal passive device that routes light sequentially from Port 1 → Port 2 → Port 3 → Port 4, ensuring precise and unidirectional signal transmission in singlemode fiber systems. Designed to operate at 1310 nm, it features low insertion loss, high isolation, and excellent return loss, providing reliable performance for optical communication and testing applications.
The 3 Ports 1030nm High Power Polarization Insensitive Optical Circulator is a precision-engineered non-reciprocal passive optical device designed to direct light sequentially from Port 1 → Port 2 and Port 2 → Port 3 while maintaining excellent optical isolation and minimal insertion loss. Operating at 1030 nm, this circulator is optimized for high-power fiber laser and amplifier systems, providing reliable performance in demanding industrial and scientific applications.
The 4 Ports C+L 1528~1610nm Singlemode Polarization Insensitive Optical Circulator is a high-performance non-reciprocal passive optical device that directs light sequentially from Port 1 → Port 2 → Port 3 → Port 4, ensuring precise and efficient unidirectional signal transmission. Designed to operate over the C+L wavelength band (1528–1610 nm), it provides broadband operation, low insertion loss, high isolation, and excellent return loss, making it an ideal solution for next-generation optical communication systems.
The 4 Ports 1550nm Singlemode Polarization Insensitive Optical Circulator is a high-performance non-reciprocal passive optical device designed to control the direction of light transmission in singlemode fiber systems. It sequentially routes optical signals from Port 1 → Port 2 → Port 3 → Port 4 with minimal insertion loss and excellent isolation, ensuring reliable and efficient unidirectional signal flow without back reflection.
The 3 Ports 1080nm High Power Polarization Insensitive Optical Circulator is a high-performance, non-reciprocal passive optical device designed to direct light sequentially from Port 1 → Port 2 and Port 2 → Port 3 with exceptional optical isolation and minimal insertion loss. Operating at 1080 nm, it is specifically engineered for high-power Yb-doped fiber laser and amplifier systems, ensuring stable and efficient light routing in demanding industrial and scientific environments.
The 3 Ports 1625nm Polarization Insensitive Optical Circulator is a high-performance non-reciprocal passive device designed to direct optical signals sequentially from Port 1 → Port 2 and Port 2 → Port 3 with minimal insertion loss and excellent isolation. Operating specifically at 1625nm, it is optimized for optical monitoring, fiber testing, and OTDR applications, where high wavelength selectivity and low polarization sensitivity are essential.

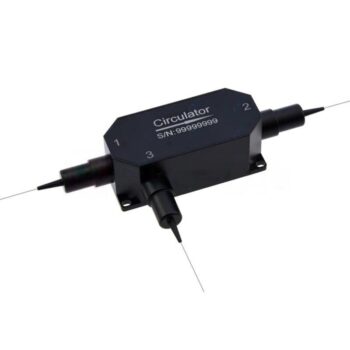

The 3 Ports 1480nm High Power Polarization Insensitive Optical Circulator is a high-performance, non-reciprocal passive optical device designed to route light sequentially from Port 1 → Port 2 and Port 2 → Port 3, ensuring stable, unidirectional light transmission with minimal loss. Operating at 1480 nm, it is specifically optimized for EDFA pumping systems, Raman amplifiers, and high-power optical communication networks, where precise light control and excellent thermal stability are critical.
