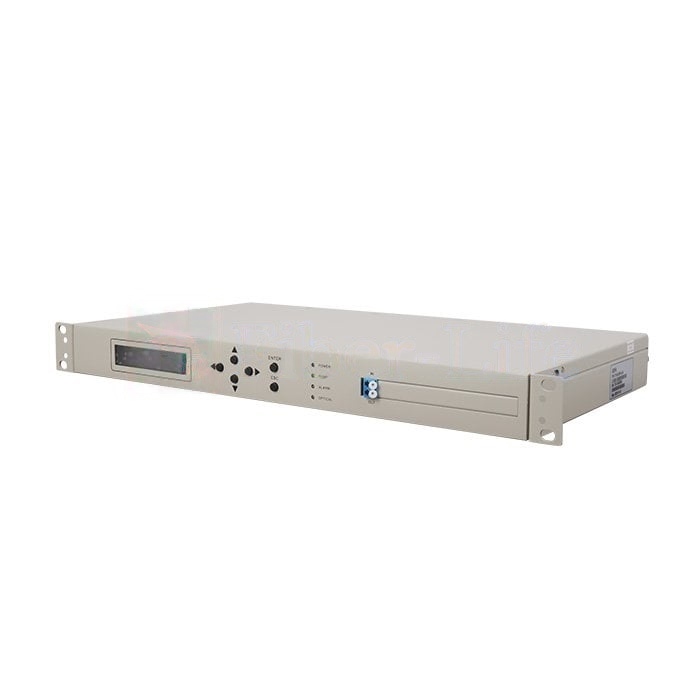

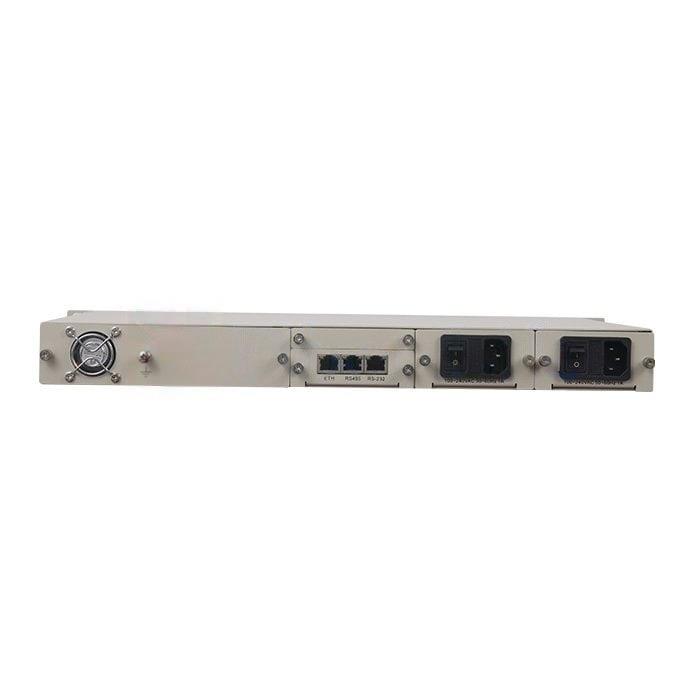

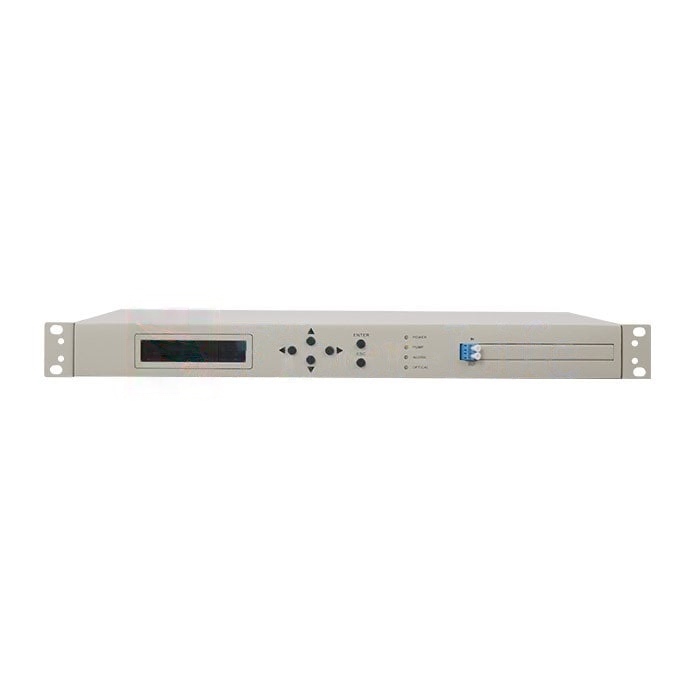

C Band 1U Rack Mount DWDM EDFA Booster Amplifier, 20dBm Output Power
The C Band 1U Rack Mount DWDM EDFA Booster Amplifier (20dBm Output Power) is a high-stability fiber optic amplifier designed to deliver powerful and consistent optical output for DWDM transmission systems. It adopts high-reliability pump lasers and integrates intelligent APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuits to ensure excellent output stability and reliability.
$3,100.00
C Band 1U Rack Mount DWDM EDFA Booster Amplifier, 20dBm Output Power
The C Band 1U Rack Mount DWDM EDFA Booster Amplifier (20dBm Output Power) is a high-stability fiber optic amplifier designed to deliver powerful and consistent optical output for DWDM transmission systems. It adopts high-reliability pump lasers and integrates intelligent APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuits to ensure excellent output stability and reliability.
Equipped with an advanced microprocessor (MPU) control system, the amplifier provides intelligent monitoring, automatic adjustment, and a user-friendly display interface. The unique optical path design, combined with a professional GFF (Gain Flattening Filter), minimizes noise and ensures superior gain flatness across all DWDM channels. The typical configuration supports 40/48/80/96 channels with >35 nm flat gain bandwidth.
This EDFA Booster is optimized for long-haul optical transmission networks, featuring:
- Low noise figure for superior signal quality.
- High gain and output power to efficiently compensate for fiber attenuation and system losses.
- Wide dynamic range with adjustable gain to meet various engineering needs.
- Dual power supply redundancy, ensuring high MTBF and continuous, reliable operation.
- Intelligent temperature-controlled cooling system, maintaining stable performance in harsh environments (up to 35°C).
- Comprehensive network management interface (RS232, RS485, and SNMP), enabling flexible remote control, real-time monitoring, and easy network integration.
With its rack-mountable 1U design, robust thermal management, and high-performance optical path, this DWDM EDFA Booster Amplifier provides an ideal solution for C-band optical signal boosting in long-distance, high-capacity DWDM transmission systems.
Specifications
| Parameter | Min | Typ | Max | Unit | |
| Wavelength Range | 1528 | – | 1568 | nm | |
| Output Power | – | – | 23 | dBm | |
| Output Power Stability | – | – | ±0.1 | dBm | |
| Gain | – | – | 20 | dB | |
| Gain Flatness | – | 1.0 | 1.5 | dB | |
| Input Power | Booster Amplifier (BA) | -14 | – | 6 | dBm |
| Noise Figure | – | 4.5 | 5.5 | dB | |
| Polarization Mode Dispersion | – | – | 0.5 | ps | |
| Polarization Dependent Gain | – | – | 0.3 | dB | |
| Return Loss | 45 | – | – | dB | |
| Pump Leakage | – | – | -30 | dBm | |
| Operating Temperature | -5 | – | 60 | °C | |
| Storage Temperature | -40 | – | 80 | °C | |
| Relative Humidity (No-condensing) | 10 | – | 90 | % | |
| Power Consumption | – | – | 18 | W | |
| Dual Power Supply | 110VAC or 220VAC or -48VDC | V | |||
| Dimension | 44 x 236 x 483 (Standalone 1U rack-mount for 19″ cabinets) | mm | |||
| Management Port | RJ45 (Ethernet), RS-232, SNMP v1/v2c (MIB available), CLI | ||||
| Optical Port (Connector) | LC/SC/FC/ST/APC/UPC | ||||

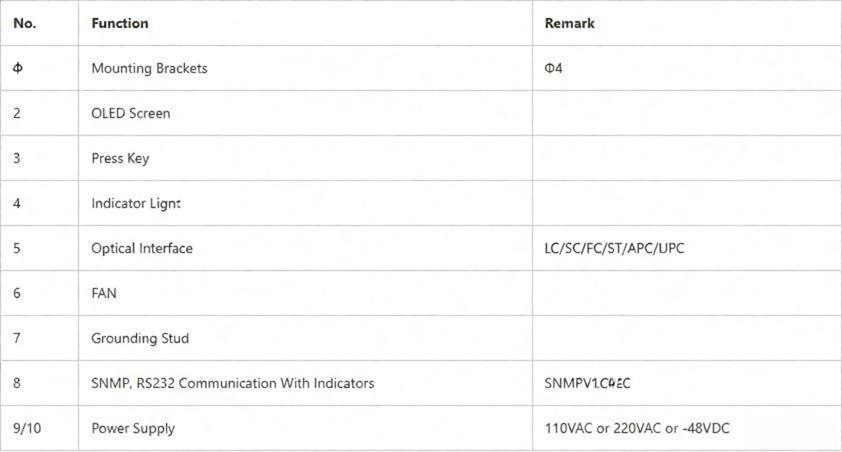

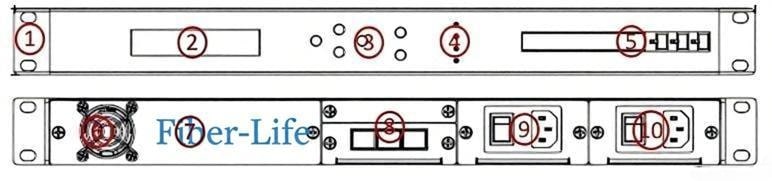

Interface Instructions

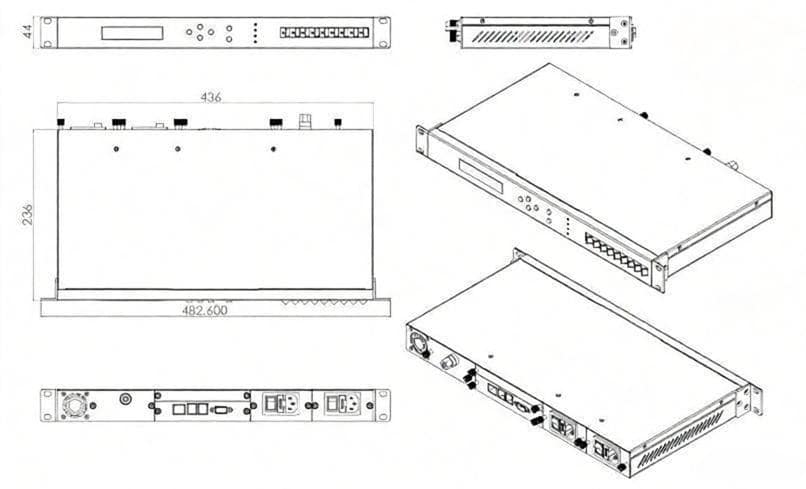

Dimensional Drawing (Unit: mm)
