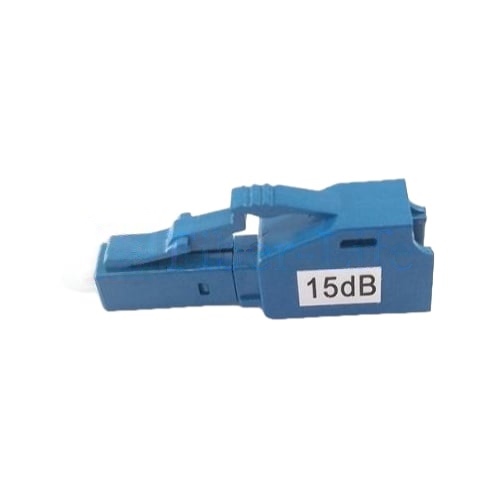

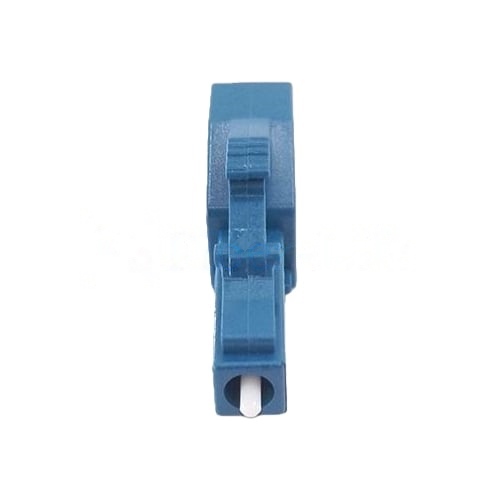

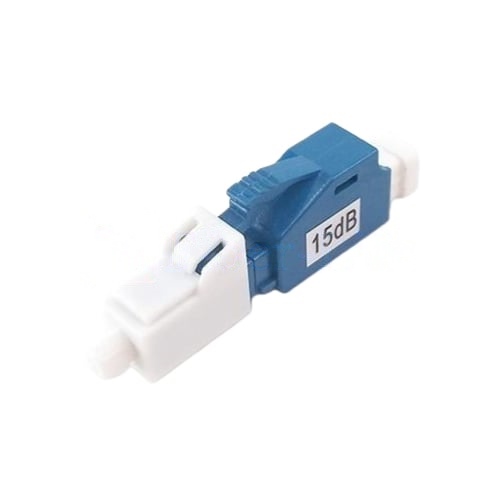

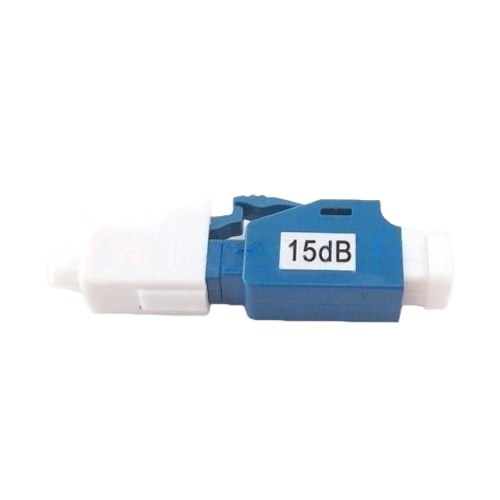

LC/UPC Singlemode Fixed Fiber Optic Attenuator, Male To Female, 1~30dB Optional
The LC/UPC Singlemode Fixed Fiber Optic Attenuator (Male To Female, 1~30 dB Optional) is a high-precision optical attenuation device designed to reduce optical power levels within singlemode fiber networks. Featuring an LC/UPC male-to-female inline design, it enables quick installation without disrupting existing cable layouts, making it ideal for power balancing, receiver protection, and optical testing applications.
$2.50
LC/UPC Singlemode Fixed Fiber Optic Attenuator, Male To Female, 1~30dB Optional
The LC/UPC Singlemode Fixed Fiber Optic Attenuator (Male To Female, 1~30 dB Optional) is a high-precision optical attenuation device designed to reduce optical power levels within singlemode fiber networks. Featuring an LC/UPC male-to-female inline design, it enables quick installation without disrupting existing cable layouts, making it ideal for power balancing, receiver protection, and optical testing applications.
Engineered with high-quality ceramic ferrules and low-reflectance UPC polishing, this fixed attenuator ensures stable attenuation, low insertion loss, and excellent return loss across the full operating wavelength range. Available in 1 to 30 dB attenuation values, it provides flexible power control for various optical systems, including DWDM, CWDM, FTTH/FTTx networks, OLT/ONT equipment, optical amplifiers, and test instruments.
The compact, robust structure offers exceptional reliability and long-term performance, maintaining precise attenuation even under varying environmental conditions.
Specifications
| Fiber Connector | LC/UPC | Connector Gender | Male to Female |
| Fiber Mode | OS2 Singlemode 9/125μm | Operating Wavelength | 1260 ~ 1620nm |
| Attenuation Range | 1 ~ 30dB | Attenuation Accuracy | 1 ~ 5dB ± 0.5dB, 6 ~ 30dB ± 10% |
| Return Loss | ≥50dB | Max Optical Input Power | 200mW |
| Operating Temperature | -40 ~ +80°C | Storage Temperature | -40 ~ +85°C |
