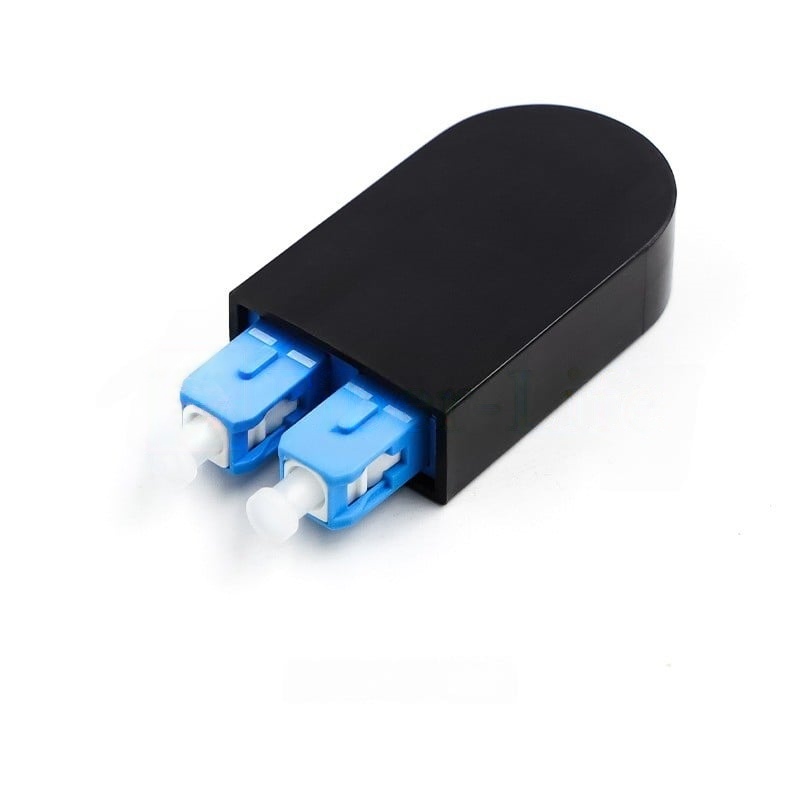

OS2 Singlemode SC/UPC Fiber Loopback Module
The OS2 Singlemode SC/UPC Fiber Loopback Module is designed for network testing, diagnostics, and burn-in procedures. It features a SC/UPC connector and uses 9/125μm OS2 singlemode fiber, ensuring low insertion loss and high return loss for accurate signal reflection. With excellent repeatability, interchangeability, and stable performance, this module is ideal for verifying transceiver performance in data centers, telecom networks, and optical equipment testing environments.
$4.80
OS2 Singlemode SC/UPC Fiber Loopback Module
The OS2 Singlemode SC/UPC Fiber Loopback Module is designed for network testing, diagnostics, and burn-in procedures. It features a SC/UPC connector and uses 9/125μm OS2 singlemode fiber, ensuring low insertion loss and high return loss for accurate signal reflection. With excellent repeatability, interchangeability, and stable performance, this module is ideal for verifying transceiver performance in data centers, telecom networks, and optical equipment testing environments.
Specifications
| Fiber Type | OS2 Singlemode 9/125μm | Fiber Connector | SC/UPC |
| Insertion Loss | ≤0.25dB | Return Loss | ≥50dB |
| Jacket Type | PVC | Durability | Over 500 Cycles (≤0.2dB Change) |
| Operating Temperature | -20°C ~ 70°C | Storage Temperature | -45°C ~ 85°C |
