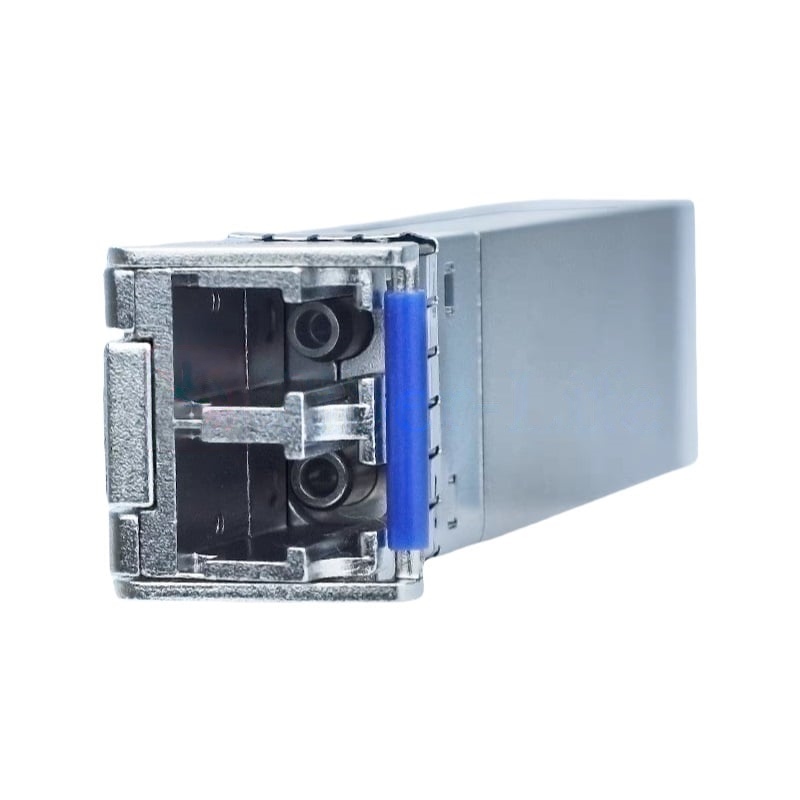

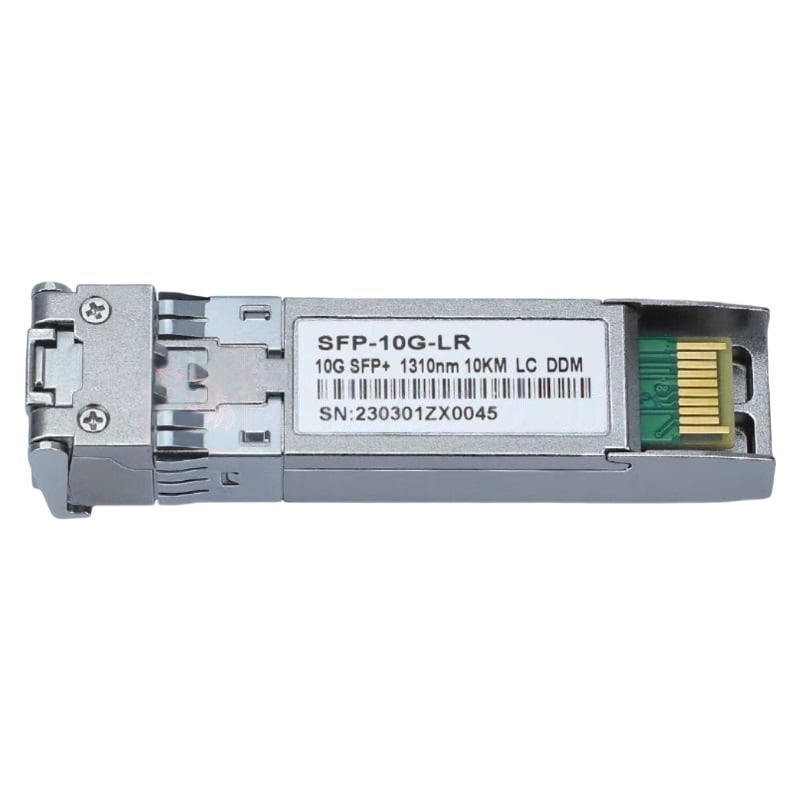

SFP+ 10GBASE-LR 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module, Cisco SFP-10G-LR Compatible
The Cisco SFP-10G-LR Compatible SFP+ Optical Transceiver Module supports link lengths of up to 10 km over duplex LC single-mode fiber (SMF). It complies with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostics monitoring is available through a 2-wire serial interface, as specified in SFF-8472. With its low power consumption and high-speed performance, this 10G SFP+ transceiver is ideal for use in data centers, enterprise wiring closets, service provider transport networks, Radio & Baseband Units, and other applications requiring reliable, long-range connectivity.
$25.60
Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The Cisco SFP-10G-LR Compatible SFP+ transceiver supports link lengths of up to 10 km over duplex LC single-mode fiber (SMF). It complies with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostics monitoring is available through a 2-wire serial interface, as specified in SFF-8472. With its low power consumption and high-speed performance, this 10G SFP+ transceiver is ideal for use in data centers, enterprise wiring closets, service provider transport networks, Radio & Baseband Units, and other applications requiring reliable, long-range connectivity.
Specifications
| Cisco Compatible | SFP-10G-LR | Vendor Name | FiberLife |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -8.2~0.5dBm | Receiver Sensitivity | <-14.4dBm |
| Power budget | 6.2dB | Receiver Overload | 0.5dBm |
| Power Consumption | ≤1W | Extinction Ratio | >3.5dB |
| Core Size | 9/125 µm | Modulation | NRZ |
| Temperature Range | COM 0 To 70°C (32 To 158°F) IND -40 To 85°C (-40 To 185°F) |
Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
Quality Certifications
.svg "SFP+ 10GBASE-LR 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module, Cisco SFP-10G-LR Compatible 5")
Please Note:Â Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

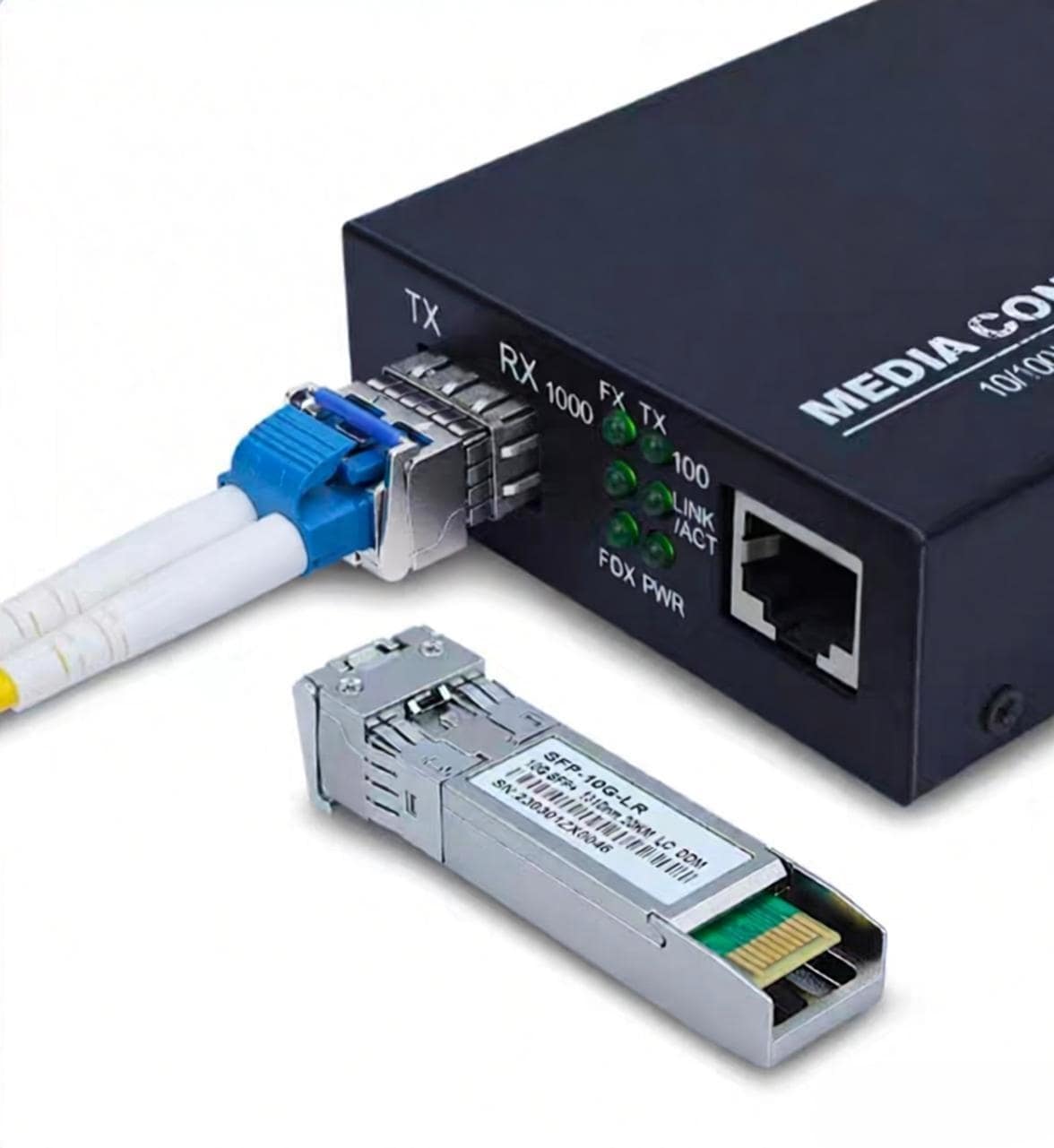

Feature
Support hot-swappable
When the device is powered on and working, the module can be plugged in and out, which is safe and stable.
