SM/MM ST Fixed Male-Female Attenuator, 1~30dB Optional
Versatile SM/MM ST Fixed Male-Female Attenuator with 1~30dB options, ensuring precise signal control for optical networks, testing, and data center applications. Reliable, efficient, and easy-to-use.
$7.20

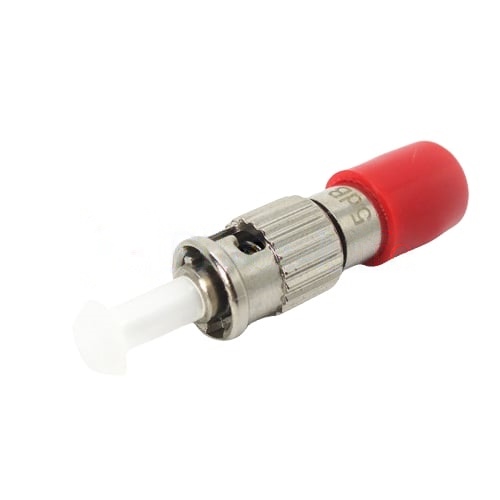

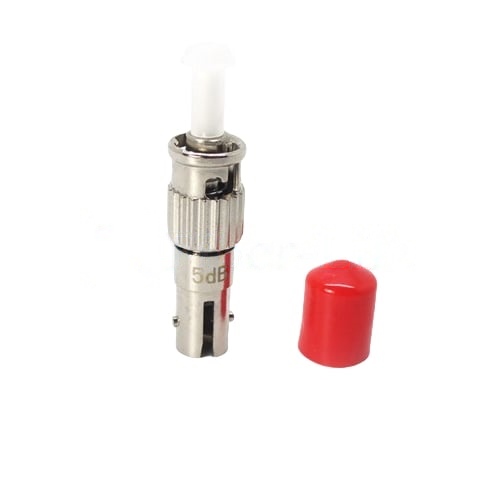

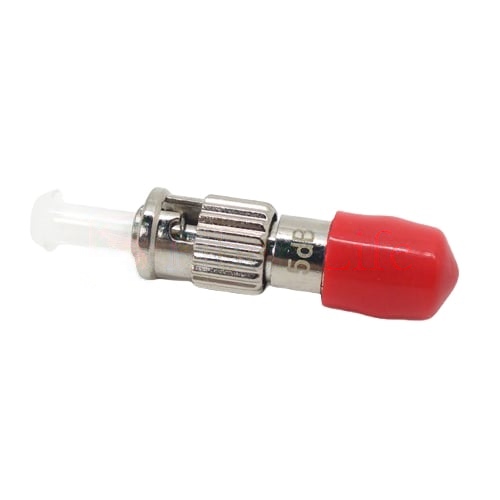

SM/MM ST Fixed Male-Female Attenuator, 1~30dB Optional
The SM/MM ST Fixed Male-Female Attenuator, with an optional attenuation range of 1~30dB, is a reliable optical device designed to reduce signal strength precisely in fiber networks. Compatible with both single-mode (SM) and multimode (MM) fibers, it features an ST Male-Female structure for easy plug-and-play connectivity with various devices. Its fixed attenuation design ensures consistent performance, making it ideal for applications like power control in optical communication networks, device testing, equipment calibration, and signal optimization in data centers or LANs. With versatile attenuation options and broad compatibility, it is a practical solution for efficient optical power management.
Specification
| Fiber Connector | ST | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male To Female | Transfer Mode | SM/MM |
| Attenuation | 1~30dB | Operating Wavelength | 1310/1550nm(SM), 850/1300nm(MM) |
| Attenuation Accuracy | 1-5dB±0.5dB, 6-30dB±10% | Return Loss | SM≥50dB, MM≥30dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Storage Temperature Range | -40 To 85°C (-40 To 185°F) | Operating Temperature Range | -40 To 80°C (-40 To 176°F) |
| Push-Pull | ≥1000 Times, Loss≤0.2dB | Humidity | 95%RH |
Dimension(mm)
