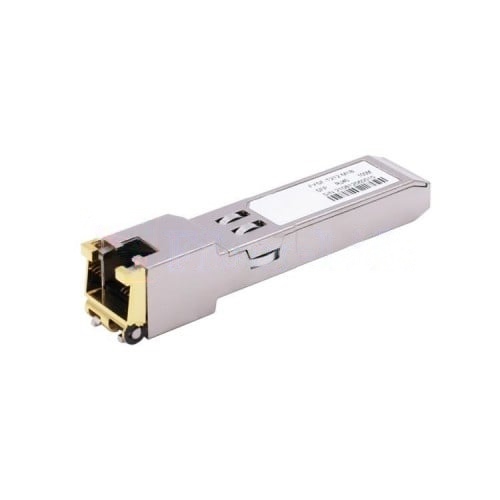

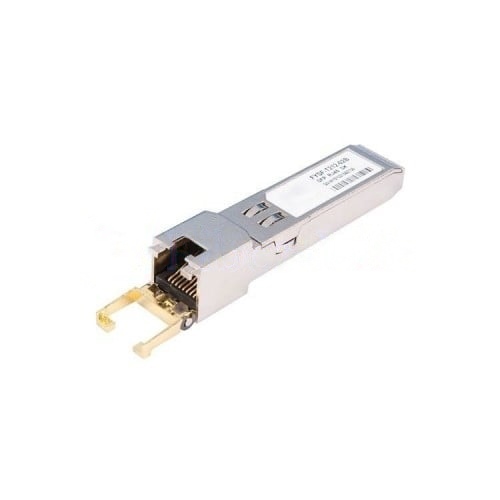

100BASE-T 100m Copper RJ-45 SFP Transceiver Module
The 100BASE-T 100m Copper RJ-45 SFP Transceiver Module is a high-performance, hot-pluggable SFP transceiver designed for Fast Ethernet applications over copper cabling. It supports data rates up to 100 Mbps and complies with the IEEE 802.3u 100BASE-TX standard. Featuring an RJ-45 connector, this module enables seamless connection to standard Cat5/5e/6 twisted-pair cables, providing a maximum transmission distance of 100 meters.
$21.00
100BASE-T 100m Copper RJ-45 SFP Transceiver Module
The 100BASE-T 100m Copper RJ-45 SFP Transceiver Module is a high-performance, hot-pluggable SFP transceiver designed for Fast Ethernet applications over copper cabling. It supports data rates up to 100 Mbps and complies with the IEEE 802.3u 100BASE-TX standard. Featuring an RJ-45 connector, this module enables seamless connection to standard Cat5/5e/6 twisted-pair cables, providing a maximum transmission distance of 100 meters.
Specifications
| Model | Rate | Transmission Distance | Interface | Operating Temperature |
|---|---|---|---|---|
| P/N: 119506 | 100M | 100M | RJ45 | 0 ~ 70°C |
| P/N: 119521 | 1000M | 100M | RJ45 | 0 ~ 70°C |
| P/N: 119540 | 10/100/1000M (auto-negotiation) |
100M | RJ45 | 0 ~ 70°C |
| P/N: 119554 | 10G | 30M | RJ45 | 0 ~ 70°C |
| P/N: 119569 | 1/2.5/5/10G (auto-negotiation) |
30M | RJ45 | 0 ~ 70°C |
