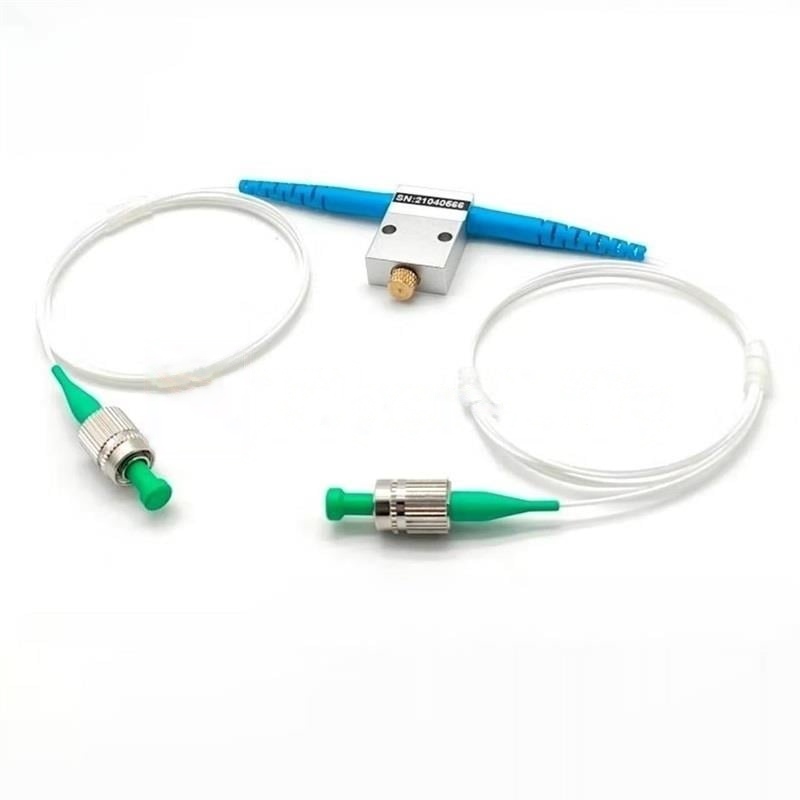

850nm Multimode In-Line Variable Optical Attenuator (VOA)
850nm Multimode In-Line Variable Optical Attenuator (VOA) is designed for precise optical power control in multimode fiber networks operating at the 850nm wavelength. Built with high-quality optical components and a robust in-line housing, it ensures low insertion loss, high return loss, and excellent repeatability over repeated adjustments. This VOA is ideal for balancing signal levels, testing system margin, and simulating optical loss in applications such as local area networks (LANs), data centers, and multimode communication systems. Compact and lightweight, it supports easy integration into existing cabling setups, providing a cost-effective and reliable solution for multimode attenuation needs.
$129.48
850nm Multimode In-Line Variable Optical Attenuator (VOA)
850nm Multimode In-Line Variable Optical Attenuator (VOA) is designed for precise optical power control in multimode fiber networks operating at the 850nm wavelength. Built with high-quality optical components and a robust in-line housing, it ensures low insertion loss, high return loss, and excellent repeatability over repeated adjustments. This VOA is ideal for balancing signal levels, testing system margin, and simulating optical loss in applications such as local area networks (LANs), data centers, and multimode communication systems. Compact and lightweight, it supports easy integration into existing cabling setups, providing a cost-effective and reliable solution for multimode attenuation needs.
Specifications
| Parameter | Value | |||
|---|---|---|---|---|
| Center Wavelength | 1310nm | 1550nm | 1310/1550nm | 850±40nm |
| Operating Wavelength Range | ±40nm | ±40nm | ±40nm | ±40nm |
| Attenuation Range | 0.8 ~ 60dB | |||
| Insertion Loss | ≤0.8dB | |||
| Return Loss | ≥50dB | ≥30dB | ||
| Fiber Type | SMF-28e | OM1/OM2/OM3/OM4 | ||
| PDL | ≤0.1dB | |||
| Max Power | 500mW | |||
| Max Tensile Load | 5N | |||
| Operating Temperature | -5 ~ +70°C | |||
| Storage Temperature | -40 ~ +85°C | |||
| Dimension | 26 x 18 x 8mm | |||
Key Features
✅ Wavelength Range: Specially optimized for 850nm wavelength, perfect for multimode fiber systems.
✅ In-Line Design: The compact in-line design ensures easy integration into existing optical networks, minimizing insertion loss and improving signal integrity.
✅ Variable Attenuation: Offers precise and adjustable attenuation to manage power levels and maintain signal integrity across your optical network.
✅ Durability: Built to withstand harsh conditions, ensuring long-lasting performance and low maintenance.
✅ Applications: Ideal for use in optical communication systems, fiber optic testing, optical power monitoring, and signal equalization.
Whether used in data centers, telecommunications, or fiber optic testing, our 850nm Multimode In-Line Variable Optical Attenuator (VOA) offers precision, reliability, and high performance to optimize your optical communication systems.

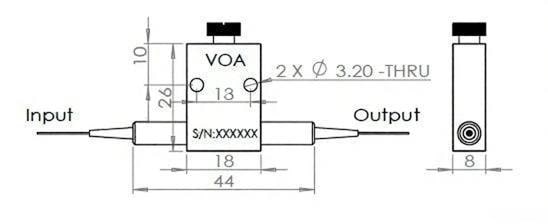

Dimension Drawing (Unit: mm)
