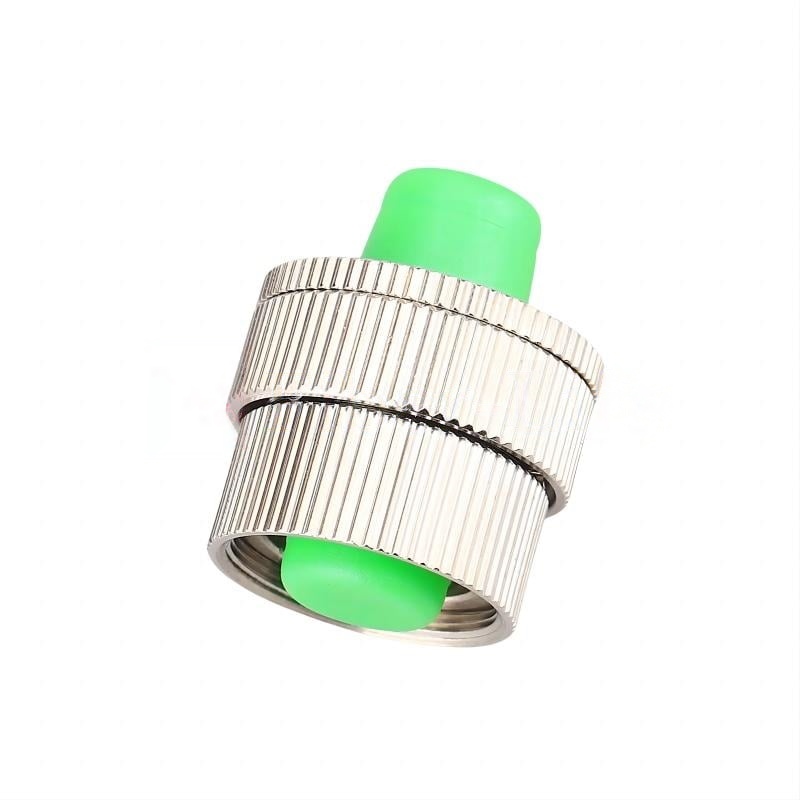

FC/APC Singlemode Variable Fiber Optical Attenuator (VOA)
Optimize optical signal power with FiberLife FC/APC Singlemode Variable Fiber Optical Attenuator (VOA). Featuring adjustable attenuation (0-30dB), low insertion loss, and high return loss, it's perfect for telecom, DWDM, and fiber testing. Shop now!
$11.70
FC/APC Singlemode Variable Fiber Optical Attenuator (VOA) | Precise Optical Power Control
The FC/APC Singlemode Variable Fiber Optical Attenuator (VOA) is an essential component for managing optical signal power in fiber optic communication systems. Designed with an FC/APC connector, this attenuator ensures low back reflection and high precision attenuation, making it ideal for singlemode fiber applications.
Specifications
| Fiber Connector | FC/APC | Ferrule Type | Zirconia Ceramic |
| Transfer Mode | Singlemode | Operating Wavelength | 1260 ~ 1620nm |
| Attenuation | 1 ~ 30dB | Attenuation Accuracy | ±0.8dB |
| Minimize Insertion Loss | <2.5dB | Polarization Dependent Loss | ≤0.2dB |
| Max Optical Input Power | 200mW | Humidity | 95%RH |
| Operating Temperature | -40 ~ 80°C | Storage Temperature | -40 ~ 85°C |
Key Features:
✅ Adjustable Attenuation (1dB-30dB) – Fine-tune optical power for optimal network performance.
✅ Low Insertion Loss & High Return Loss – Minimizes signal degradation for superior transmission quality.
✅ Angled Physical Contact (APC) Connector – Reduces back reflection, ensuring stable and reliable performance.
✅ Wide Application Range – Compatible with SM fiber in telecommunications, DWDM, CATV, and fiber optic testing.
✅ Durable & Compact Design – Easy to install and built for long-term use in demanding environments.
Applications:
🔹 Fiber optic network power balancing
🔹 Optical signal testing and measurement
🔹 DWDM and optical amplifier systems
🔹 Laboratory research and fiber optic development
Optimize your fiber optic network with the FC/APC Singlemode Variable Fiber Optical Attenuator (VOA). Contact us for more details or custom specifications!
