Customized 1-24 Fibers OM1/OM2 Multimode LC/SC/ST/FC/IP67/ODC/YZC Industrial Armored TPU Fiber Optic Patch Cable
Explore FiberLife online store for 1-24 Fibers OM1/OM2 Multimode Industrial Armored TPU Fiber Optic Patch Cable in LC/SC/ST/FC/IP67/ODC/YZC, Global sales, Free shipping on orders over $200.
$9.60

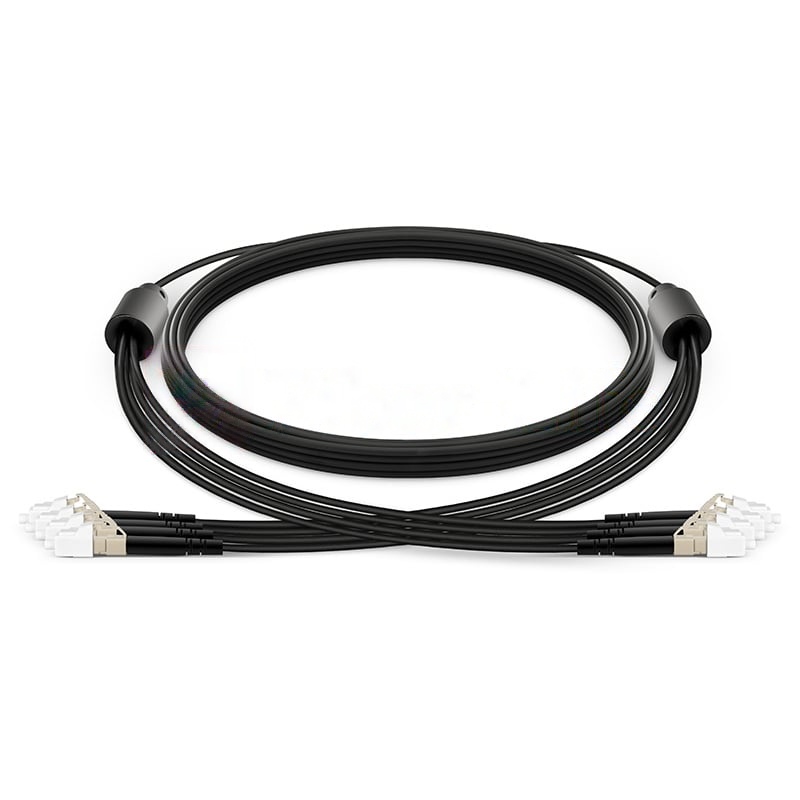

1-24 Fibers OM1/OM2 Multimode LC/SC/ST/FC/IP67/ODC/YZC Industrial Armored TPU Fiber Optic Patch Cable
Armored industrial cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant and wear resistant. Therefore, armored industrial cable is ideal for both indoor and outdoor applications, such as connecting the networks of two buildings through the use of an underground conduit or direct buried.
Product Specification

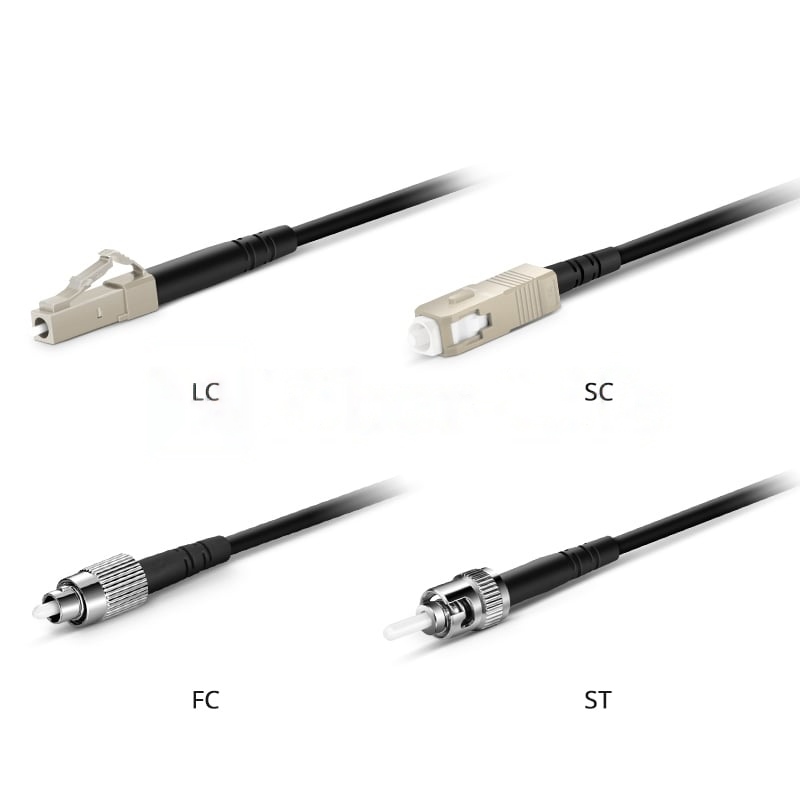

| Connector Type | LC/SC/ST/FC/ODC/YZC/IP67 | Polish Type | UPC To UPC |
| Fiber Mode | OM1/OM2 | Wavelength | 850/1300nm |
| Fiber Count | 1~24 Fibers | Fiber Grade | G.651/Bend Insensitive (OM1/OM2) |
| Min. Dynamic Bend Radius | 20D (mm) | Min. Static Bend Radius | 10D (mm) |
| Insertion Loss (dB) | LC/SC/ST/FC≤0.3dB, ODC/YZC≤1.0dB, IP67 LC/SC≤0.5dB | Return Loss (dB) | ≥20dB |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Crush Resistance (N/100mm) | 1000 (Long Term)/3000 (Short Term) | Impact Resistance | 200 Impacts |
| Flex Resistance | 2000 Cycles | Tensile Load (N) | 200 (Long Term)/600 (Short Term) |
| Breakout Diameter | 3.0mm (1~4 Fibers) 2.5mm (6~24 Fibers) |
Trunk Diameter | 3.0mm-7.0mm |
| Cable Jacket | TPU (Thermoplastic Polyurethane) | Jacket Color | Black |
| Operating Temperature | -40~80°C | Storage Temperature | -40~80°C |
Features

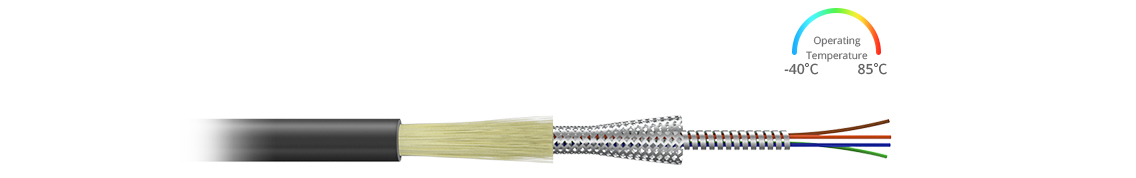

Tough Armor & Durable TPU Protects Network Connection Further
Constructed with a buffered fiber surrounded by an helical stainless steel armor, a layer of kevlar yarn, braiding and TPU outer jacket.
1. Waterproof2. Heat and Cold Resistance3. Rodent Resistance

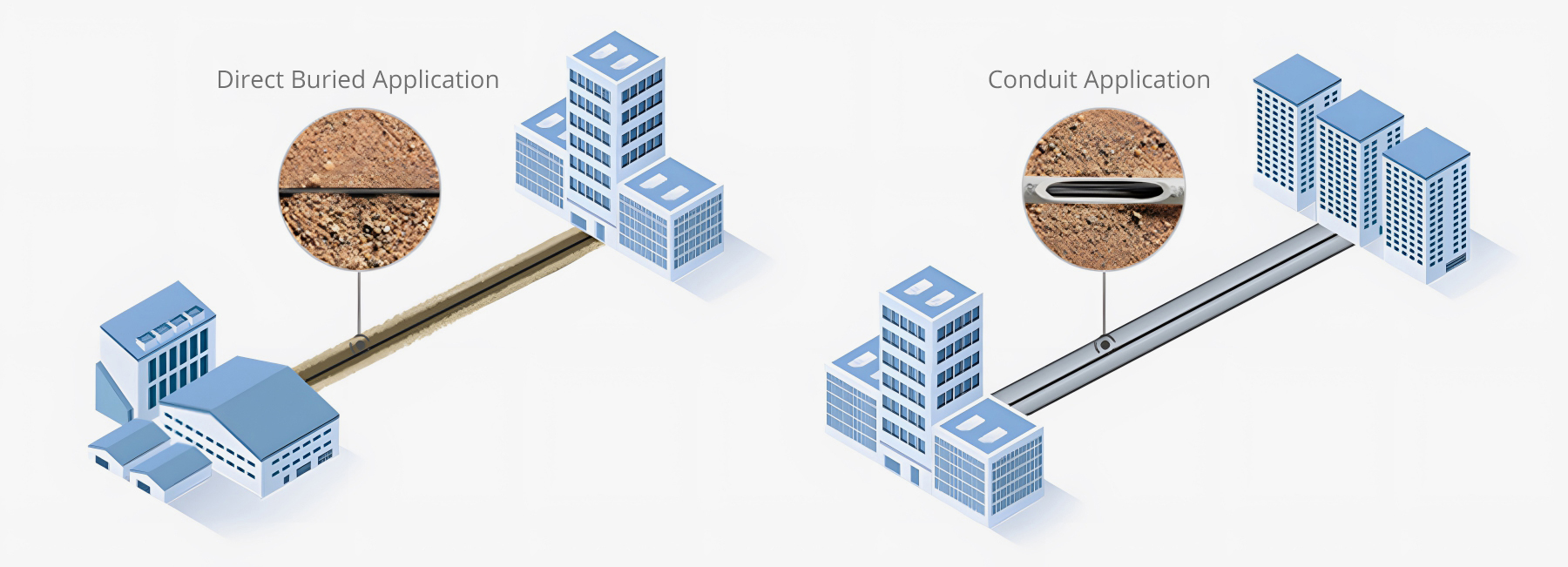

Convenient Direct Burial & Durable Conduits Applications
There are two main outdoor applications for industrial cables. One is to directly bury them underground to reduce wiring costs, and the other is to put them in conduits for more durable.
20/10D Min. Bend Radius200-600N Tensile Strength3000N Crush Strength
The BIF allows tighter cable bends for slack storage and routing.The pull-resistant cable prevents breaking and prolongs the life.The pressure resistance can reduce destruction by external forces.

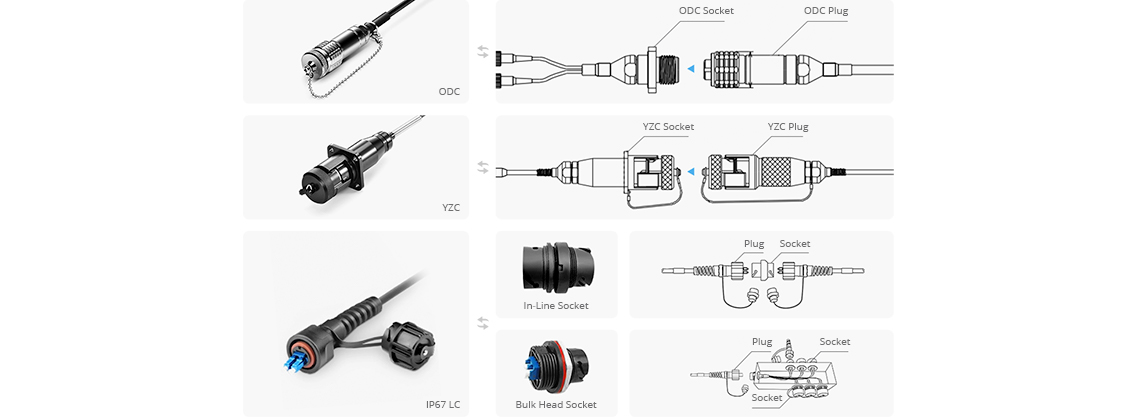

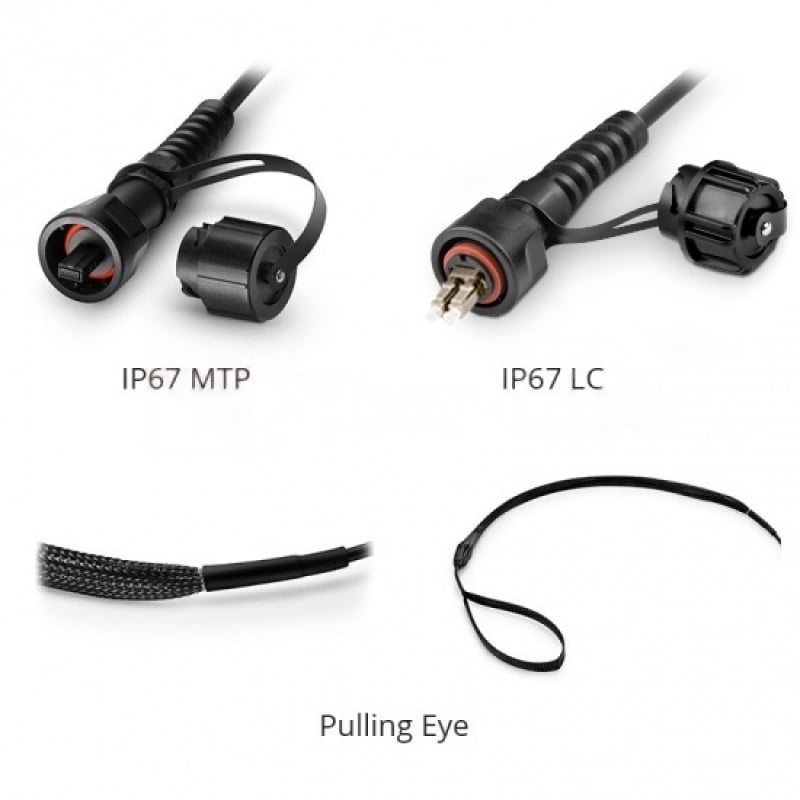

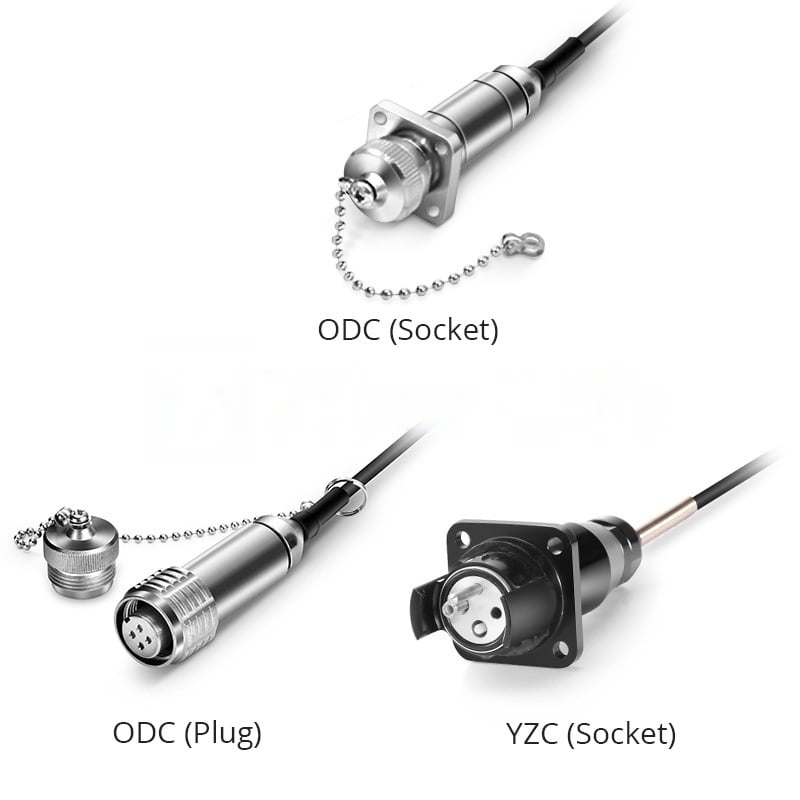

Industrial Cable Connectors for Outdoor Application
Industrial cable connectors can provide good protection for the connection when be used in a water, dust, and corrosion environment.

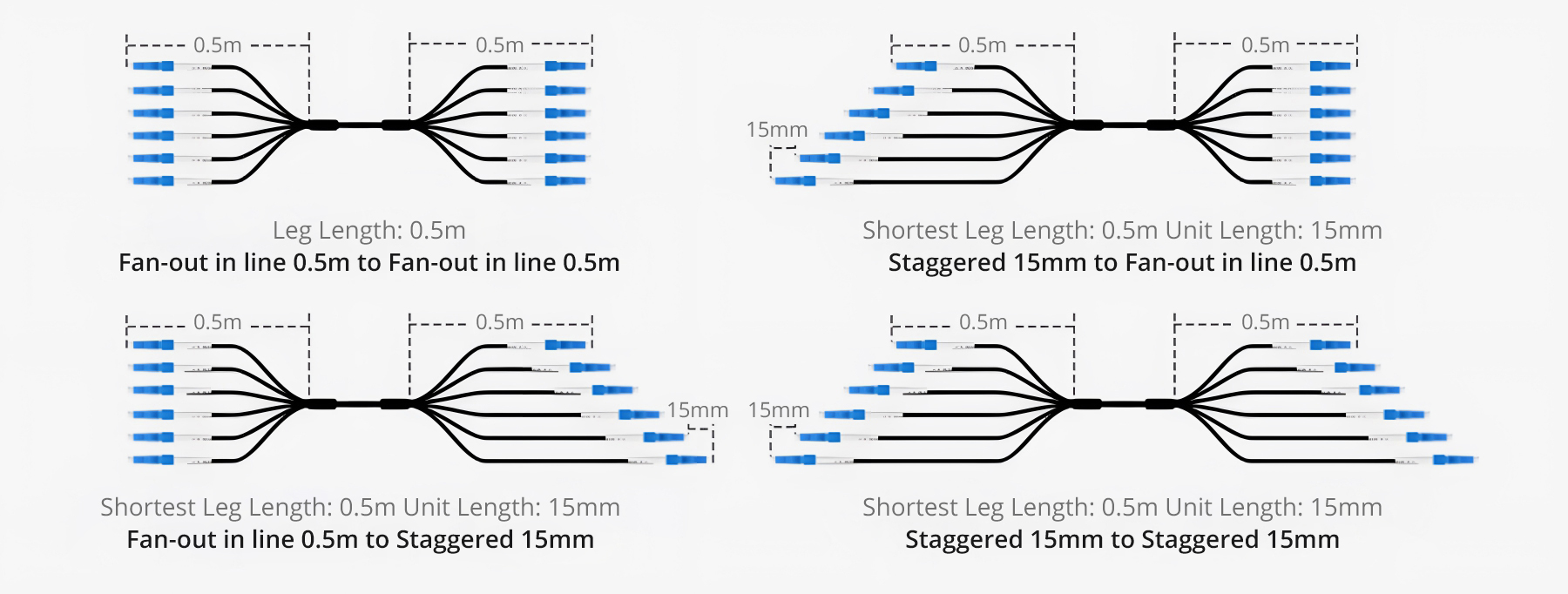

Breakout Types for Optimizing Cable Routing
Four different breakout configurations meet your various needs. Please note that the breakout length is 0.3m by default instead of 0.5m when the total cable length is not more than 3m.
Ideal for Various Harsh Installation Environments
Ideal for harsh situations such as roads & snowfields & industrial fields & construction sites.

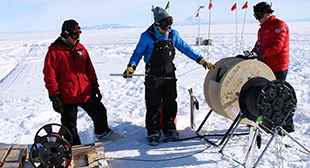

Road WiringSnowfield Wiring

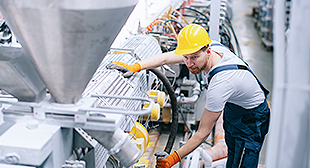

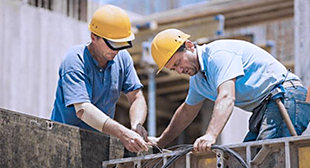

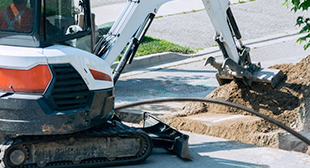

Industrial Field WiringConstruction Site Wiring
