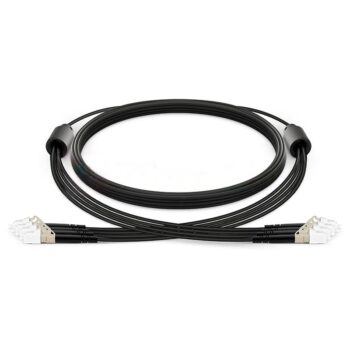

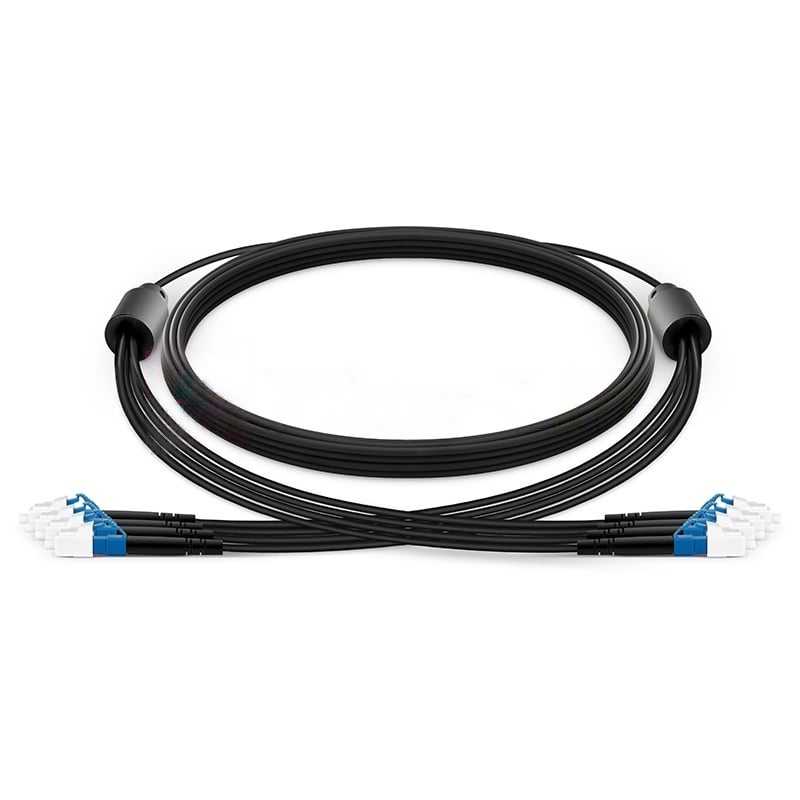

Customized 1-24 Fibers OS2 Single Mode LC/SC/ST/FC/E2000/MTP/IP67/ODC/YZC Industrial Armored TPU Fiber Optic Patch Cable
Explore FiberLife online store for 1-24 Fibers OS2 Single Mode Industrial Armored TPU Fiber Optic Patch Cable in LC/SC/ST/FC/E2000/MTP/IP67/ODC/YZC, Global sales,Free shipping on orders over $200.
$9.40
1-24 Fibers OS2 Single Mode Harsh Environment Industrial Armored TPU Fiber Optic Patch Cable
Armored industrial cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant and wear resistant. Therefore, armored industrial cable is ideal for both indoor and outdoor applications, such as connecting the networks of two buildings through the use of an underground conduit or direct buried.
Product Specification

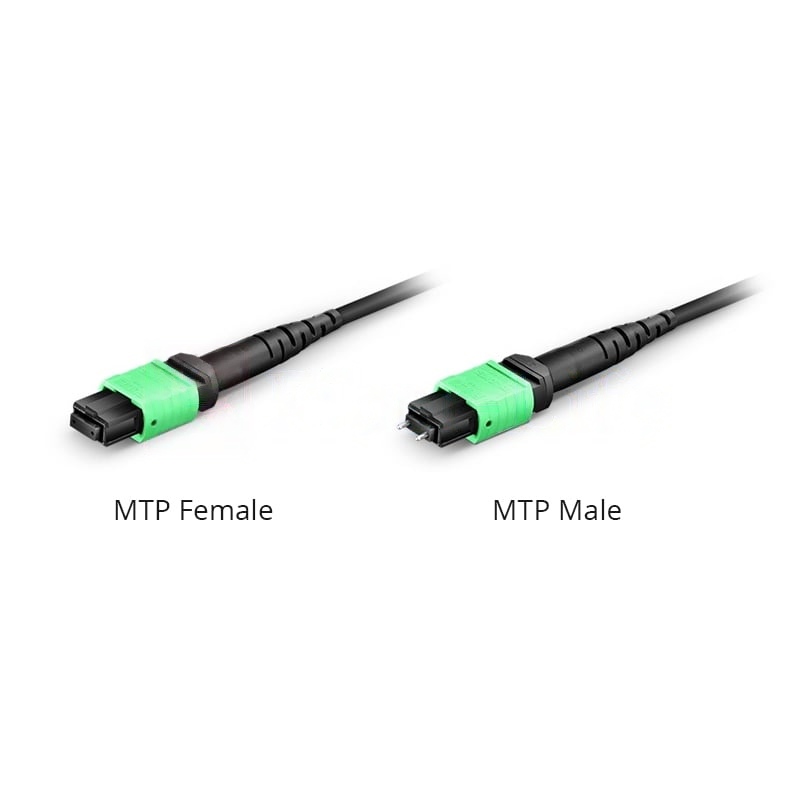

| Connector Type | LC/SC/ST/FC/MTP®/ODC/YZC/IP67 | Polish Type | UPC/APC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Fiber Count | 1~24 Fibers | Fiber Grade | G.657.A2 |
| Min. Dynamic Bend Radius | 20D (mm) | Min. Static Bend Radius | 10D (mm) |
| Insertion Loss (dB) | LC/SC/ST/FC≤0.3, MTP®≤0.35
ODC/YZC≤1.0, IP67 LC/SC≤0.5, IP67 MTP®≤0.35 |
Return Loss (dB) | UPC≥50, APC≥60 |
| Attenuation At 1310nm | 0.36 dB/km | Attenuation At 1300nm | 1.0 dB/km |
| Crush Resistance (N/100mm) | 1000 (Long Term)/3000 (Short Term) | Impact Resistance | 200 Impacts |
| Flex Resistance | 2000 Cycles | Tensile Load (N) | 200 (Long Term)/600 (Short Term) |
| Breakout Diameter | 3.0mm (1~4 Fibers) 2.5mm (6~24 Fibers) |
Trunk Diameter | 3.0mm-7.0mm |
| Cable Jacket | TPU (Thermoplastic Polyurethane) | Jacket Color | Black |
| Operating Temperature | -40~85°C | Storage Temperature | -40~85°C |
Product Highlights

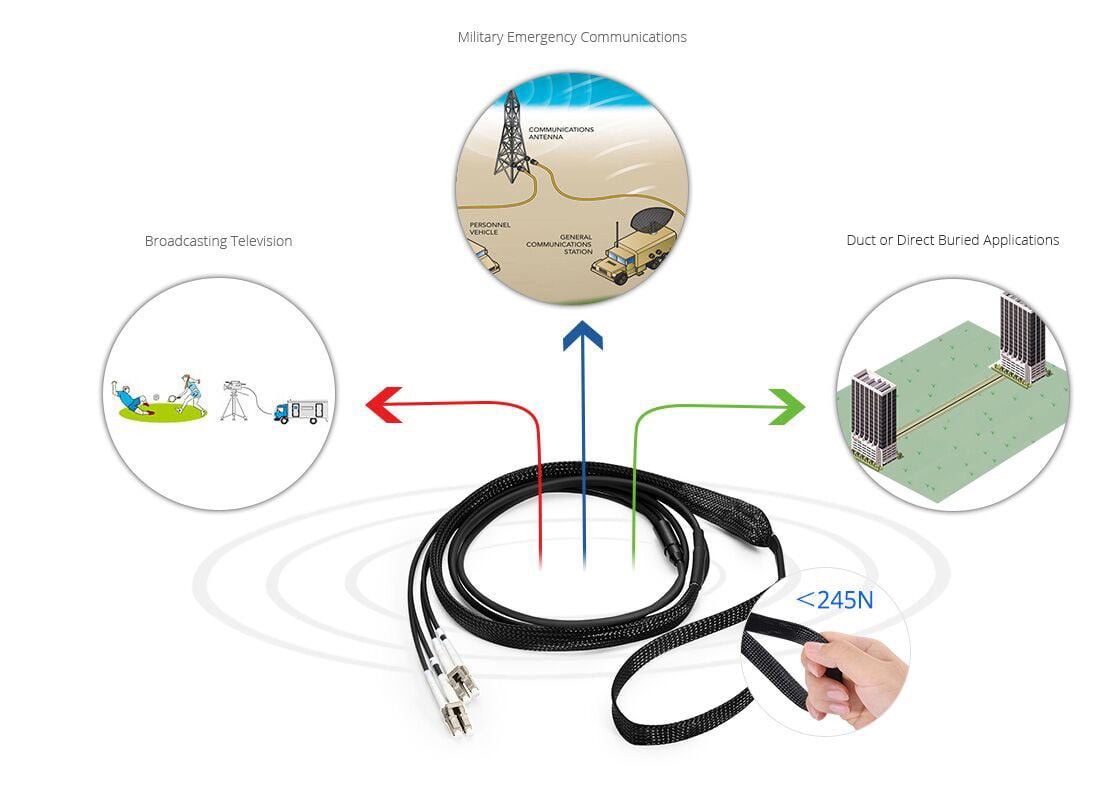

Military Armored Tactical Fiber Patch Cable for Extreme Environments
Perfect for military emergency communications, broadcast television, emergency rush through optical fiber communications, mining and other outdoor applications where protection from moisture, chemicals, corrosive gases, liquids etc. is essential.

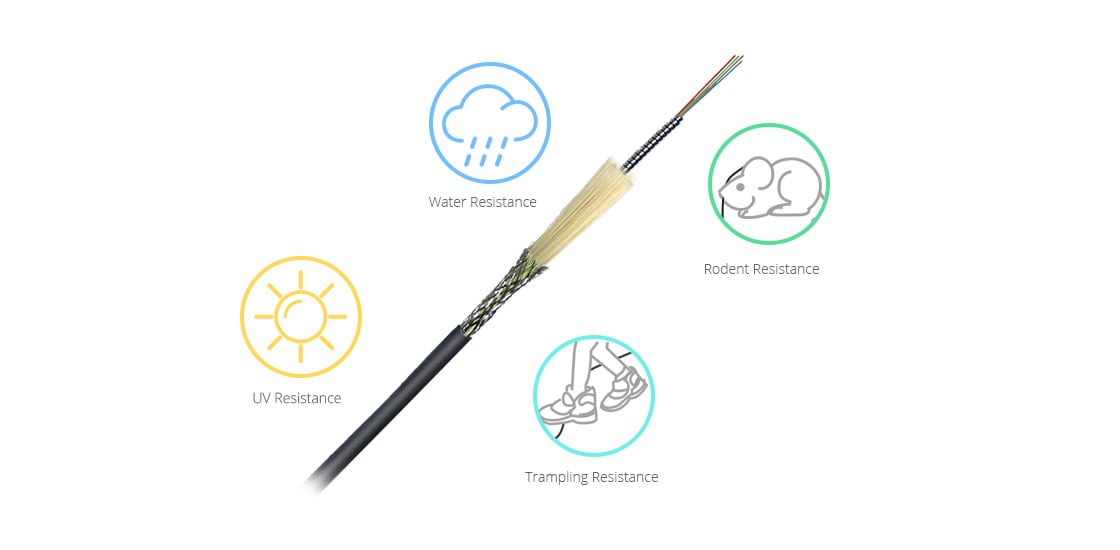

Strong, Lightweight, Armored Tactical Fiber Cable

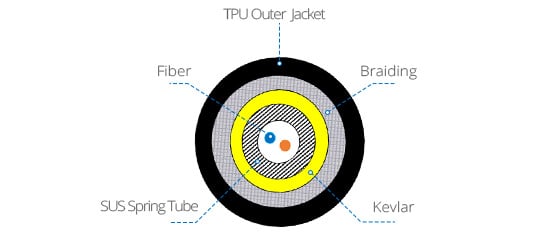

Constructed of SUS spring tube, Kevlar and braiding, it is ideal for military tactical field use, commercial applications etc.

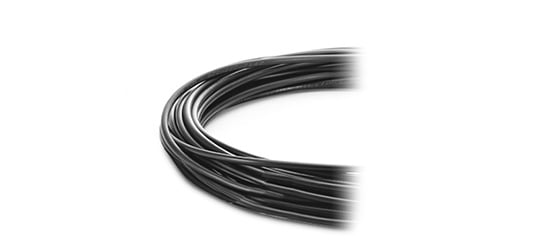

TPU Outer Cable Jacket
Ensures high abrasion resistance, low-temperature performance, high shear strength and high elasticity.
Customized Connectors

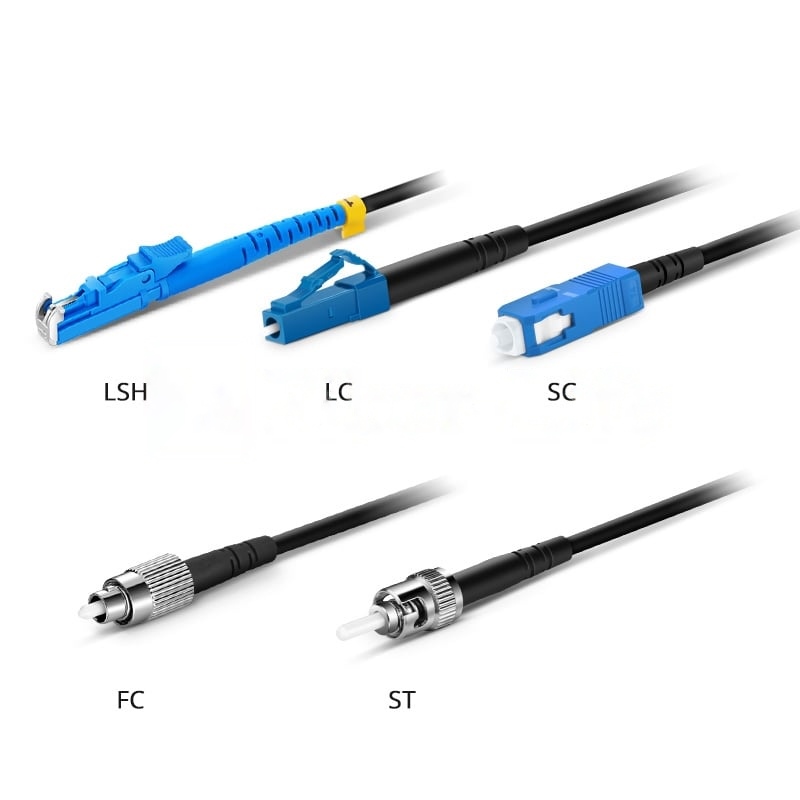

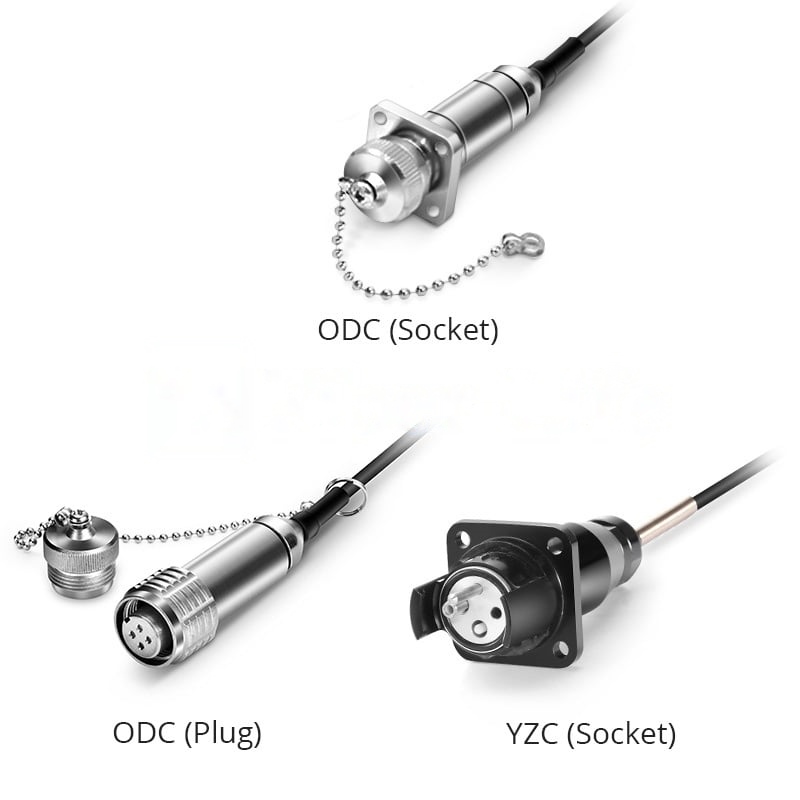

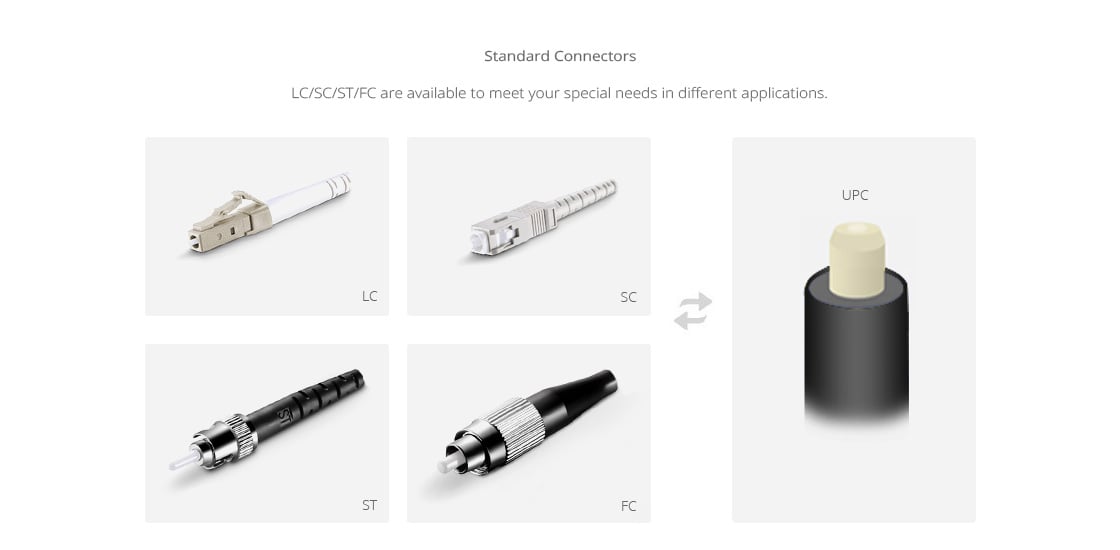

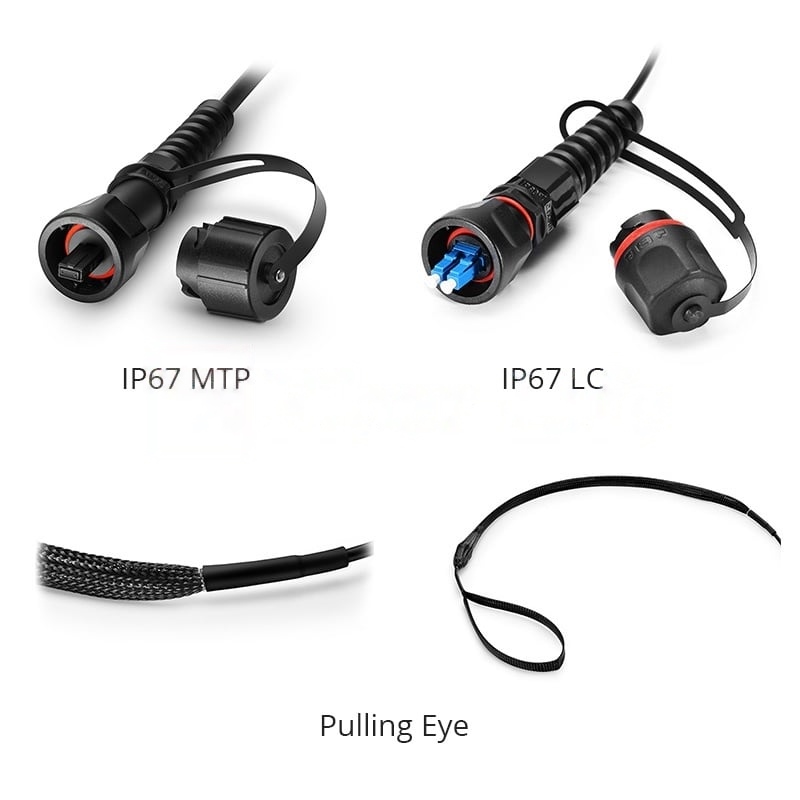

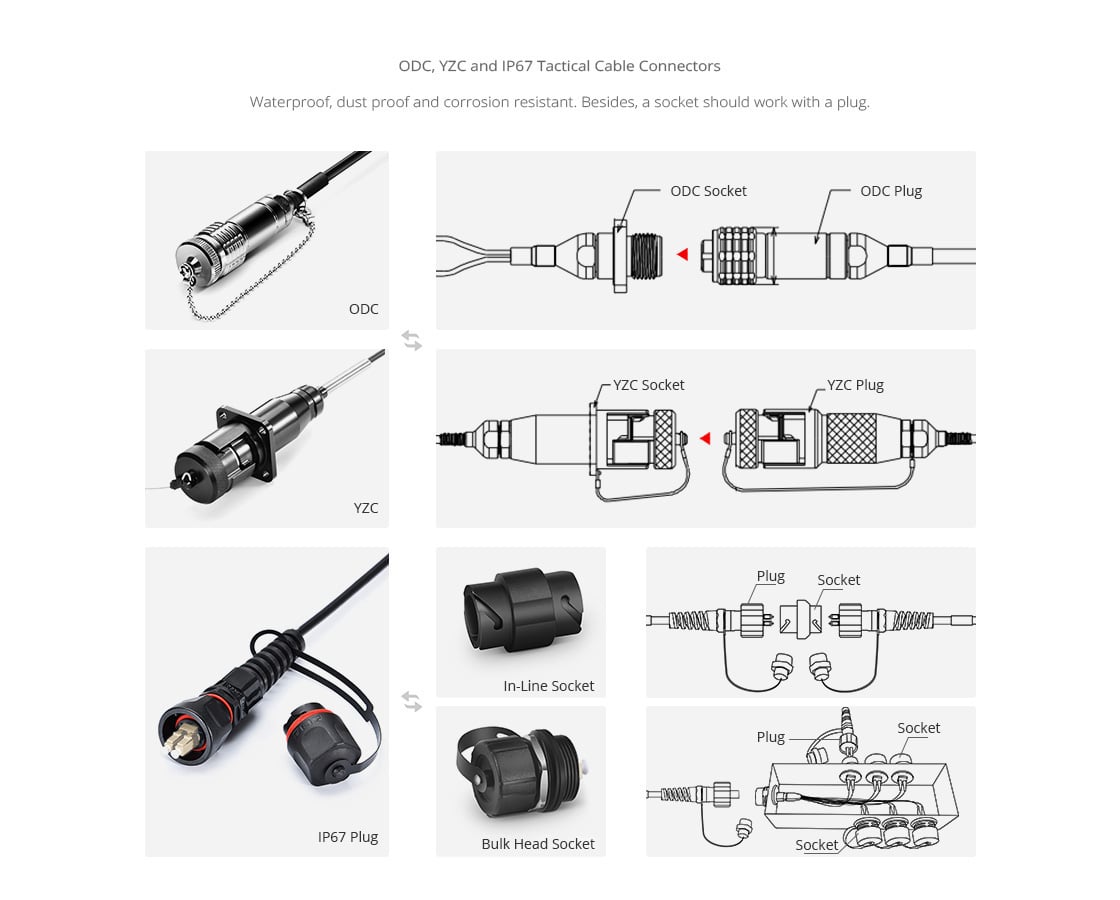

Standard LC/SC/ST/FC connectors, ODC plug/socket, YZC plug/socket and IP67 plug/socket are available to meet your special needs in different applications.

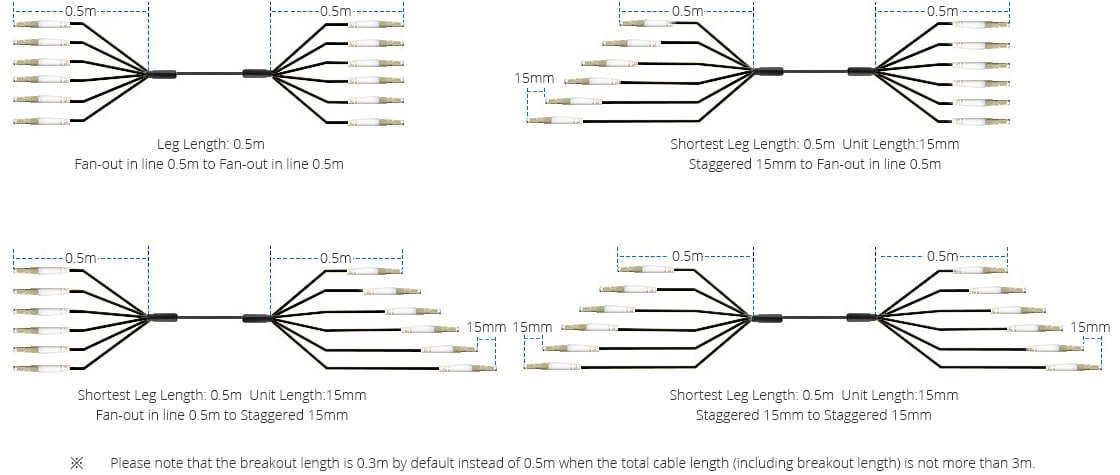

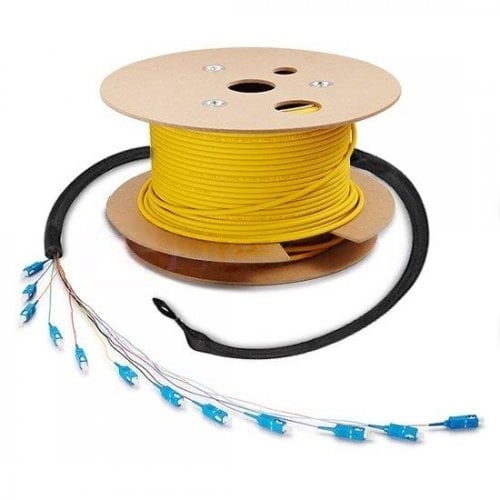

Breakout Types for Optimizing Cable Routing
Four different breakout configurations meet your various needs.
Premium Quality Military Tactical Multifiber Patch Cables, TPU Armored Fiber Cables
The military-grade tactical cable features impact and crush resistance characteristics which comply with military requirements. It is ideal for both indoor and outdoor applications where deployment and retrieval for reuse is required, it can also be used to connect the networks of two buildings through the use of an underground conduit or not.
Related Products

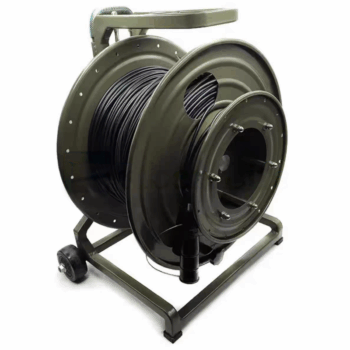

The BX-05 Portable Field Deployable Industrial Metal Fiber Optic Cable Reel, 100-1500m is a robust and mobile solution for managing long-distance fiber optic cable deployments in demanding environments. Built with a durable metal frame, this reel is engineered for industrial use, ensuring long service life and resistance to impact, dust, and moisture. It supports fiber optic cables ranging from 100 to 1500 meters in length, making it ideal for use in field communications, emergency response, broadcast, military operations, and outdoor fiber installations. The reel features a smooth winding mechanism and ergonomic handles for efficient cable deployment and retrieval. Its portable design, often including wheels and a retractable handle, allows for easy transportation across varied terrain. Compatible with single-mode, multimode, and tactical fiber cables, this cable reel is an essential tool for reliable, high-performance fiber connectivity in the field.
Explore FiberLife online store for 1-24 Fibers OM4 Multimode Industrial Armored TPU Fiber Optic Patch Cable with LC/SC/ST/FC/MTP/IP67/ODC/YZC, Global sales, Free shipping on orders over $200.

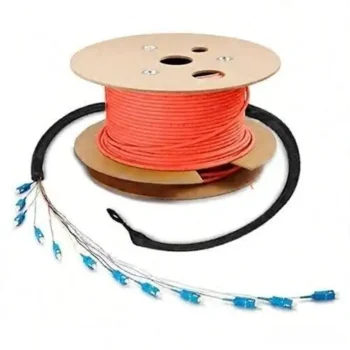

Explore FiberLife online store for 1-24 Fibers OM3 Multimode Industrial Armored TPU Fiber Optic Patch Cable with LC/SC/ST/FC/IP67/ODC/YZC, Global sales, Free shipping on orders over $200.
