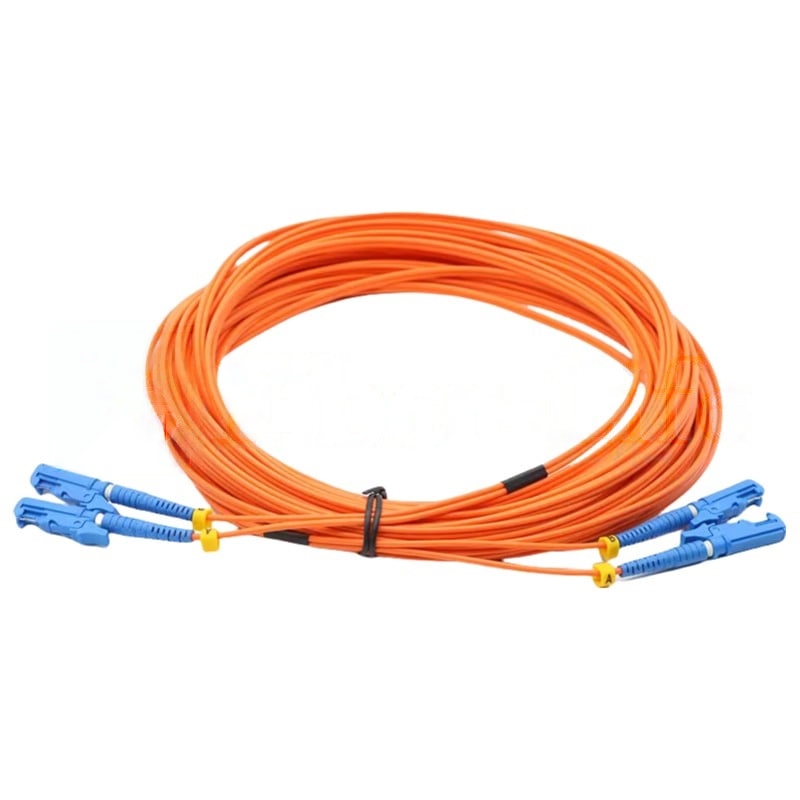

Customized OM2 Multimode Duplex E2000(LSH) Fiber Optic Patch Cable
OM2 Multimode Duplex E2000(LSH) Fiber Optic Patch Cable supports 10Gbps data rates over 550 meters, ensuring reliable bidirectional communication for LANs, data centers, and high-bandwidth applications.
$11.40
Duplex OM2 Multimode E2000(LSH) Fiber Optic Patch Cable
The OM2 Multimode Duplex E2000(LSH) Fiber Optic Patch Cable is designed for medium to short-distance optical communication, featuring a 50-micron core that supports data rates up to 10Gbps over distances of up to 550 meters. Its duplex design includes two fibers for bidirectional data transmission, making it ideal for connecting devices that require simultaneous sending and receiving of data, such as switches and servers.
The E2000 (LSH) connector is equipped with an automatic dust cover to protect against contamination, while ensuring low insertion loss and high return loss for optimal performance and reliability. This cable is widely used in high-bandwidth applications in environments such as Local Area Networks (LANs), data centers, and fiber optic communication networks.
Specifications
| Connector Type | E2000(LSH) | Polish Type | UPC/APC |
| Fiber Count | Duplex | Fiber Mode | OM2 50/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 550m At 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Cable Jacket | PVC/LSZH/OFNP | Cable Diameter | 0.9/2.0/3.0mm |
Features
Long-tail protection
Integrated craftsmanship, high toughness and long thread tail, strong and durable without breaking
Precision polishing
Ensures that the center of the optical fiber is polished
Fiber patch cord testing
There are no scratches or defects on the surface of the optical fiber
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
