Customized OM2 Multimode Duplex LC/SC/FC/ST Fiber Optic Patch Cable
OM2 Multimode Duplex Fiber Optic Patch Cable with 50-micron fiber core is optimized for high-speed data transmission, it supports up to 10Gbps data rates over 550 meters.
$3.50

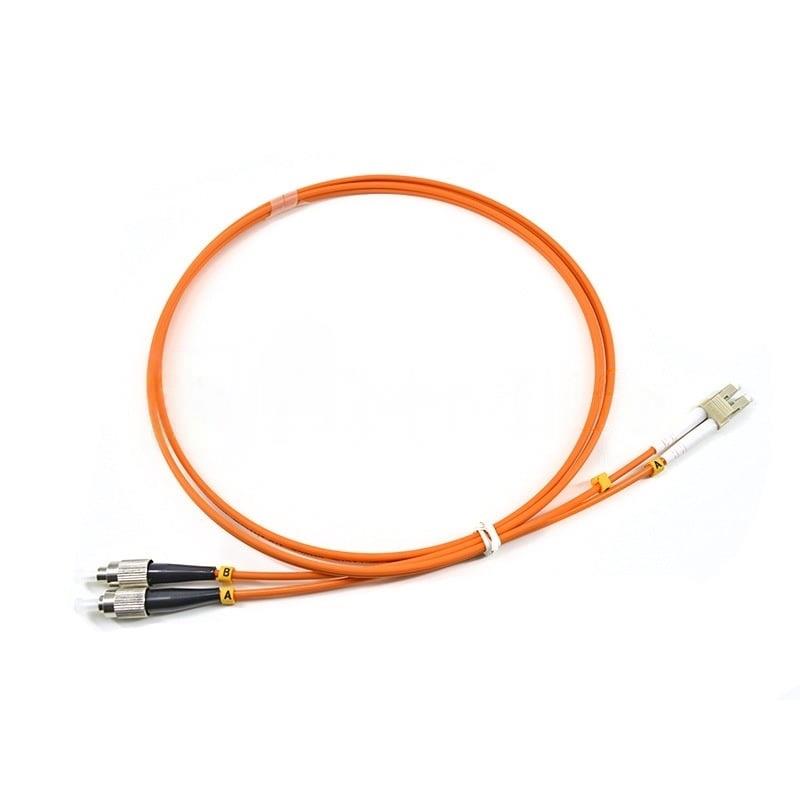

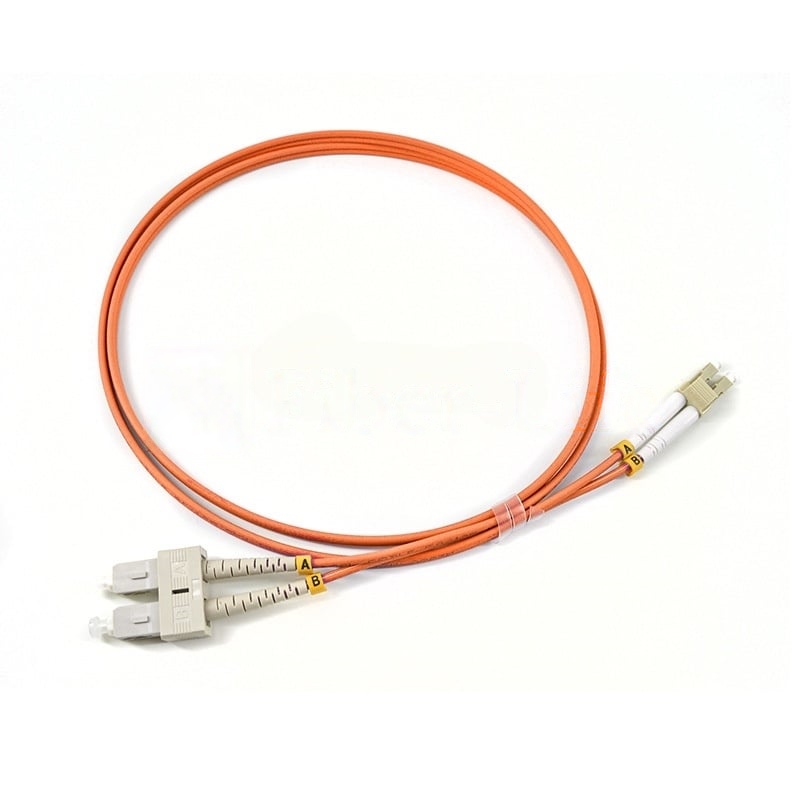

Duplex OM2 Multimode LC/SC/FC/ST Fiber Optic Patch Cable
The OM2 Multimode Duplex Fiber Optic Patch Cable is designed for medium to short-distance optical network connections, featuring a 50-micron core that supports higher bandwidth and longer transmission distances compared to OM1. It handles data rates up to 10Gbps over distances up to 550 meters, making it ideal for applications such as Local Area Networks (LANs), data centers, and Fiber to the Desk (FTTD).
The duplex design includes two fibers for bidirectional data transfer, suitable for connecting network devices like switches, servers, or storage systems. This cable is commonly used for high-speed data transmission in environments requiring enhanced bandwidth and performance.
Specifications
| Connector Type | LC/SC/ST/FC | Polish Type | UPC/APC |
| Fiber Count | Duplex | Fiber Mode | OM2 50/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 550m At 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5mm |
| Cable Jacket | PVC/LSZH/OFNP | Cable Diameter | 0.9/2.0/3.0mm |
Features
Long-tail protection
Integrated craftsmanship, high toughness and long thread tail, strong and durable without breaking
Precision polishing
Ensures that the center of the optical fiber is polished
Fiber patch cord testing
There are no scratches or defects on the surface of the optical fiber
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
