E2000/APC To E2000/APC Simplex OS2 Singlemode Fiber Patch Cable
E2000/APC to E2000/APC Simplex OS2 Singlemode Fiber Patch Cable – Low-loss, high-performance fiber optic cable with dust-proof shutters. Ideal for telecom, FTTH, and data center networks. Shop now!
- Delivery & Return
Delivery
FREE Shipping for US$200 above orders FREE
1-3 working days ship from U.S. or HK by UPS/FedEx/DHLHome or collection point from £35.00 FREE
On all your orders for home or collection point deliveryReturns
Return
We will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period).Returns in store FREE
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed. Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed. - Ask a Question
$10.56
E2000/APC to E2000/APC Simplex OS2 Singlemode Fiber Patch Cable – High-Precision, Low-Loss Fiber for Long-Distance Networks
The E2000/APC to E2000/APC Simplex OS2 Singlemode Fiber Patch Cable is designed for ultra-low loss and high-reliability optical connections. Featuring E2000/APC connectors with automatic shutters, this cable provides enhanced protection against dust and laser exposure, ensuring stable performance in telecom, data centers, and industrial fiber networks.
Specifications
| Connector A | E2000 APC | Connector B | E2000 APC |
| Fiber Count | 1 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 Singlemode 9/125μm | Wavelength | 1310/1550nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 60/100N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥75dB |
| Operating Temperature | -20°C ~ +70°C | Storage Temperature | -40°C ~ +80°C |
Key Features:
✅ OS2 9/125μm Singlemode Fiber – Supports long-distance transmission, ideal for up to 10km (10G) and 40km+ (100G) applications.

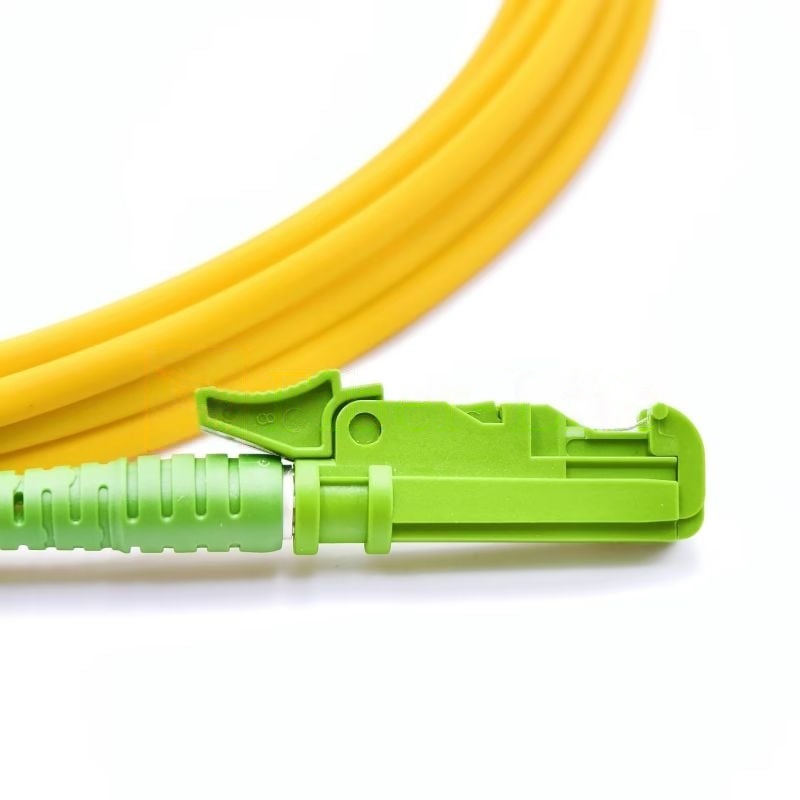

✅ E2000/APC Connectors – Equipped with automatic dust shutters and angled physical contact (APC) polishing.
✅ High-Quality Performance – Ensures minimal signal loss and excellent stability, making it perfect for critical optical communication networks.
✅ Durable & Safe Materials – Available in PVC and LSZH jackets with selectable 2.0mm and 3.0mm diameters for flexible deployment.
✅ Wide Application – Ideal for FTTH, CATV, DWDM, SDH, and backbone fiber networks, supporting high-bandwidth data transmission.
Choose FiberLife’s premium E2000(APC) OS2 simplex patch cables for a secure, high-performance fiber optic connection in demanding network environments.
