LC/UPC To LC/UPC Duplex OS2 Singlemode Fiber Patch Cable
Buy LC/UPC To LC/UPC Duplex OS2 Singlemode Fiber Patch Cable for high-speed 10G/40G/100G/400G networks. Low insertion loss, high stability, and durable OS2 fiber for data centers, FTTH, and enterprise applications. Shop now at FiberLife!
$4.68

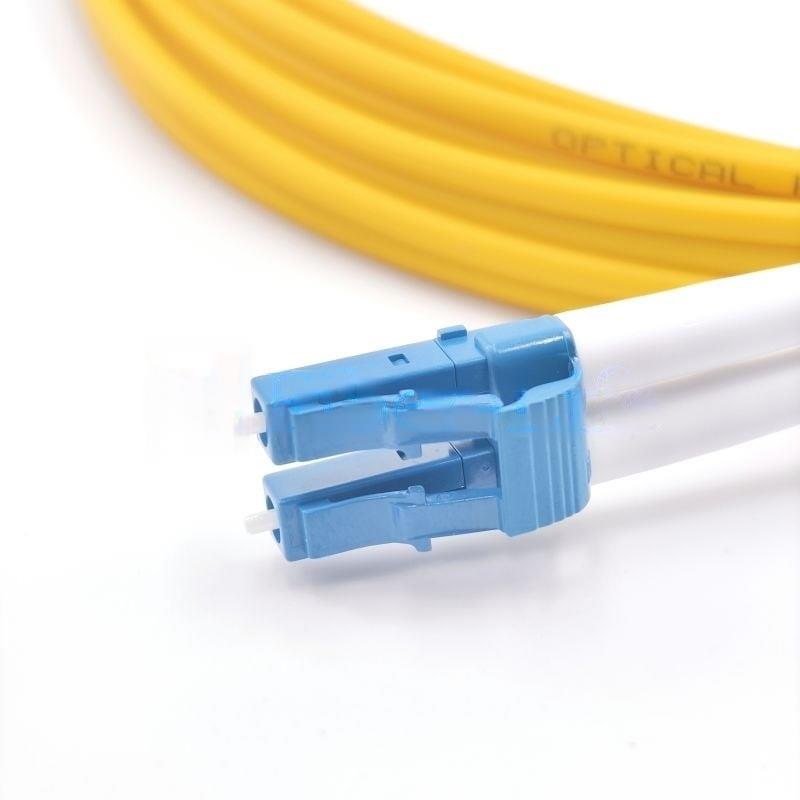

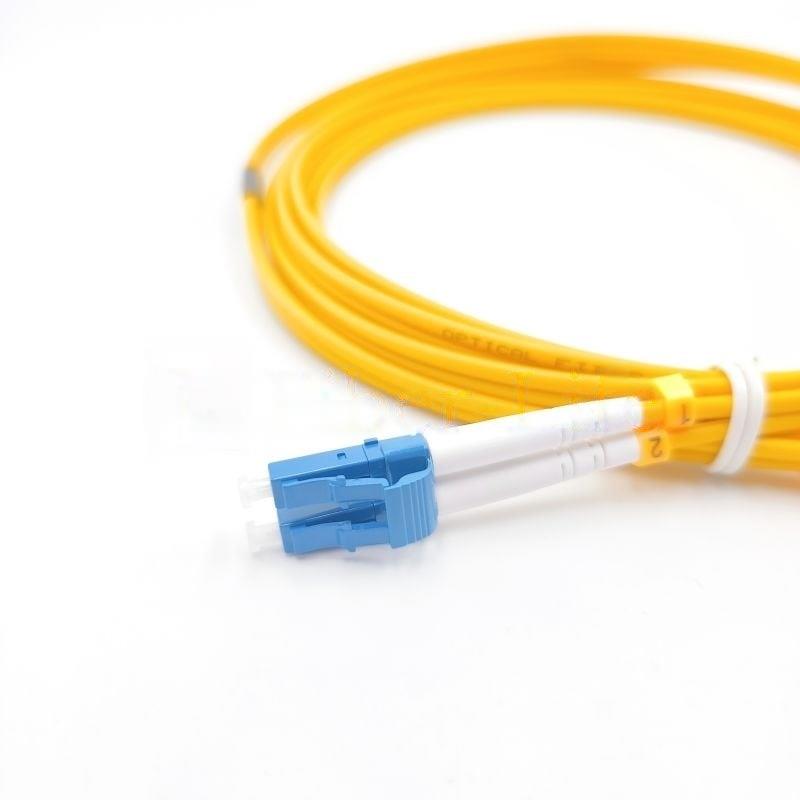

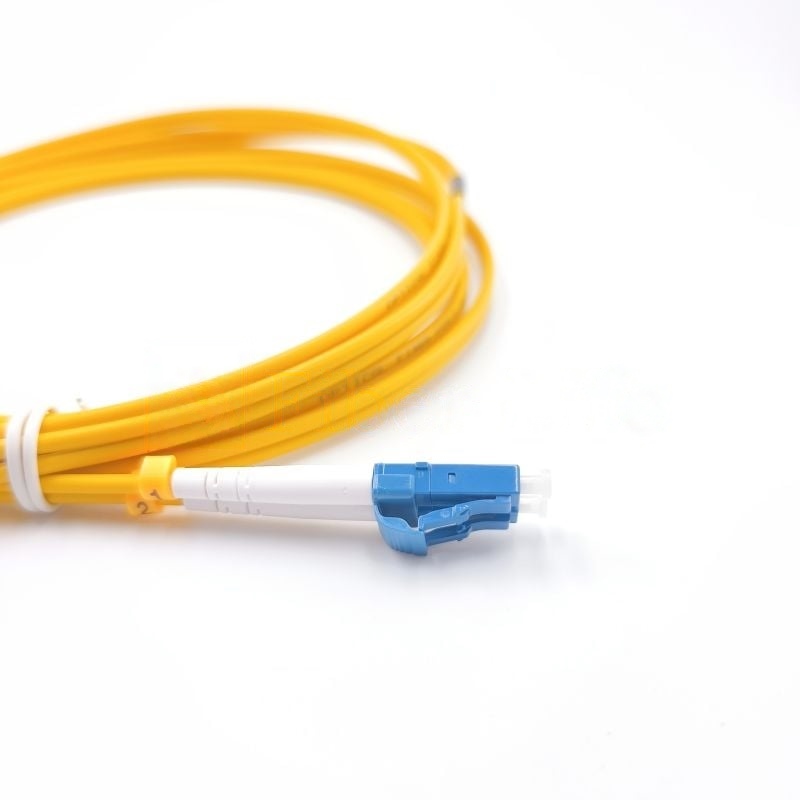

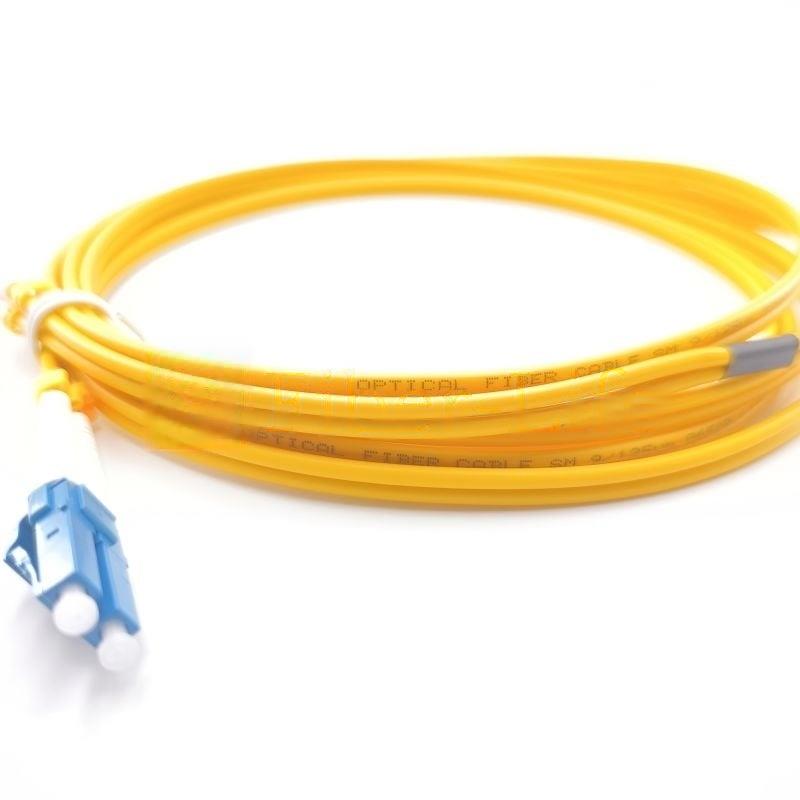

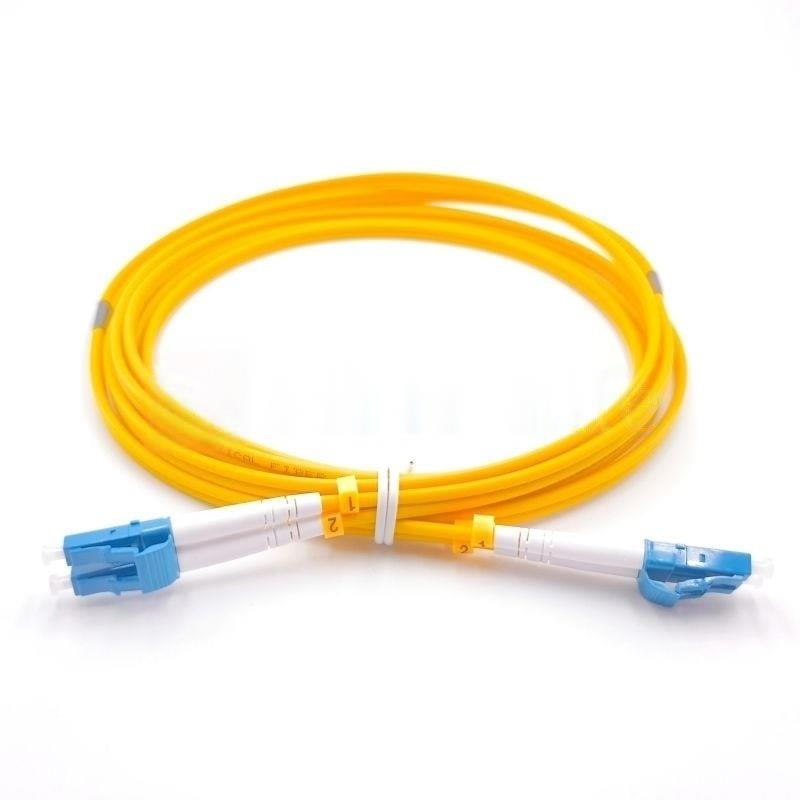

LC/UPC To LC/UPC Duplex OS2 Singlemode Fiber Patch Cable – High-Performance Low-Loss Fiber Patch Cord
The LC/UPC To LC/UPC Duplex OS2 Singlemode Fiber Patch Cable from FiberLife is designed for high-speed optical networks, supporting 10G, 40G, 100G, and 400G applications. Made with premium OS2 singlemode fiber, this patch cable ensures low insertion loss (≤0.3dB) and high return loss (≥50dB), providing stable signal transmission for data centers, FTTH, enterprise networks, and telecom base stations. Its high-precision LC/UPC connectors guarantee excellent connectivity and long-lasting durability.
Specifications
| Connector A | LC UPC | Connector B | LC UPC |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 Singlemode 9/125μm | Wavelength | 1310/1550nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Operating Temperature | -20°C ~ ＋70°C | Storage Temperature | -40°C ~ ＋80°C |
Key Features:
✅ High-Quality OS2 Singlemode Fiber – 9/125μm fiber optimized for 1310nm and 1550nm wavelengths, supporting transmission distances of up to 10km (1310nm) or 40km (1550nm).
✅ Low Insertion Loss & High Stability – LC/UPC connectors with precise polishing ensure minimal signal loss and efficient data transmission.
✅ Duplex Structure for Bidirectional Transmission – Enhances network performance by enabling simultaneous data transfer.
✅ Durable Jacket Options – Available in PVC (OFNR) and LSZH materials to meet various installation requirements.
✅ Wide Compatibility – Fully compatible with fiber optic transceivers, switches, routers, optical terminals, and networking equipment from various brands.
Applications:
🔹 Data Centers – Reliable high-speed connections for long-distance data transmission.
🔹 Telecom & FTTH – Ideal for fiber-to-the-home (FTTH), base station, and backbone network applications.
🔹 Enterprise & Campus Networks – Supports cloud computing, video conferencing, and high-performance networking.
Why Choose FiberLife Fiber Patch Cables?
FiberLife is committed to providing high-quality fiber optic solutions. Our LC/UPC To LC/UPC Duplex OS2 Singlemode Fiber Patch Cable undergoes rigorous testing to ensure superior performance and durability, making it the perfect choice for high-speed optical networks.
