QSFP-DD 200GBASE-2SR4 850nm 100m DOM MPO-24 MMF Optical Transceiver Module, Dell Q28DD-200G-2SR4 Compatible
Explore FiberLife online store for QSFP-DD 200GBASE-2SR4 850nm 100m DOM MPO-24 MMF Optical Transceiver Module, Dell Q28DD-200G-2SR4 Compatible, Global sales, Free shipping on orders over $200.
$521.00

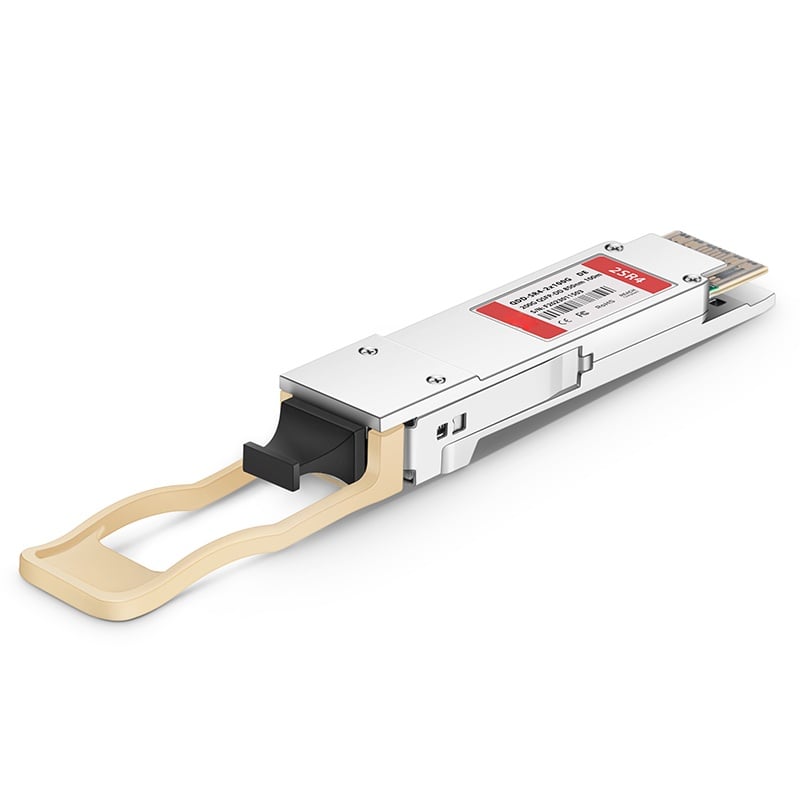

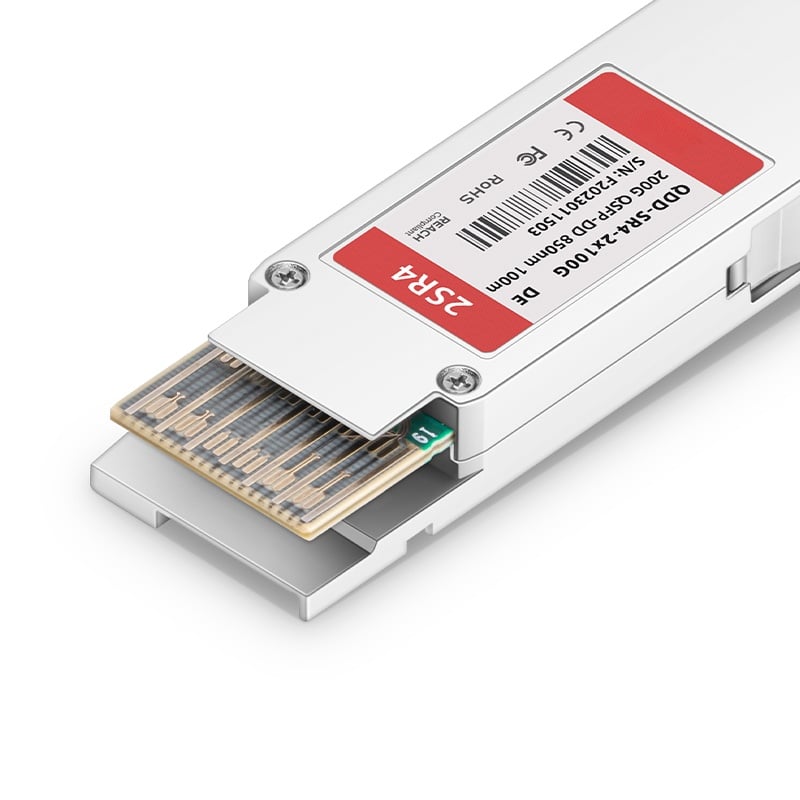

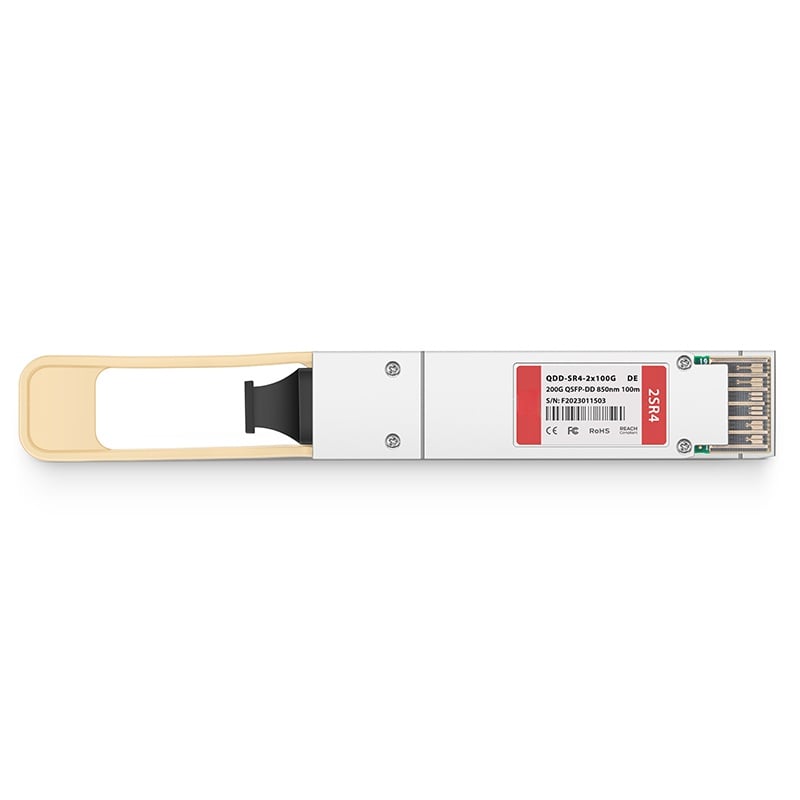

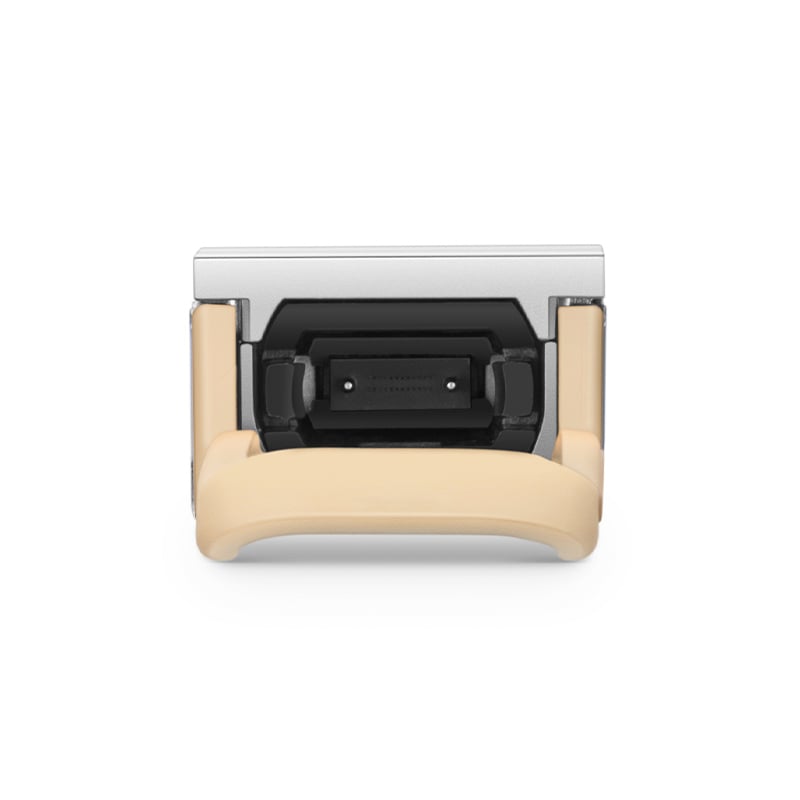

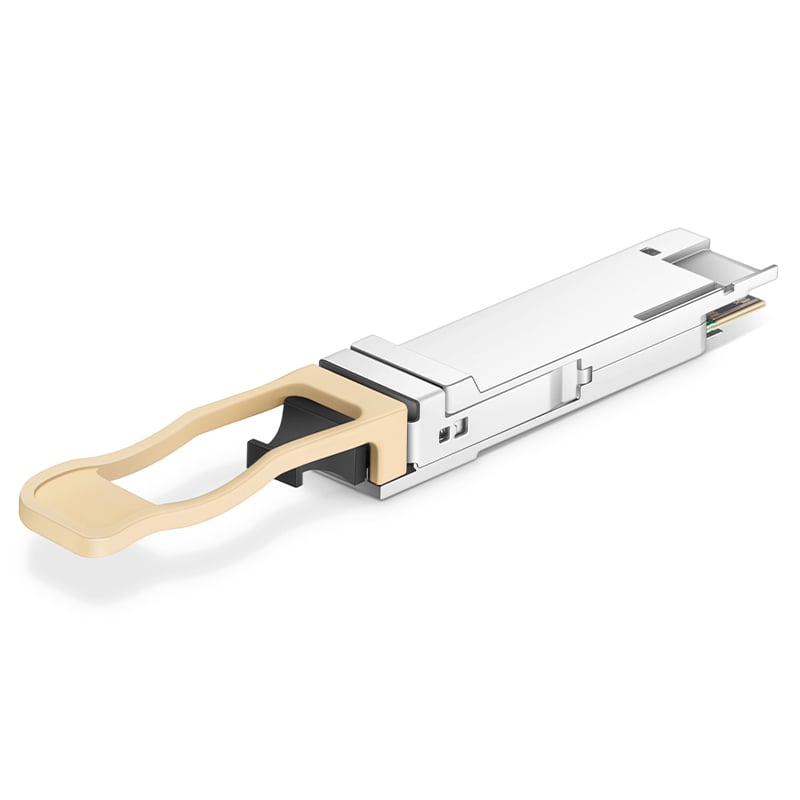

Dell Q28DD-200G-2SR4 Compatible 200GBASE-2SR4 QSFP-DD Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO-24, DOM)
The Dell Q28DD-200G-2SR4 Compatible QSFP-DD transceiver supports up to 100m link lengths over multimode fiber (MMF) via MTP/MPO-24 connectors.
This transceiver is compliant with IEEE 802.3bm and QSFP-DD MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 2×100GBASE-SR4 Ethernet, Data Centers and Switch & Router Connections.
Specifications
| Dell Compatible | Q28DD-200G-2SR4 | Vendor Name | FiberLife |
| Form Factor | QSFP-DD | Max Data Rate | 206.24Gbps(8x 25.78Gbps) |
| Wavelength | 850nm | Max Cable Distance | 100m |
| Connector | MTP/MPO-24 | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -8.4~2.4dBm | Receiver Sensitivity | ＜-10.3dBm |
| Power budget | 1.9dB | Receiver Overload | 3.4dBm |
| Power Consumption | ≤4.5W | Extinction Ratio | ＞2dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 To 70°C (32 To 158°F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
| Protocols | IEEE 802.3bm, QSFP-DD MSA Compliant, CMIS 4.0 | Warranty | 5 Years |
Quality Certifications
.svg "QSFP-DD 200GBASE-2SR4 850nm 100m DOM MPO-24 MMF Optical Transceiver Module, Dell Q28DD-200G-2SR4 Compatible 5")
Please Note:Â Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
