QSFP56 200GBASE-SR4 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module, Arista Networks Compatible
Explore FiberLife online store for QSFP56 200GBASE-SR4 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module, Arista Networks Compatible, Global sales, Free shipping on orders over $200.
$239.00
Arista QSFP-200G-SR4 Compatible 200GBASE-SR4 QSFP56 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)
The Arista QSFP-200G-SR4 Compatible QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, CMIS Rev 4.0 & SFF-8665 standards. Digital diagnostics functions are available via the I2C interface. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.
Specifications
| Part Number | QSFP-200G-SR4 | Vendor Name | FiberLife |
| Form Factor | QSFP56 | Max Data Rate | 200Gbps |
| Wavelength | 850nm | Max Cable Distance | 70m@OM3/100m@OM4 |
| Connector | MTP/MPO-12 UPC | Media | MMF |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | -3~3dBm | Receiver Sensitivity | -6.5dBm |
| Power budget | 3.5dBm | Receiver Overload | 5dBm |
| Typical Power Consumption | ≤5W | Extinction Ratio | 3dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 To 70°C (32 To 158°F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | No |
| Protocols | IEEE 802.3bs, QSFP56 MSA, SFF-8665, CMIS Rev 4.0 | Warranty | 5 Years |
Quality Certifications
.svg "QSFP56 200GBASE-SR4 850nm 100m DOM MPO-12/UPC MMF Optical Transceiver Module, Arista Networks Compatible 5")
Please Note:Â Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
Features
Low Power Consumption for Energy-saving

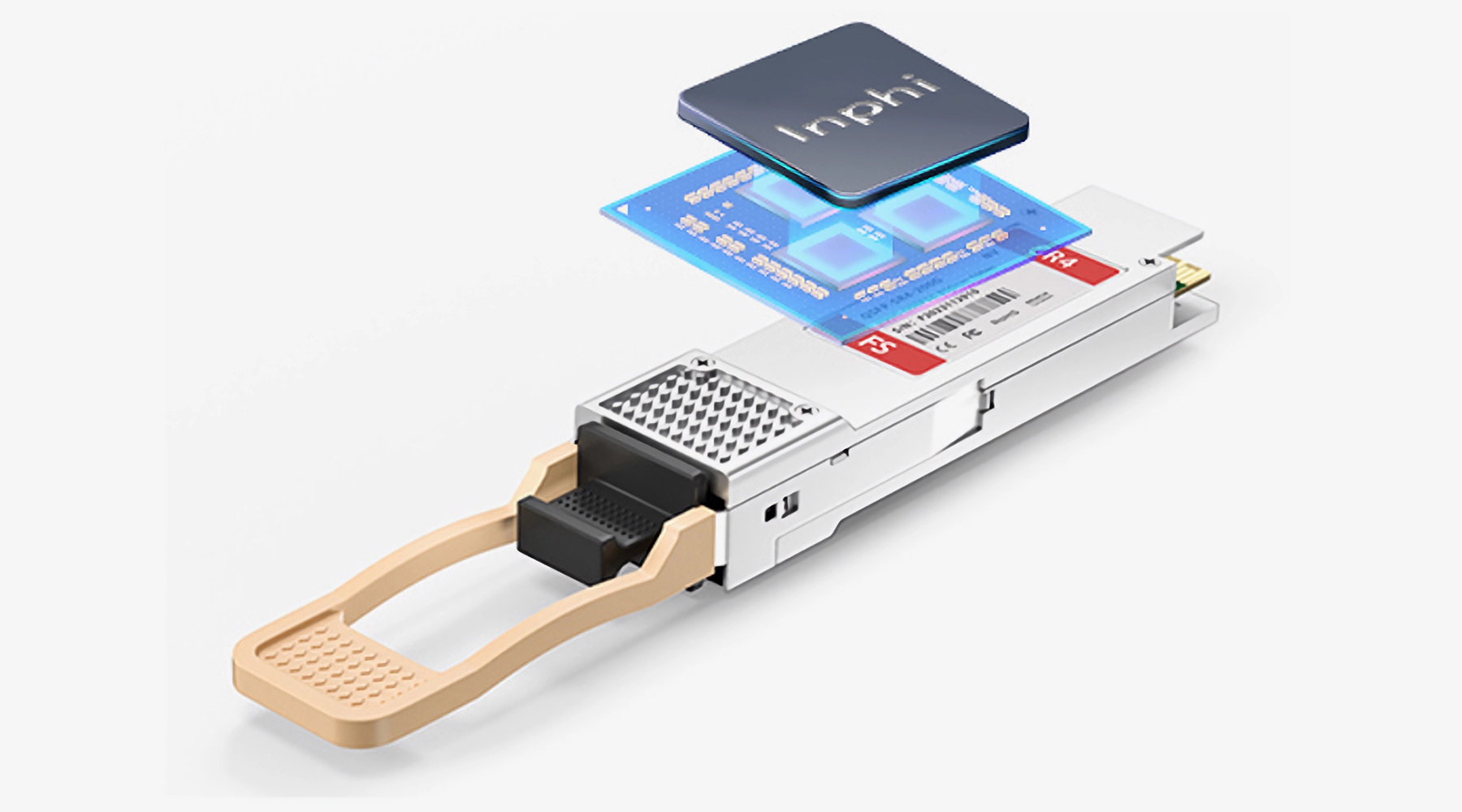

Built-in Inphi Chip enables 200G stable transmission and low power consumption, saving energy and reducing heat dissipation.
Inphi Chip<5W200GbpsStable TransmissionLower Power ConsumptionHigh-performance
