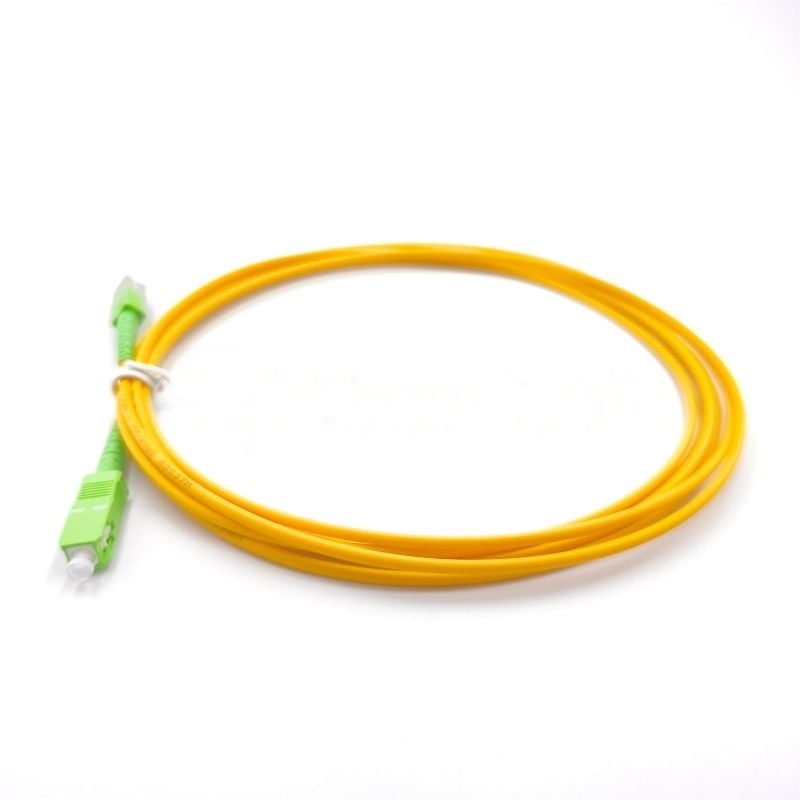

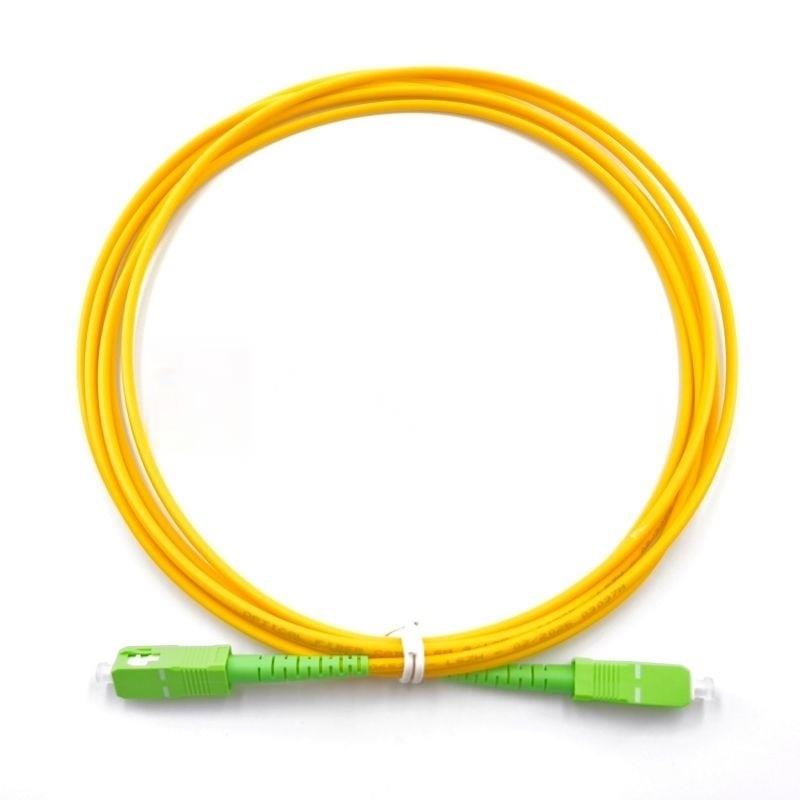

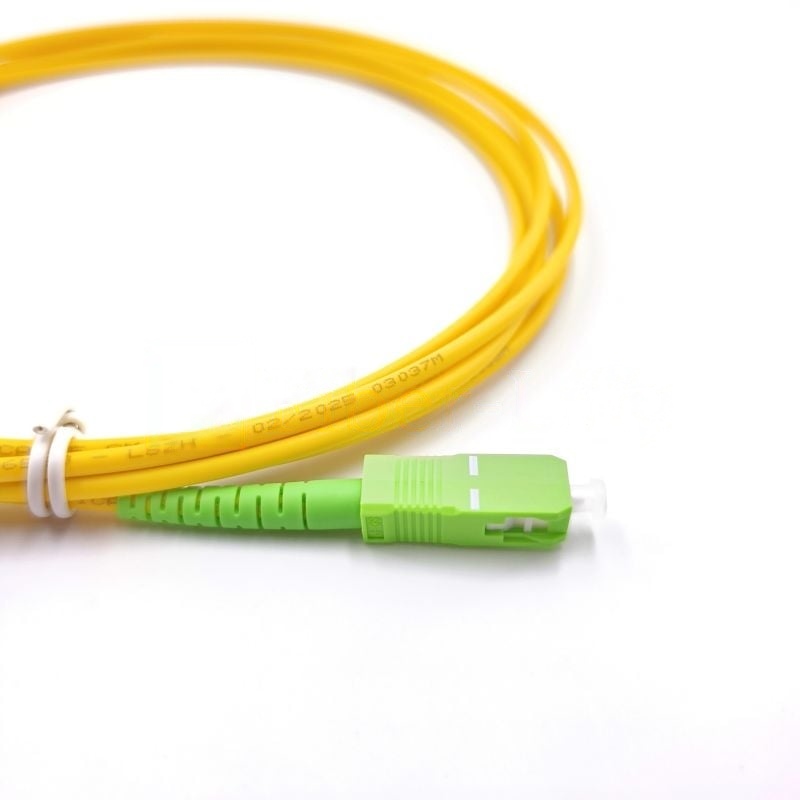

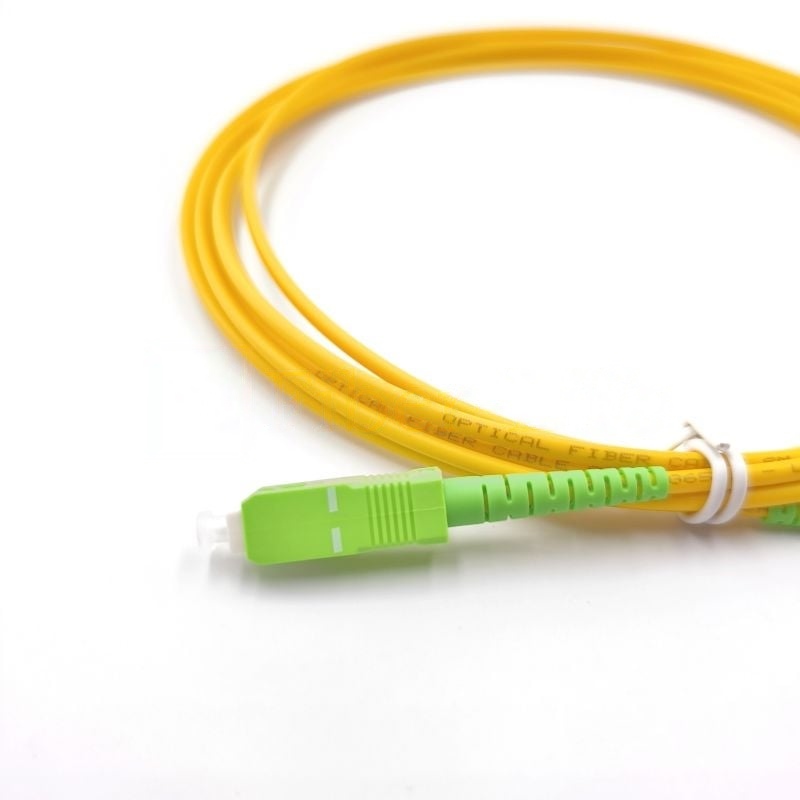

SC/APC To SC/APC Simplex OS2 Singlemode Fiber Patch Cable
Buy FiberLife SC/APC to SC/APC Simplex OS2 Singlemode Fiber Patch Cable for ultra-low loss and high-precision optical transmission. PVC or LSZH jacket. Upgrade your fiber connectivity today!
$2.34
SC/APC to SC/APC Simplex OS2 Singlemode Fiber Patch Cable | Low Loss & High Precision | Ideal for Long-Distance Optical Networks
The FiberLife SC/APC to SC/APC Simplex OS2 Singlemode Fiber Patch Cable is engineered for ultra-low loss and high-precision optical signal transmission. Designed for long-distance telecommunications, data centers, enterprise networks, and FTTH applications, this G.657.A1 9/125μm OS2 fiber cable ensures minimal attenuation and high signal integrity. The SC/APC connectors provide superior return loss performance, making them ideal for applications that demand low reflection, such as PON (Passive Optical Network) and CATV.
Specifications
| Connector A | SC APC | Connector B | SC APC |
| Fiber Count | 1 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 Singlemode 9/125μm | Wavelength | 1310/1550nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 60/100N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Operating Temperature | -20°C ~ ＋70°C | Storage Temperature | -40°C ~ ＋80°C |
Key Features:
✅ High-Quality OS2 9/125μm Fiber: Optimized for 1310nm and 1550nm wavelengths, ensuring stable and long-range optical transmission.

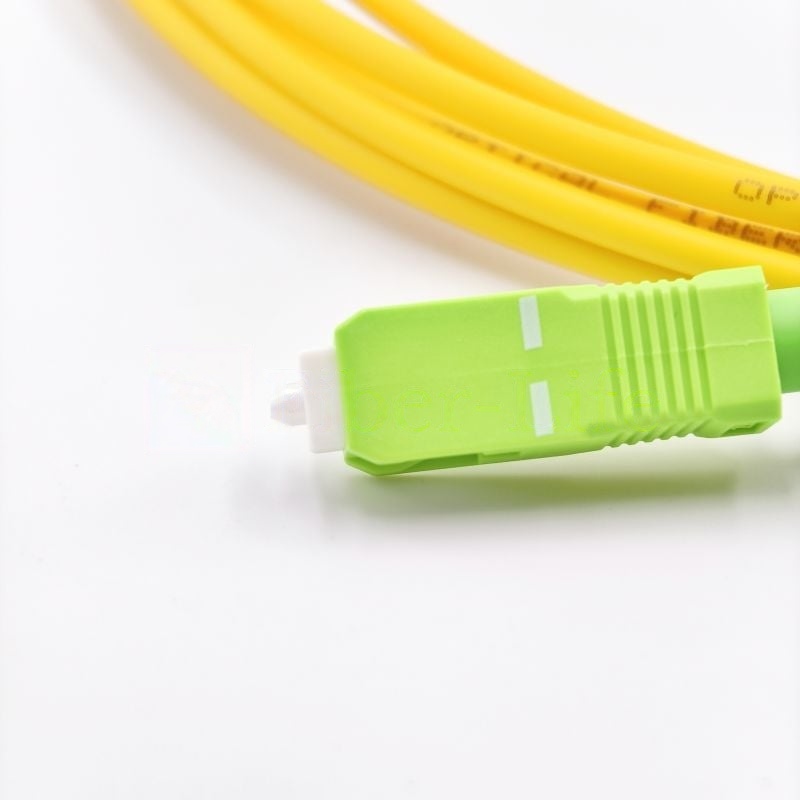

✅ SC/APC Connectors with Ultra-Low Reflection: Angled Physical Contact (APC) polishing maximizes return loss (≥60dB), preventing signal degradation.
✅ Simplex Design: Single-fiber transmission for efficient and reliable point-to-point optical connections.
✅ Durable and Flexible Outer Jacket: Available in PVC (OFNR) or LSZH (Low-Smoke Zero-Halogen) to meet different installation requirements.
✅ Multiple Cable Diameters Available: Choose from 2.0mm or 3.0mm to suit various network environments.
✅ Wide Compatibility: Works with fiber transceivers, OLT/ONT equipment, optical splitters, and other SC/APC-terminated devices.
Application Scenarios:
🔹 Passive Optical Networks (PON) – GPON, EPON
🔹 CATV and FTTH (Fiber to the Home) deployments
🔹 Long-haul telecommunications and backbone networks
🔹 High-precision optical measurement systems
The FiberLife SC/APC to SC/APC Simplex OS2 Singlemode Fiber Patch Cable offers premium performance and reliability, making it the ideal choice for professional fiber optic installations. Order now and optimize your fiber network!
