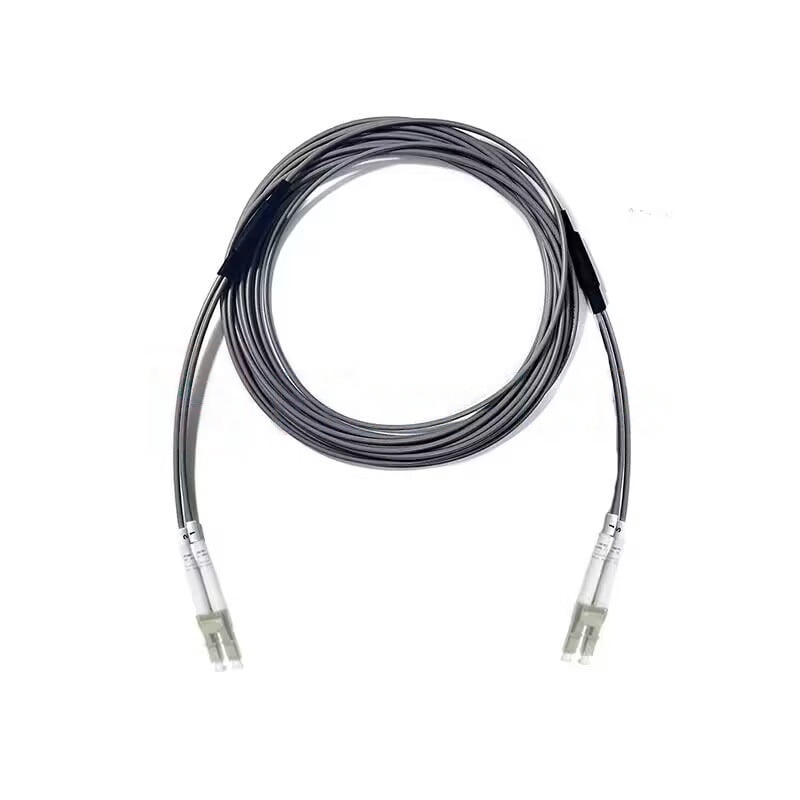

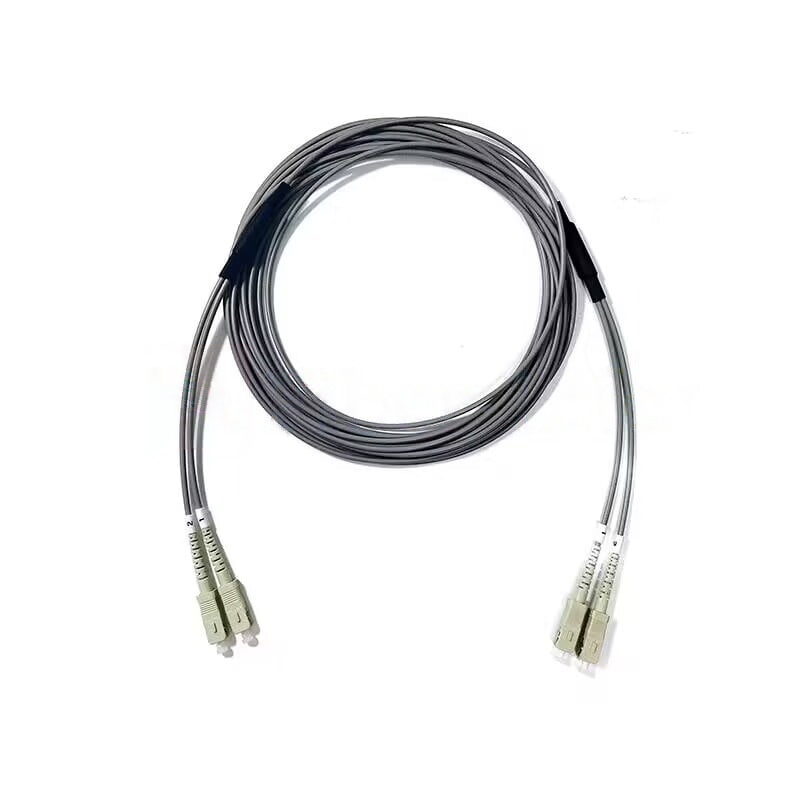

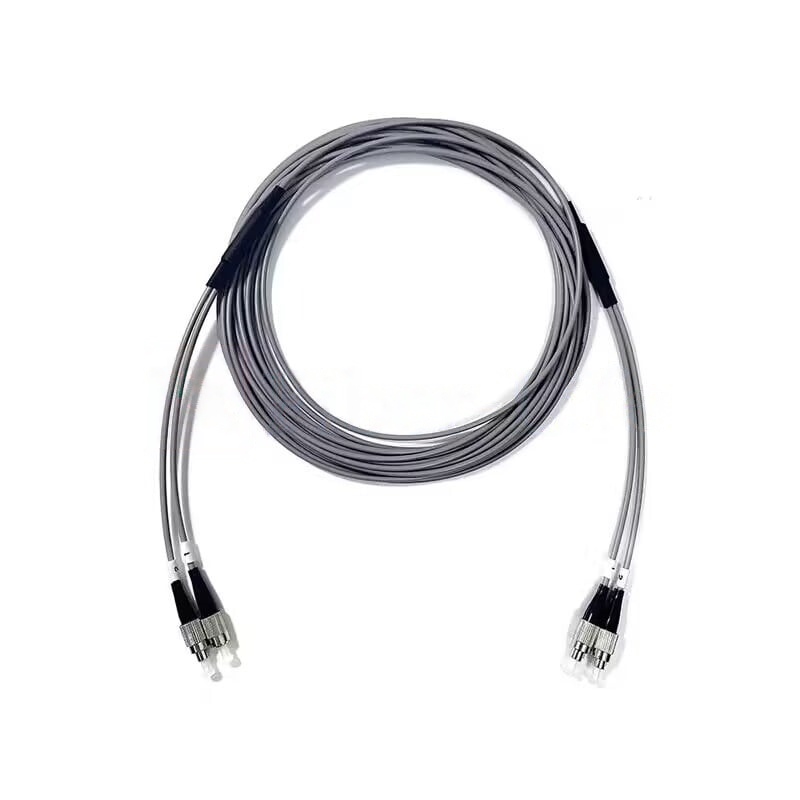

Armored OM1/OM2 Multimode Duplex LC/SC/FC/ST 3.0mm Fiber Optic Patch Cable

Armored OM1/OM2 Multimode Duplex LC/SC/FC/ST 3.0mm Fiber Optic Patch Cables are designed for short-distance, high-speed data transmission in multimode networks. With a durable armored layer for protection in harsh environments, these cables support OM1 (up to 1 Gb/s over 300 meters) and OM2 (up to 10 Gb/s over 550 meters) standards.

The duplex design allows for bidirectional data transmission, while the versatile connectors—LC, SC, FC, and ST—accommodate various installation needs. The 3.0mm diameter provides a balance of flexibility and durability, making them ideal for use in data centers, LANs, and other high-traffic environments.

Specifications

Features

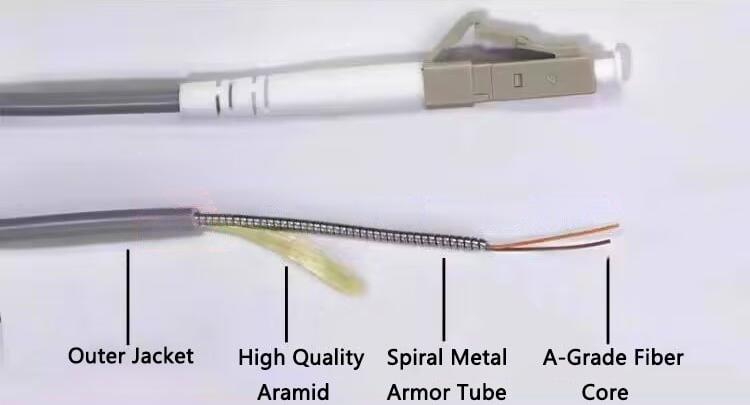

High-pressure Steel Wire Protection

Tubular metal steel wire ring effectively protects the inner fiber core from damage, and can also prevent mechanical damage such as trampling, breakage, and rat bites.

Note: The product display picture shows one tube with two cores.

High-precision Grinding Equipment

Ensures that the center grinding deviation of the optical fiber, the depression of the optical fiber, and the optical fiber surface are free of scratches or defects. The radius of curvature of the ceramic end and other parameters meet the standards.

End Face Detection

End face geometry test to ensure that the end face curvature radius, vertex offset, and fiber height meet the standards.

Attenuation Detection

Using new materials and high-standard production technology to make the insertion loss change <0.3dB Interchangeability.

Three Jacket Materials

The differences between OFNP, PVC, LSZH jackets.
