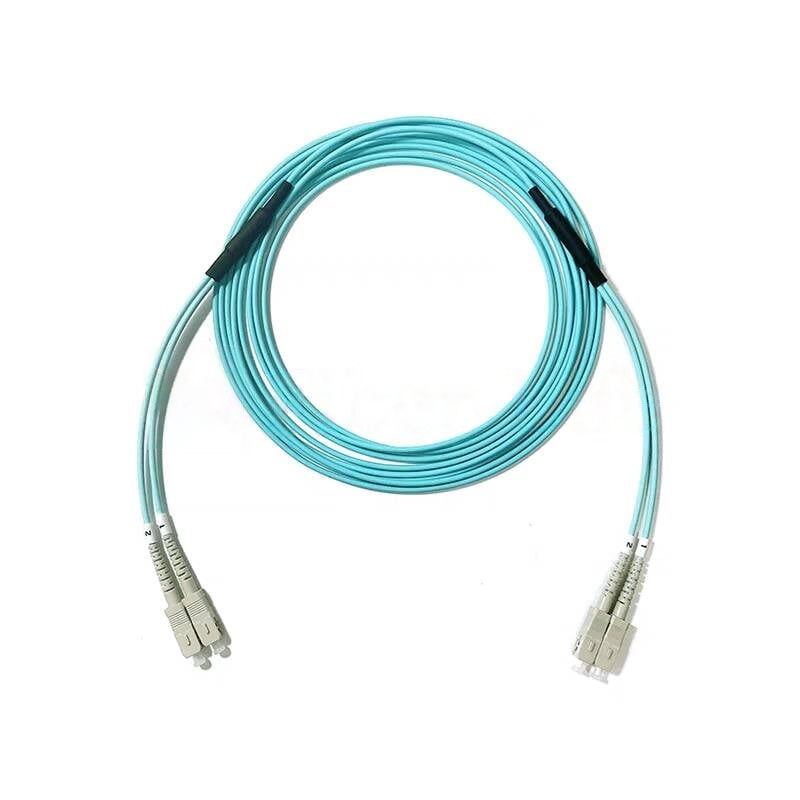

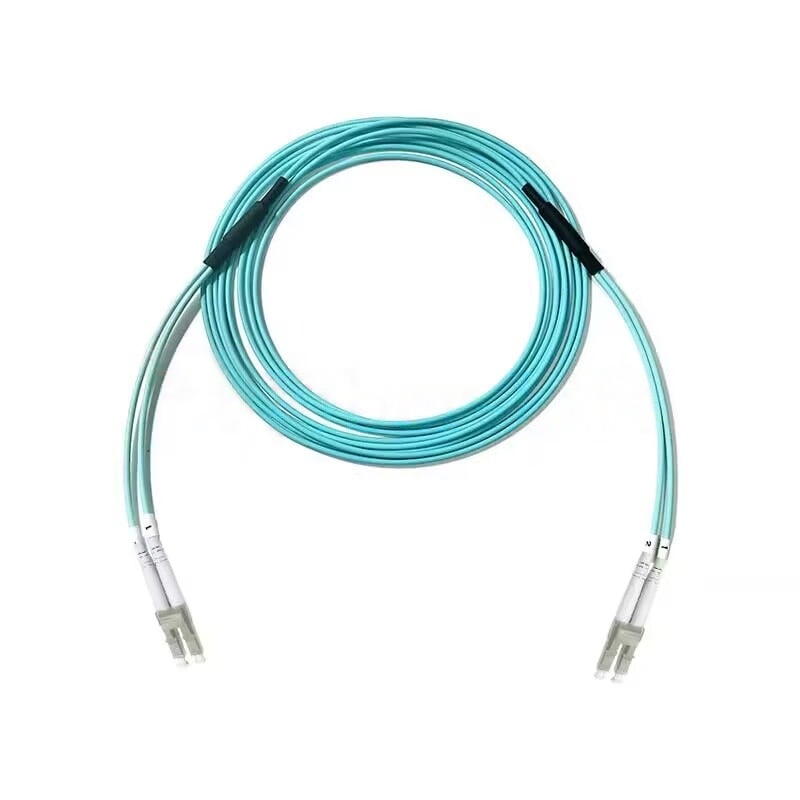

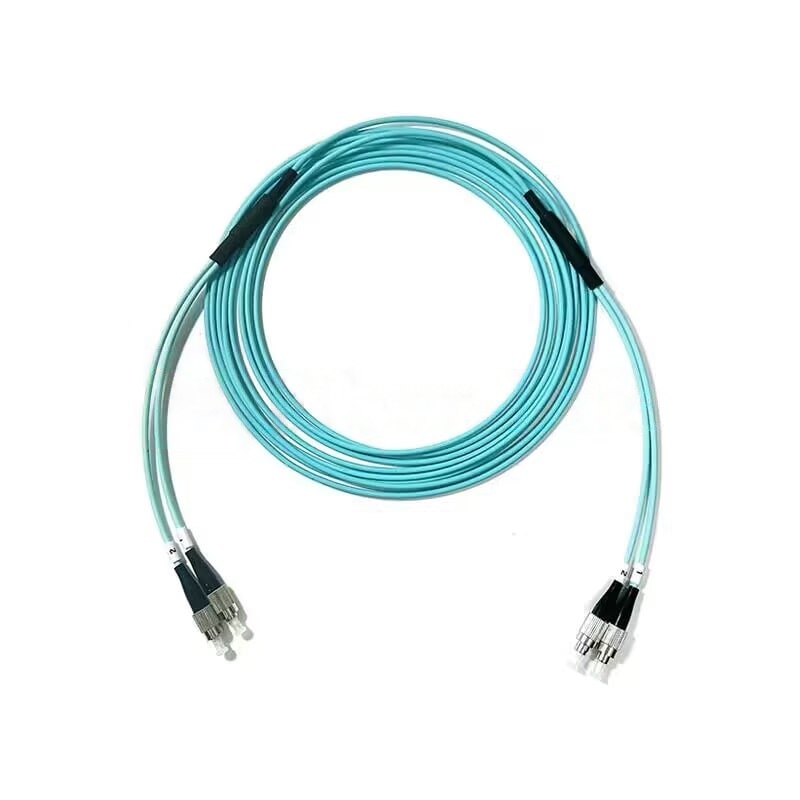

OM3 Multimode Duplex LC/SC/FC/ST 3.0mm Armored Fiber Optic Patch Cable

The OM3 Multimode Duplex LC/SC/FC/ST 3.0mm Armored Fiber Optic Patch Cable is a dual-core fiber optic jumper designed for high-bandwidth, multi-channel transmission, ideal for data centers, LANs, and high-density connections. Utilizing OM3 multimode fiber, it supports 10Gbps short-distance high-speed data transmission up to 100 meters and can reach 40Gbps and 100Gbps under specific conditions.

This duplex cable features dual-fiber construction for bidirectional data transfer and offers various connector options, including LC, SC, FC, and ST, to meet diverse network device needs. Its 3.0mm armored jacket enhances resistance to bending and abrasion, making it suitable for high-traffic and harsh environments. This patch cable is widely used in high-bandwidth settings requiring bidirectional transmission, such as data center cabling, server connections, and high-traffic network environments.

Specifications

Features

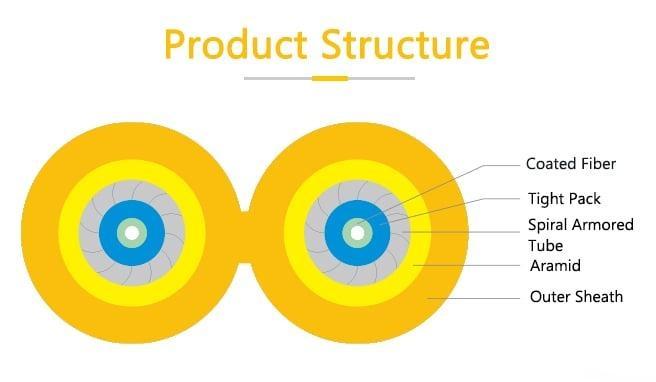

High-pressure Steel Wire Protection

Tubular metal steel wire ring effectively protects the inner fiber core from damage, and can also prevent mechanical damage such as trampling, breakage, and rat bites.

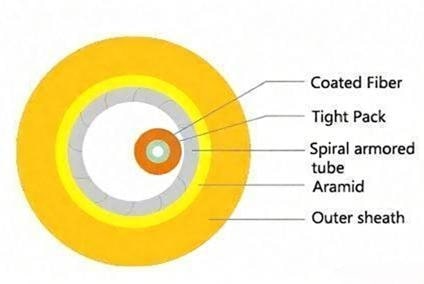

Note: The product display picture shows one tube with two cores.

High-precision Grinding Equipment

Ensures that the center grinding deviation of the optical fiber, the depression of the optical fiber, and the optical fiber surface are free of scratches or defects. The radius of curvature of the ceramic end and other parameters meet the standards.

End Face Detection

End face geometry test to ensure that the end face curvature radius, vertex offset, and fiber height meet the standards.

Attenuation Detection

Using new materials and high-standard production technology to make the insertion loss change <0.3dB Interchangeability.

Three Jacket Materials

The differences between OFNP, PVC, LSZH jackets.
