Armored OM1/OM2 Multimode Simplex LC/SC/FC/ST 3.0mm Fiber Optic Patch Cable

Armored OM1/OM2 Multimode Simplex LC/SC/FC/ST 3.0mm Fiber Optic Patch Cables are durable, high-performance cables designed for short-distance, high-speed data transmission in multimode fiber networks. Featuring an armored layer for added protection in harsh environments, these cables are available in OM1 (up to 1 Gb/s over 300 meters) and OM2 (up to 10 Gb/s over 550 meters) options.

The simplex design allows for one-way data transmission, while the connectors—LC for high-density setups, SC for reliability, FC for stability in vibration-prone areas, and ST for legacy systems—offer versatility. With a 3.0mm diameter, the cables are flexible and easy to install.

Specifications

Features

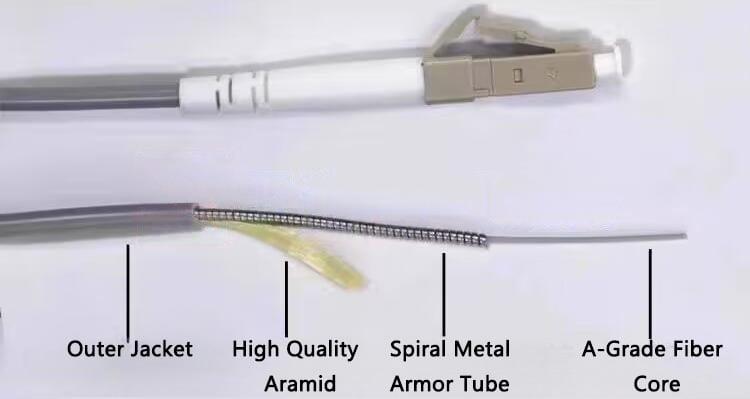

High-pressure Steel Wire Protection

Tubular metal steel wire ring effectively protects the inner fiber core from damage, and can also prevent mechanical damage such as trampling, breakage, and rat bites.

High-precision Grinding Equipment

Ensures that the center grinding deviation of the optical fiber, the depression of the optical fiber, and the optical fiber surface are free of scratches or defects. The radius of curvature of the ceramic end and other parameters meet the standards.

End Face Detection

End face geometry test to ensure that the end face curvature radius, vertex offset, and fiber height meet the standards.

Attenuation Detection

Using new materials and high-standard production technology to make the insertion loss change <0.3dB Interchangeability.

Three Jacket Materials

The differences between OFNP, PVC, LSZH jackets.
