OM3 Multimode MPO-24 Breakout Cable, Aqua
High-performance OM3 Multimode LC/SC/FC/ST to MPO-24 breakout cable for data centers, offering high bandwidth, low attenuation, and efficient fiber management in high-density networks.
$103.60

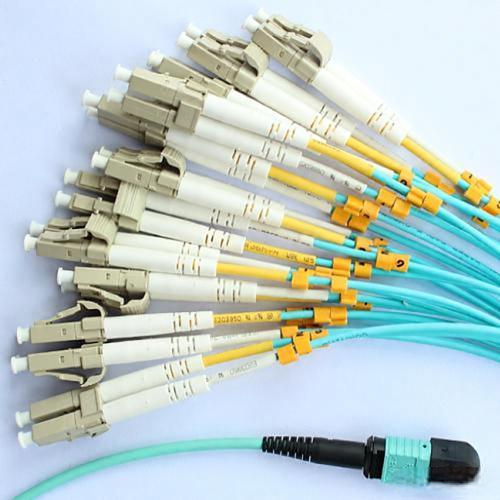

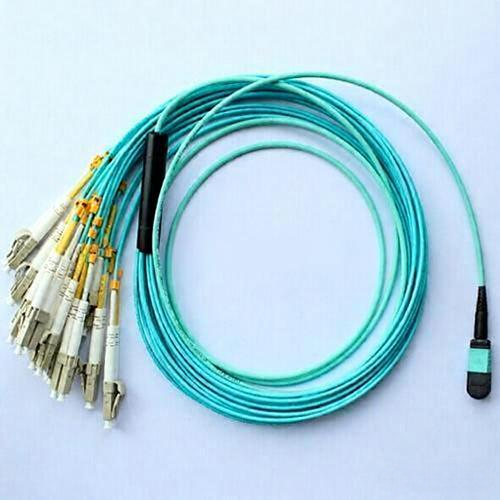

OM3 Multimode LC/SC/FC/ST To MPO-24 Breakout Cable, Aqua
The OM3 Multimode LC/SC/FC/ST to MPO-24 breakout cable is a high-performance multimode fiber patch cord designed for medium-distance transmission and high-density applications. Utilizing OM3 multimode fiber, it supports transmission speeds of 10G, 40G, and 100G with low attenuation, making it ideal for data centers and enterprise networks. One end features an MPO-24 connector with 24 fiber cores, while the other end breaks out into multiple connectors (LC, SC, FC, or ST) to accommodate various device interfaces.
This breakout design enables efficient cabling and flexible fiber management, making it perfect for high-performance computing (HPC), cloud environments, and scalable upgrades in modern fiber networks.
Specifications
| Connector A | MPO | Connector B | LC/SC/FC/ST |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Outside Diameter (OD) | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| MTP Connector IL | ≤0.35dB | LC/SC/FC/ST Connectors IL | ≤0.3dB |
| MTP Connector RL | ≥20dB | LC/SC/FC/ST Connectors RL | ≥35dB |
Feature
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
