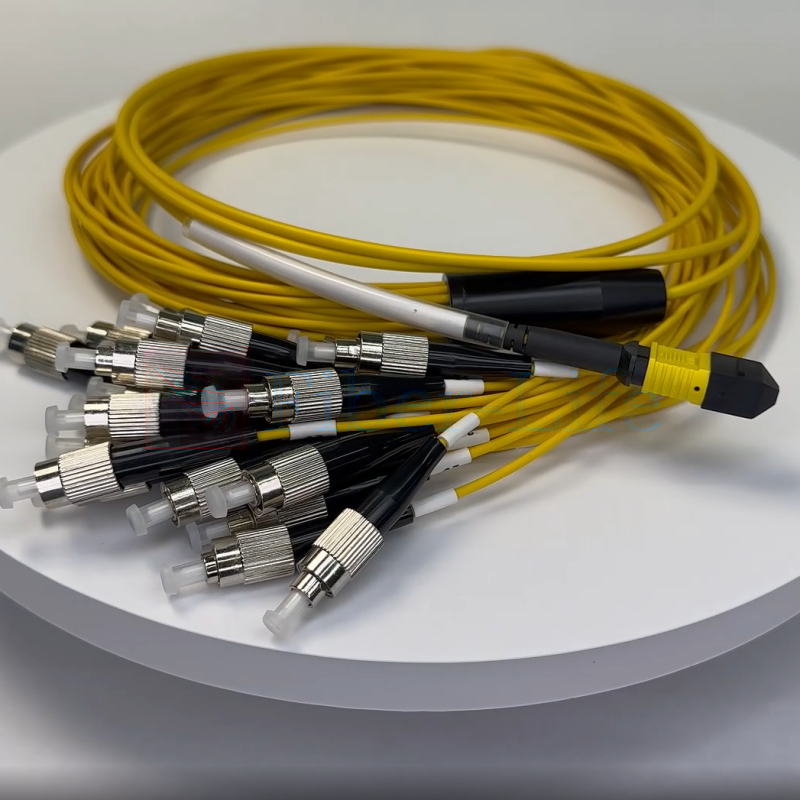

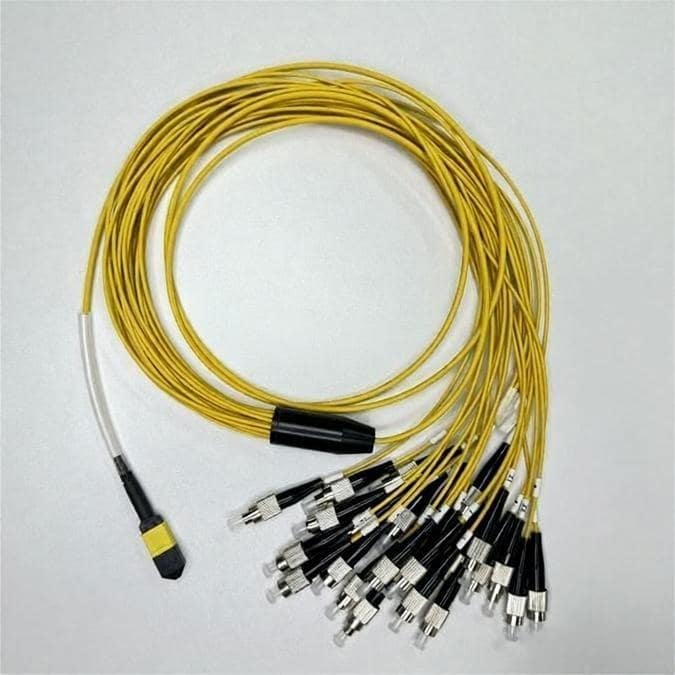

OS2 SingleMode MPO-24 Breakout Cable, Yellow
High-performance OS2 SingleMode LC/SC/FC/ST to MPO-24 breakout cable for data centers, offering low-attenuation, long-distance transmission, and efficient high-density fiber management.
$118.40
OS2 SingleMode LC/SC/FC/ST To MPO-24 Breakout Cable, Yellow
The OS2 SingleMode LC/SC/FC/ST to MPO-24 breakout cable is a high-performance single-mode fiber optic patch cord designed for long-distance transmission and high-density fiber networks. It uses OS2 fiber with low attenuation, ideal for 10G, 40G, 100G, and higher network applications, especially for long-range indoor and outdoor links. One end of the cable features an MPO-24 connector with 24 fiber cores, while the other end breaks out into multiple connectors (such as LC, SC, FC, or ST) to support various device interfaces.
This breakout design enables multiple single-mode signals to converge into a single MPO connector, providing flexible cabling and high-density fiber management, making it perfect for fast deployment, scalability, and upgrades in data centers, enterprise networks, and wide-area networks.
Specification
| Connector A | MPO | Connector B | LC/SC/FC/ST |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Glass Fiber | Corning SMF-28® Ultra(G.657.A1) | Minimum Bend Radius | 10mm |
| Trunk Diameter | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| MTP Connector IL | ≤0.35dB | LC/SC/FC/ST Connectors IL | ≤0.3dB |
| MTP Connector RL | ≥60dB(APC) ≥45dB(UPC) |
LC/SC/FC/ST Connectors RL | ≥60dB(APC) ≥50dB(UPC) |
Feature
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
