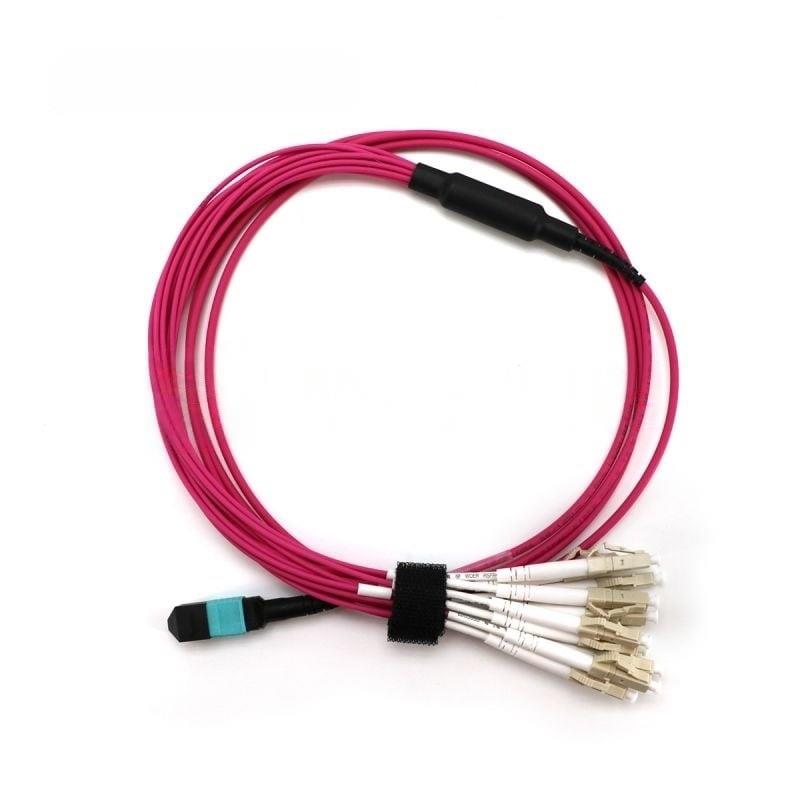

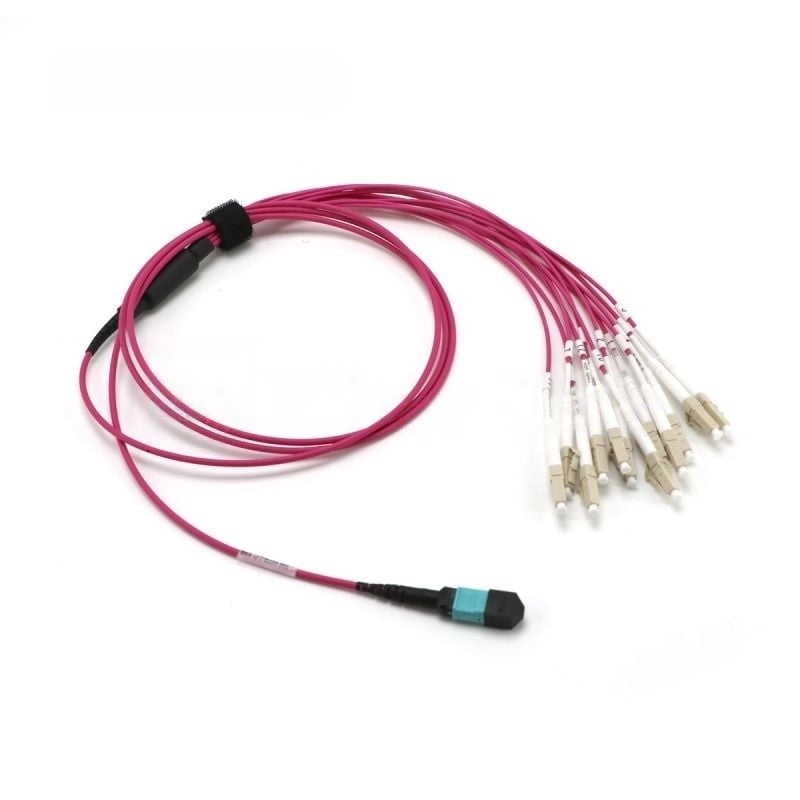

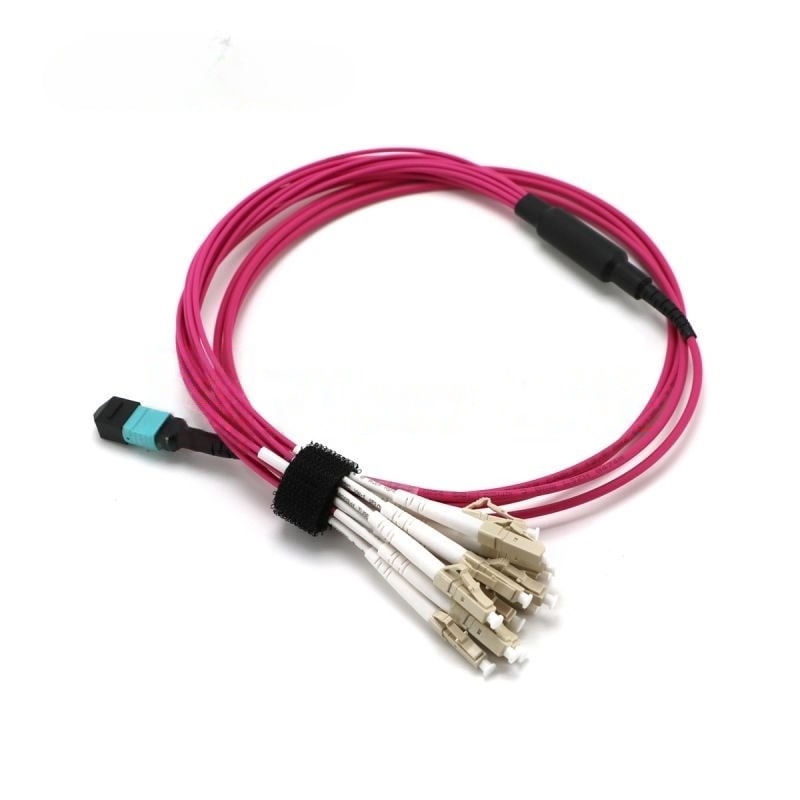

OM4 Multimode MPO-12 Breakout Cable, Magenta
The OM4 Multimode LC/SC/FC/ST to MPO-12 Breakout Cable offers high-speed, scalable connectivity for data centers and telecom networks, supporting up to 100Gbps with efficient fiber management.
$46.00
OM4 Multimode LC/SC/FC/ST To MPO-12 Breakout Cable, Magenta
The OM4 Multimode LC/SC/FC/ST to MPO-12 Breakout Cable is a high-performance fiber optic solution designed for high-speed, high-bandwidth applications in data centers, telecom networks, and enterprise environments. Featuring OM4 multimode fiber, it offers superior bandwidth (up to 4700 MHz·km at 850 nm) and supports transmission speeds up to 100Gbps over distances of up to 150 meters, making it ideal for demanding, high-density networks.
The cable includes LC, SC, FC, and ST connectors on individual fibers, while the MPO-12 connector consolidates 12 fibers into one compact interface for efficient fiber management. The breakout design allows the MPO-12 to split into separate fibers, simplifying installation, reducing cable clutter, and providing flexible, scalable connectivity for complex, high-speed network setups.
Specifications
| Connector A | MPO | Connector B | LC/SC/FC/ST |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Outside Diameter (OD) | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| MTP Connector IL | ≤0.35dB | LC/SC/FC/ST Connectors IL | ≤0.3dB |
| MTP Connector RL | ≥20dB | LC/SC/FC/ST Connectors RL | ≥35dB |
Features
12-Fiber Mini-Core Cable structure
MTP Hybrid Harnesses Fiber Patch Cables are terminated with MTP connector on one end and other end with LC, FC, SC, ST, or MTRJ connectors to meet a variety of fiber cabling requirements.
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
